5100 Series
Door Closers
ASSA ABLOY is transitioning the Yale Commercial brand to ACCENTRA. This affects only the brand name; the products and product numbers will remain unchanged. Prior to May 20, 2024, products may be shipped either as Yale Commercial brand or ACCENTRA brand. Products shipping after May 20, 2024, will be branded ACCENTRA.
applications
Yale® 5100 Series Door Closers are multi-feature closers whose compact design is ideal for application on interior doors. This narrow-stile closer has distinctive lines that harmonize with most decors. It is available with a full cover to provide an installation with compatible appearance to other door closers with covers. The Yale 5100 Series Door Closer offers an economical alternative for those installations where a heavy-duty closer is not warranted.
standard features
- • Tri-packed installation (regular arm, top jamb or parallel arm installation)
- • Non-handed
- • Aluminum alloy shell
- • Rack & pinion operation
- • Adjustable power
- • Adjustable closing speed
- • Adjustable latch speed
- • Non-hold open standard. Hold open optional.
| contents | |
|---|---|
| Introduction2 | |
| Features2 | |
| Finishes2 | |
| Suggested Specifications2 | |
| Accessories/Sizing Chart 3 | |
| Regular Arm Installation4 | |
| Top Jamb Installation5 | |
| Parallel Arm Installation6 | |
| How To Order7 |
optional features
- • Adjustable backcheck cushioning: independent regulating valve; order 5100BC Series.
- • Full molded cover: order 5100P Series.
U.L. listing
Yale 5100 Series Door Closers with non-hold open arms are listed by Underwriters' Laboratories, Inc. for use on labeled fire doors.
ANSI/federal specs
Yale 5100 Series Door Closers are ANSI/BHMA A156.4, Grade 2 certified.
suggested specifications
Closers for interior doors shall be full rack-and-pinion type with cast aluminum alloy shell. Closer shall be non-handed to permit installation on either hand of door. Closer to be supplied with brackets to allow regular arm, parallel arm or top jamb mounting. Closer to have non-critical valves to independently regulate sweep speed (and) latch speed (and backcheck cushioning). The forearm bracket shall permit a 15% power adjustment by rotating the forearm and bracket 180° at the door or frame. (Closer shall be enclosed in a molded full cover.) Closer to be Yale 5100/5100BC Series, 5100P/5100PBC Series.
finishes
|
Specify
BHMA Code |
Old
Designation |
Description |
|---|---|---|
| 600* | SRI |
Special Rust
Inhibitor (Prime-Beige) |
| 689 | SB | Aluminum |
| 690 | STAT |
Dark Statuary
Bronze |
| 691 | BL | Dull Bronze |
| 693 | 315 | Black |
| 694 | 312 | Medium Amber |
| 696 | GB | Gold |
*600 is a special rust inhibiting prime coat. Closers can be ordered prime coat only (specify closer x 600). An additional charge applies if finish coat is required over prime coat (ex: 5101 x 600 x 690).
accessories and sizing chart
drop plates
For narrow top rails, narrow frame faces, and top jamb hold open installations. Plates vary in size when the closer is ordered with or without a full molded cover. Order drop plates from the chart. Specify finish when ordered separately.
For drop plate requirements see Dimensional Information pages 4-6.
| Part Number | ||
|---|---|---|
| Type of | Closer | Closer |
| Installation | Without Cover | With Cover |
| Regular Arm | 5146 | 5156 |
| Top Jamb | 5146 | 5157 |
| Parallel Arm | 5148 | 5158 |
molded full cover
Molded of high-impact U.L. Listed material for completely enclosing the closer body, mounting screws and the unused pinion shaft. This cover is non-handed. It has two notches, one for clearance of the pinion shaft. An insert is included for insertion into the unused notch. Four molded catches engage the closer body for easy yet secure installation.
door sizing chart
| Model Number |
Interior Doors
Maximum Size Wood or Metal |
|||
|---|---|---|---|---|
| Type of Installation | ||||
| Non-Hold Open | Hold Open |
Regular Arm
Parallel Arm Top Jamb |
||
| 5101(BC) | 5111(BC) |
The 5101 closer (size 1) is intended for use on doors with a maximum clear opening
width of 2'8" (81cm) to provide less than 5.0 lbs. (22.2N) of door opening resistance. |
||
| 5102(BC) | 5112(BC) |
30"
30" (76cm) (76cm) |
30"
(76cm) |
|
| 5103(BC) | 5113(BC) |
36"
(91cm) |
32"
(81cm) |
36"
(91cm) |
| 5104(BC) | 5114(BC) |
42"
(107cm) |
36"
(91cm) |
42"
(107cm) |

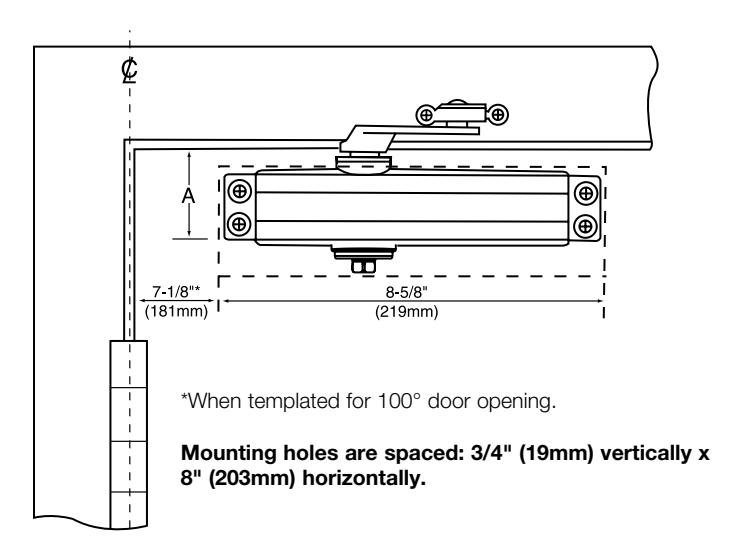

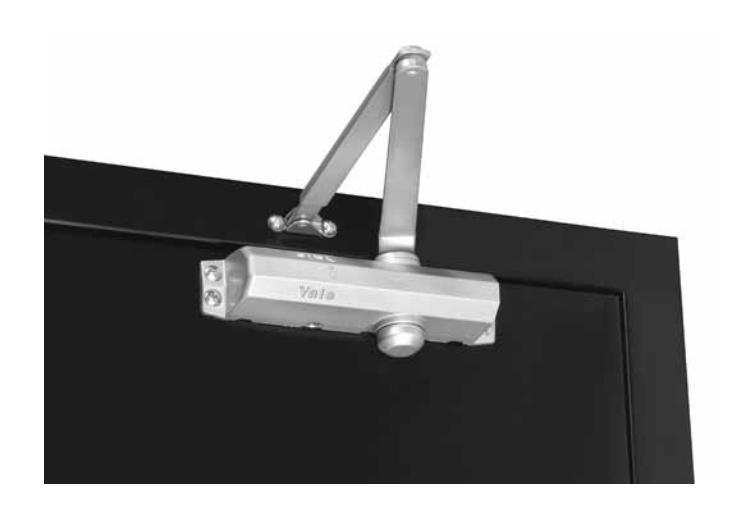

regular arm
Closer mounts on door; Arm bracket on frame face.

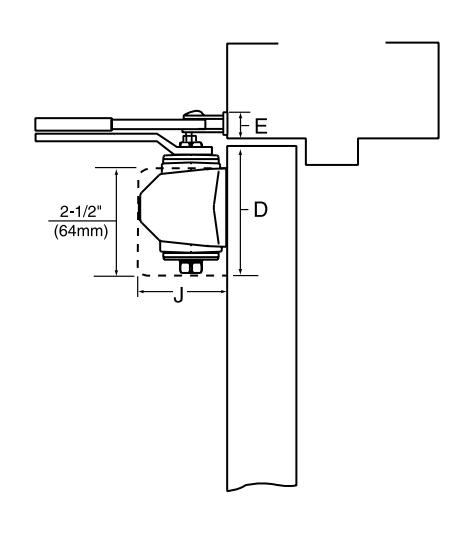

dimensional information
|
A
Minimum Top Rail |
D E Minimum Ceiling | J | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Without [ | Orop Plate |
46/5156
Plate |
Clearance |
Clearance Without
Drop Plate |
Closer Projection | ||||
|
Non-Hold
Open |
Hold Open |
Non-Hold
Open |
Hold Open |
Non-Hold
Open |
Hold Open |
Non-Hold
Open |
Hold Open |
Without
Cover |
With Cover |
|
2"
mm) |
1
/4"
mm) |
3"
(76mm) |
2-7/8"
(73mm) |
1"
(25mm) |
1-3/8"
(35mm) |
1-15/16"
(49mm) |
2-1/16"
(52mm) |
||

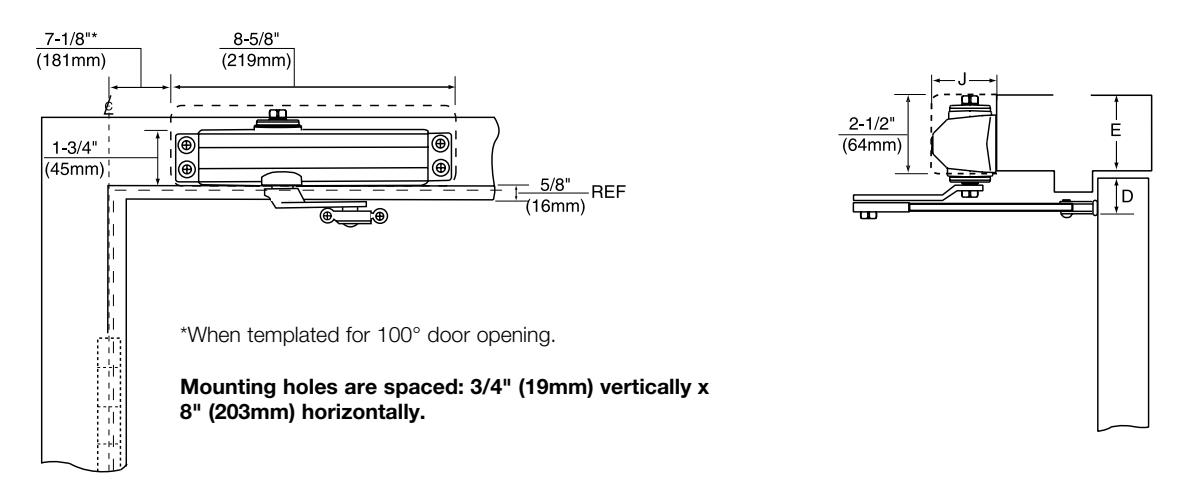

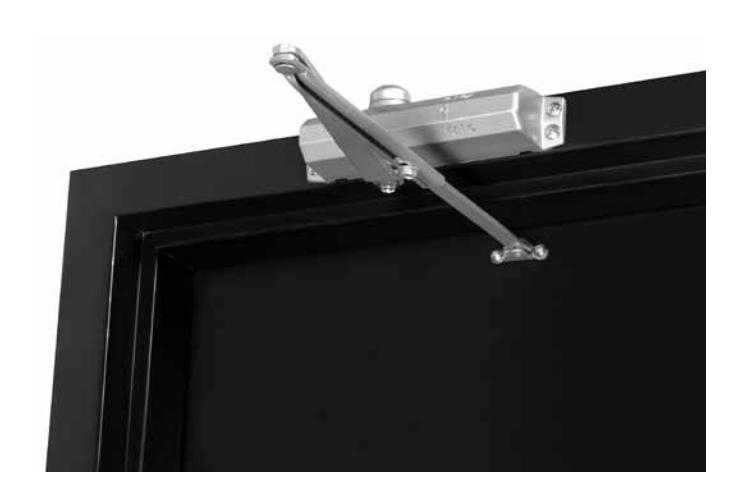

top jamb
Closer mounts on frame face; Arm bracket on door top rail.
dimensional information
|
D
Minimum Top Rail 5/8" (16mm) Frame Stop |
_ | J | ||||||
|---|---|---|---|---|---|---|---|---|
|
With 5146/5157
Drop Plate |
Orop Plate | With 5146/51 | 57 Drop Plate | Closer P | Projection | |||
|
Non-Hold
Open |
Non-Hold
Open |
Hold Open |
Non-Hold
Open |
Hold Open |
Non-Hold
Open |
Hold Open |
Without
Cover |
With Cover |
|
1-1/4"
(32mm) |
2-1/4"
(57mm) |
2-5/8"
(67mm) |
2-1/2"
(64mm) |
N/A** |
3/4"
mm) |
1-15/16"
(49mm) |
2-1/16"
(52mm) |
|
reveal information
TJ5100 Series non-hold open closers and TJ5110 Series hold open closers accommodate frame reveals from 4-7/8" to 6-7/8" (124 to 175mm). These closers are not supplied tri-packed.
** The standard 5100 Series non-hold open closers and 5110 Series hold open closers (Top Jamb mount) accommodate frame reveals for 0" to 4-7/8" (0 to 124mm).

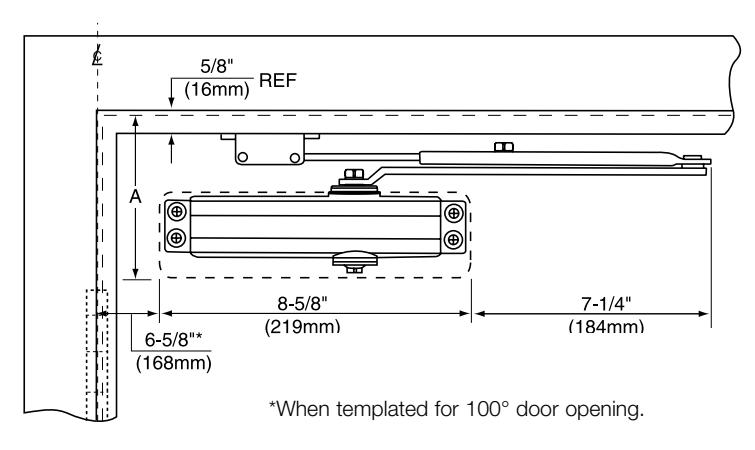

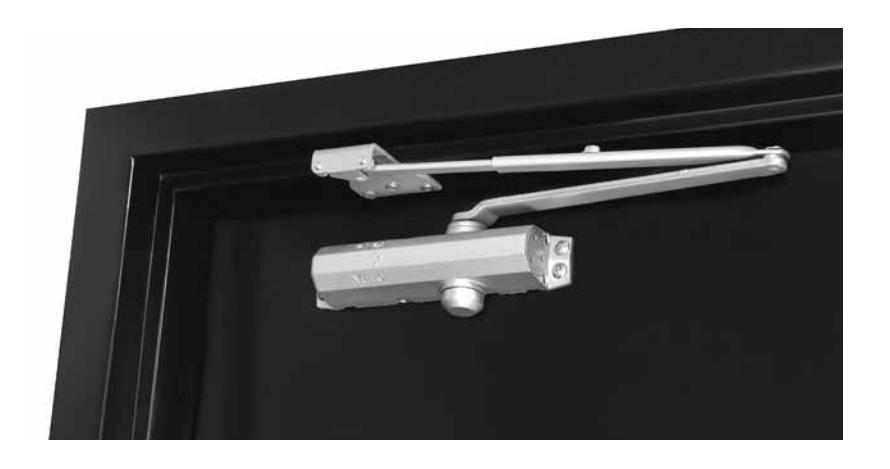

parallel arm
Closer mounts on door; Bracket on frame soffit.
Mounting holes are spaced: 3/4" (19mm) vertically x 8" (203mm) horizontally.
dimensional information
| A Minimum Top Rail 5/8" (16mm) Frame Stop | J | ||||||
|---|---|---|---|---|---|---|---|
| Without I | Orop Plate |
With 5148/5158
Drop Plate |
Minimum Top Rail Clearance | Closer Projection | |||
|
Non-Hold
Open |
Hold Open |
Non-Hold
Open |
Hold Open |
Non-Hold
Open |
Hold Open | Without Cover | With Cover |
|
4"
(102mm) |
4-1/4"
(108mm) |
2-1/4"
(57mm) |
4-3/4"
(121mm) |
5"
(127mm) |
1-15/16"
(49mm) |
2-1/16"
(52mm) |
|
how to order
ordering information
| TJ | 51 | 1 | 2 | P | x Finish |
|---|---|---|---|---|---|
| Application Prefix: |
Basic 5100 Series
Closer |
Function: | Size: | Suffixes: |
See
page 2 |
| None - Closer installs regular | "0" - Standard non | This digit specifies | "BC" - Backcheck | ||
|
arm, parallel arm or top jamb 0"
to 4-7/8" (0 to 124mm) reveals |
hold open arm |
closer size. See page
3 for sizing chart. |
cushioning | ||
| "1" - Hold open arm | "P" - Molded full | ||||
|
TJ - Top jamb closer 4-7/8" to
6-7/8" (124 to 175mm) reveals |
cover | ||||
| Screw Packs | |||||
|---|---|---|---|---|---|
| Part Number | Description | ||||
| SN-134 | Sex nuts only, 1-3/4" door | ||||
| SNB134-38 | Sex nuts and bolts, 1-3/4" door | ||||
| TBGN134-38 | Through-bolts and grommet nuts, 1-3/4" door | ||||
| Arm Packages & Parts | ||||
|---|---|---|---|---|
|
Part Number
Description |
||||
| 5100-1 | Arm assembly, non-hold open | |||
| 5100-3 | Arm assembly, hold open | |||
| 5188 | Parallel arm adaptor plate, hold open | |||
| 5189 | Parallel arm bracket | |||
| Closer Body Only | ||||
|---|---|---|---|---|
|
Part Number
Description |
||||
| 510XBCLAP | 5100BC door closer | |||
| Cover Package | ||||
|---|---|---|---|---|
|
Part Number
Description |
||||
| 5100P | Cover | |||
Note: Contact factory if door weight exceeds 250 lbs.
