ASSA ABLOY ACCENTRA 51 Series (TJ)51, (TJ)151 Door Closer Top Jamb Non-Hold or Hold Open Arm_7350-1160

Copyright @ 2001, 2023, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

www.accentra-assaabloy.com

Experience a safer and more open world

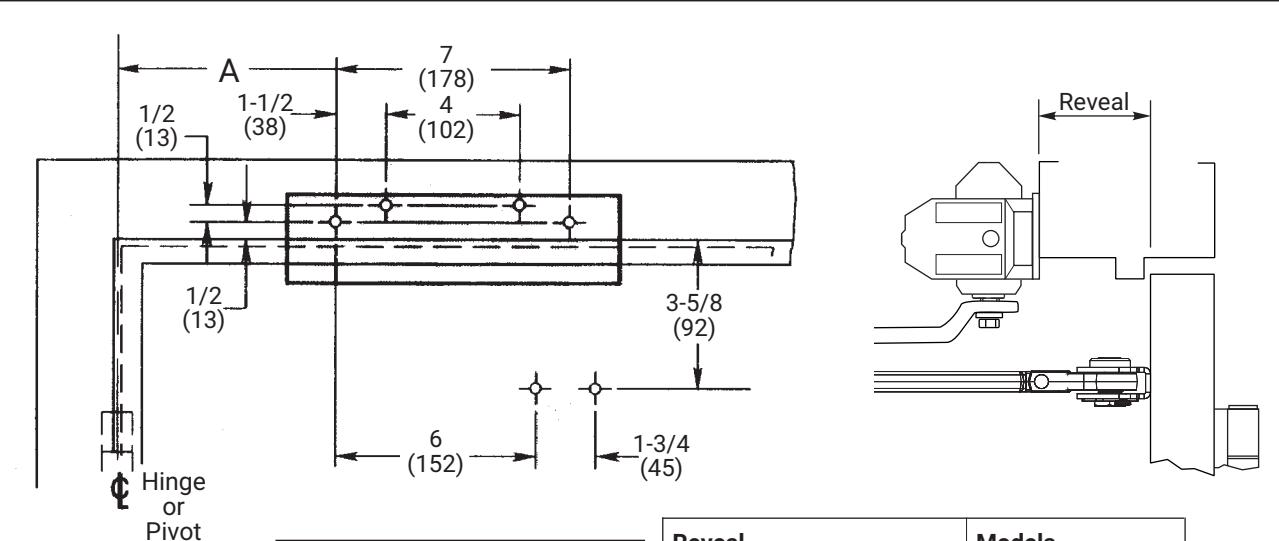

Opening	Dimension "A"
To 100°	8 (203)
101° to 120°	6-1/2 (165)
121° to 180°	4 (102)

Reveal	Models
0 to 3 (0 to 76)	51
2-7/8 to 7 (73 to 178)	TJ51
0 to 2-3/4 (0 to 70)	151
2-3/4 to 6-3/4 (70 to 171)	TJ151

NOTES:

• 1. Do not scale drawing.
• 2. Left hand door shown.
• 3. Dimensions given in inches (millimeters).
• 4. Door swing may be limited by door, frame, wall or hardware conditions.
• 5. Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified.
• 6. Sleeve nuts and bolts may be required for wood or plastic faced fire door mounting.
• 7. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
• 8. Hold open arm door closers are not permitted for use on fire rated doors.

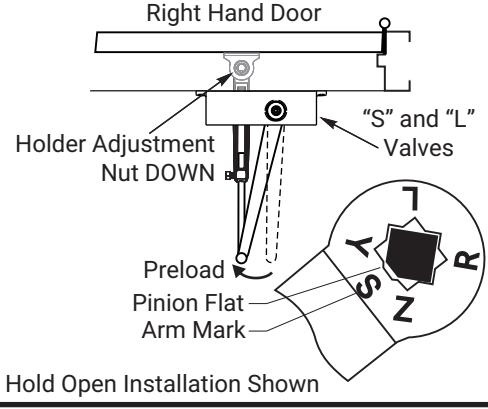

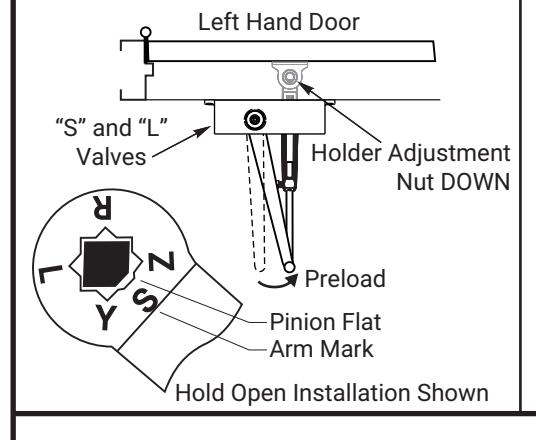

Position of Arm and Pinion Flat

Fastener	Door or Frame	Drill
#14 type "A" sheet metal screw	wood	7/32" (5.5mm)
1/4-20 machine screw	metal	#7 (.201" dia.) or 5.10mm drill 1/4"-20 tap
SNB (optional)	hollow-metal	9/32" (7.00mm) thru 3/8" (9.50mm) door face opposite to closer
	aluminum or wood	3/8" (9.50mm) thru
TBGN (optional)	all	9-32" (7.00mm) thru 3/8" (9.50mm) diameter x 3/8" (10mm) deep, door face opposite to closer

50 Series Door Closers Models (TJ)51 and (TJ)151 with 214 Drop Plate Top Jamb Application, Non-Hold Open or Hold Open Multi-size Unit 1-6

ACCENTRA ASSA ABLOY

05/24

TEMPLATE NUMBER	REV	D
7350-1160	3
