ASSA ABLOY ACCENTRA 51 Series (TJ)51, (TJ)151 Door Closer Top Jamb Non-Hold or Hold Open Arm_7350-1158
Open the original PDF document
View PDF

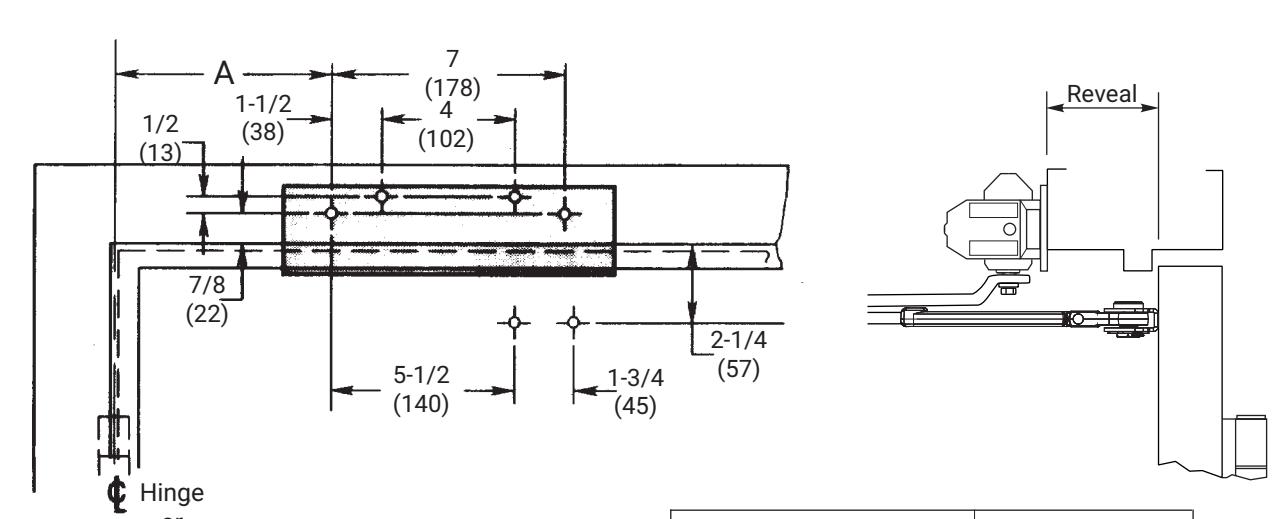

| Dav | |
|---|---|
| Dimension "A" | Rev |
| _8_ | 0 to |
| (203) | 3 to |
| 6-1/2 | |
| (165) | 0 to |
| 4 (100) | 2-1/ |
| (102) |
| Reveal | Models |
|---|---|
| 0 to 3 (0 to 76) | 51 |
| 3 to 7 (76 to 178) | TJ51 |
| 0 to 2-1/4 (0 to 57) | 151 |
| 2-1/4 to 5 (57 to 127) | TJ151 |
NOTES:
- 1. Do not scale drawing.
- 2. Left hand door shown.
- 3. Dimensions given in inches (millimeters).
- Door swing may be limited by door, frame, wall or hardware conditions.
- Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified.
- 6. Sleeve nuts and bolts may be required for wood or plastic faced fire door mounting.
- Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
- 8. Hold open arm door closers are not permitted for use on fire rated doors.

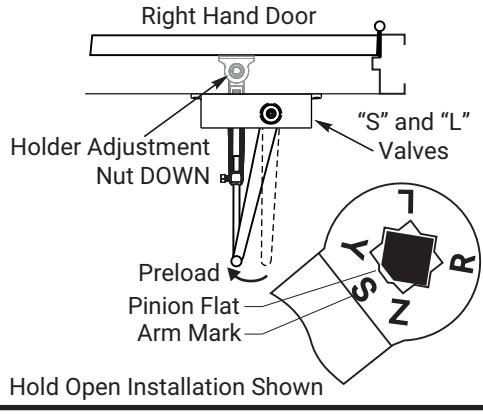

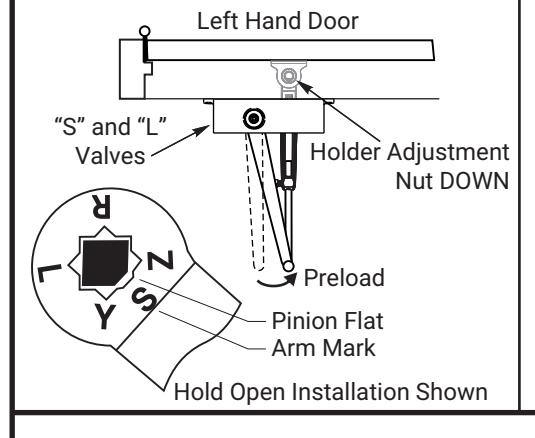

Position of Arm and Pinion Flat
Opening To 100°
101° to 120°
121° to 180°
Pivot
| Fastener | Door or Frame | Drill |
|---|---|---|
| #14 type "A" sheet metal screw | wood | 7/32" (5.5mm) |
| 1/4-20 machine screw | metal |
#7 (.201" dia.) or 5.10mm drill
1/4"-20 tap |
|
SNB
(optional) |
hollow-metal |
9/32" (7.00mm) thru
3/8" (9.50mm) door face opposite to closer |
| aluminum or wood | 3/8" (9.50mm) thru | |
|
TBGN
(optional) |
all |
9-32" (7.00mm) thru
3/8" (9.50mm) diameter x 3/8" (10mm) deep, door face opposite to closer |
50 Series Door Closers Models (TJ)51 and (TJ)151 with 587 Drop Plate Top Jamb Application, Non-Hold Open or Hold Open Multi-size Unit 1-6
ACCENTRA ASSA ABLOY
TEMPLATE NUMBER REV DATE 7350-1158 3 05/24
