ASSA ABLOY ACCENTRA 51 Series (TJ)51, (TJ)151 Door Closer Top Jamb Non-Hold or Hold Open Arm Multi_7350-1152

T.J51

151

TJ151

NOTES:

• 1. Do not scale drawing.
• 2. Left hand door shown.
• 3. Dimensions given in inches (millimeters).
• 4. Door swing may be limited by door, frame, wall or hardware conditions
• 5. Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified.
• 6. Sleeve nuts and bolts may be required for wood or plastic faced fire door mounting.
• 7. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
• 8. Hold open arm door closers are not permitted for use on fire rated doors.

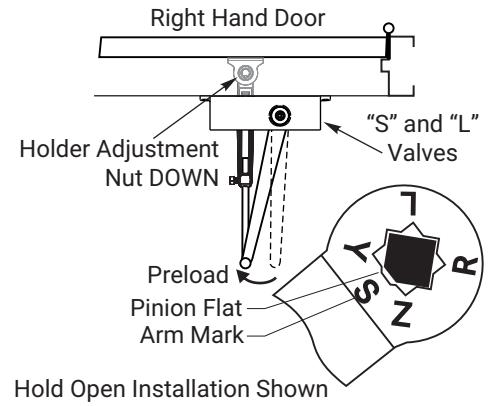

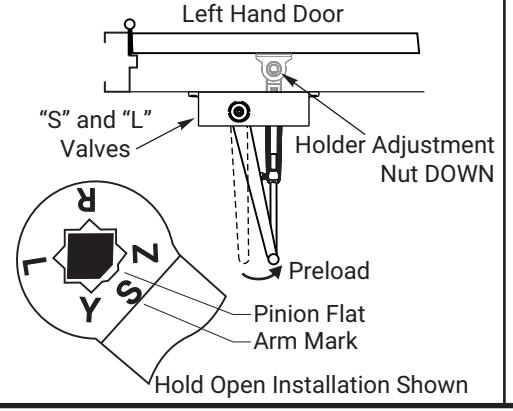

Position of Arm and Pinion Flat

To 100°

101° to 120°

121° to 180°

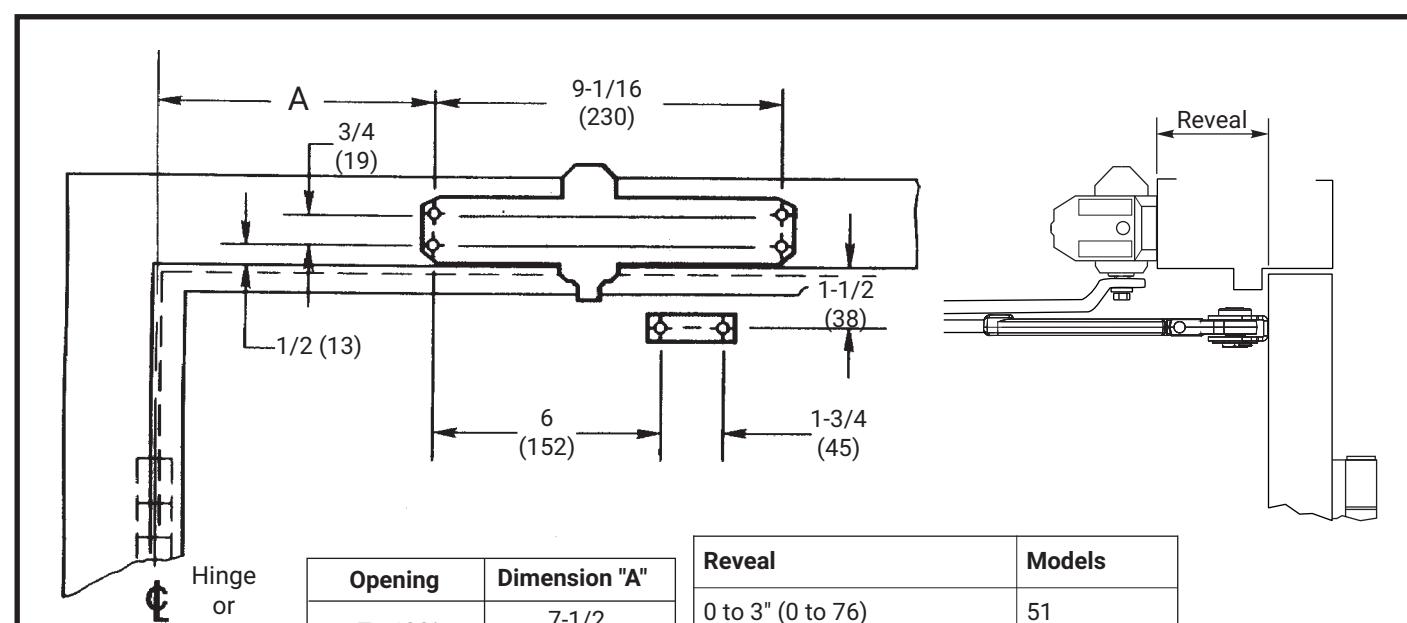

7-1/2

(191)

(152)

3-1/2

(89)

Pivot

2-7/8" to 7" (73 to 178)

2-3/4" to 6-3/4" (70 to 171)

0 to 2-3/4" (0 to 70)

Fastener	Door or Frame	Drill
#14 type "A" sheet metal screw	wood	7/32" (5.5mm)
1/4-20 machine screw	metal	#7 (.201" dia.) or 5.10mm drill 1/4"-20 tap
SNB (optional)	hollow-metal	9/32" (7.00mm) thru 3/8" (9.50mm) door face opposite to closer
	aluminum or wood	3/8" (9.50mm) thru
TBGN (optional)	all	9-32" (7.00mm) thru 3/8" (9.50mm) diameter x 3/8" (10mm) deep, door face opposite to closer

50 Series Door Closers Models (TJ)51 and (TJ)151 Top Jamb Application, Non-Hold Open or Hold Open Multi-size Unit 1-6

ACCENTRA ASSA ABLOY

TEMPLATE NUMBER 7350-1152

05/24
