ASSA ABLOY ACCENTRA 51 Series (PA)51, (PA)151 Door Closer Parallel Non-Hold or Hold Open Arm_7350-1208
Open the original PDF document
View PDF
NOTES:
- 1. Do not scale drawing.
- 2. Left hand door shown.
- 3. Dimensions given in inches (millimeters).
- 4. Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified.
- SNB required to mount closer on steel covered composite type, sheet metal type, or hollow-metal type fire doors provided without reinforcements.
- SNB or TBGN may be required to mount closer on wood or plastic faced composite type fire doors.
- 7. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
- 8. Hold open arm door closers are not permitted for use on fire rated doors.
| Opening | Dim. "A" | Dim. "B" | Dim. "C" |
|---|---|---|---|
| To 100° | 9-3/8 | 7-5/8 | 8-5/8 |
| (238) | (194) | (219) | |
| 101° to 130° | 7 -7/8 | 6-1/8 | 7-1/8 |
| (200) | (156) | (181) | |
| 131° to 180° | 5-7/8 | 4-1/8 | 5-1/8 |
| (149) | (105) | (130) |
Pivot
| PREPARATION FOR FASTENERS | |||
|---|---|---|---|
| Fastener | Door or Frame | Drill | |
| #14 type "A" sheet metal screw | wood | 7/32" (5.5mm) | |
| 1/4-20 machine screw | metal |
#7 (.201" dia.) or 5.10mm drill
1/4"-20 tap |
|
|
SNB
(optional) |
hallow-metal |
9/32" (7.00mm) thru
3/8" (9.50mm) door face opposite to closer |
|
| aluminum or wood | 3/8" (9.50mm) thru | ||
|
TBGN
(optional) |
all |
9-32" (7.00mm) thru
3/8" (9.50mm) diameter x 3/8" (10mm) deep, door face opposite to closer |
|

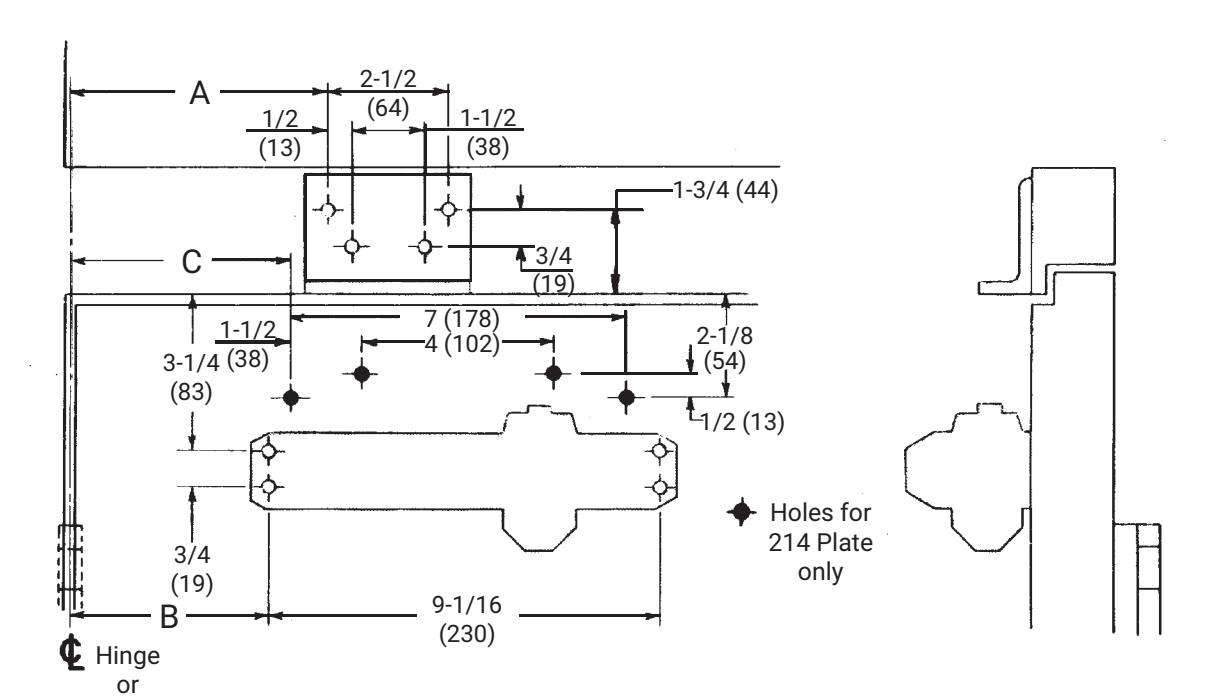

50 Series Door Closers Models (PA)51 and (PA)151 With or Without 214 Drop Plate Parallel Arm Application with 589L Flush Transom Bracket, Non-Hold Open or Hold Open Multi-size Unit 1-6
ACCENTRA ASSA ABLOY
TEMPLATE NUMBER 7350-1208
REV DATE 3 05/24
