ASSA ABLOY ACCENTRA 51 Series (PA)51, (PA)151 Door Closer Parallel Non-Hold or Hold Open Arm_7350-1202

Copyright @ 1999, 2023, 2024, ASSA ABLOY ACCENTRAT Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

www.accentra-assaabloy.com

Experience a safer and more open world

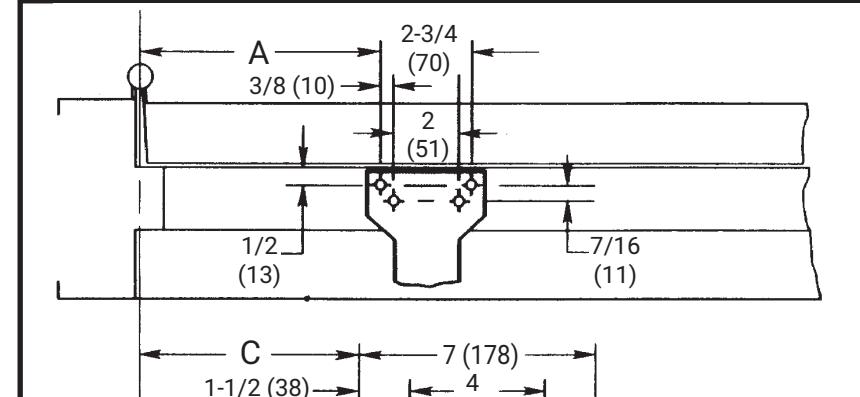

Opening	Dim. "A"	Dim. "B"	Dim. "C"
To 100°	9-1/4	7-5/8	8-5/8
	(235)	(194)	(219)
101° to 130°	7 -3/4	6-1/8	7-1/8
	(197)	(156)	(181)
131° to 180°	5-3/4	4-1/8	5-1/8
	(146)	(105)	(130)

NOTES:

• 1. Do not scale drawing.

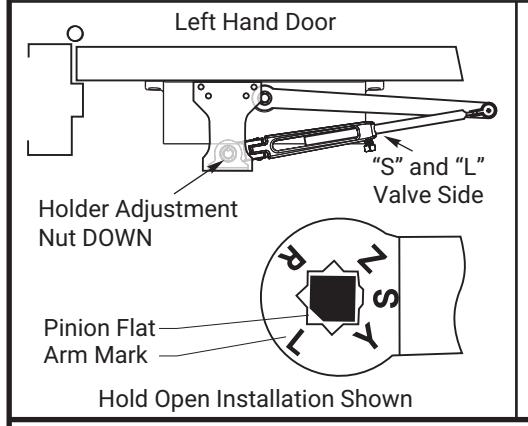

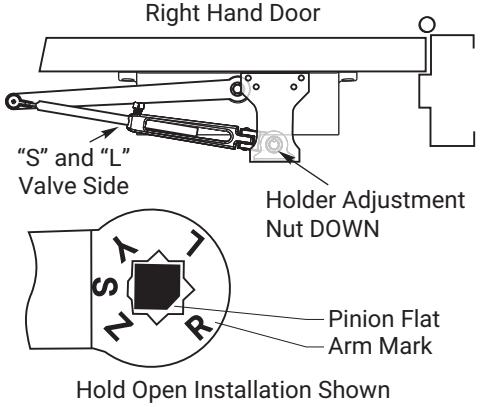

• 2. Left hand door shown.
• 3. Dimensions given in inches (millimeters).
• 4. Door swing may be limited by door, frame, wall or hardware conditions
• 5. Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified.
• 6. Sleeve nuts and bolts may be required for wood or plastic faced fire door mounting.
• 7. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
• 8. Hold open arm door closers are not permitted for use on fire rated doors.

(230)

3-1/4

(83)

or Pivot

2-1/8

(54)

1/2 (13)

only

Holes for 214 Plate

Door or Frame	Drill
wood	7/32" (5.5mm)
metal	#7 (.201" dia.) or 5.10mm drill 1/4"-20 tap
hollow-metal	9/32" (7.00mm) thru 3/8" (9.50mm) door face opposite to closer
aluminum or wood	3/8" (9.50mm) thru
all	9-32" (7.00mm) thru 3/8" (9.50mm) diameter x 3/8" (10mm) deep, door face opposite to closer
	wood metal hollow-metal aluminum or wood

50 Series Door Closers Models (PA)51 and (PA)151 With or Without 214 Drop Plate Parallel Arm Application, Non-Hold Open or Hold Open Multi-size Unit 1-6

ACCENTRA ASSA ABLOY

TEMPLATE NUMBER 7350-1202 05/24
