ASSA ABLOY ACCENTRA 51 Series (PA)51 Door Closer Parallel Non-Hold Open Arm with 299 Plate_7350-1216
Open the original PDF document
View PDFCopyright © 1998, 2023, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. www.accentra-assaabloy.com
NOTES:
- 1. Do not scale drawing.
- 2. Left hand door shown.
- 3. Dimensions given in inches (millimeters).
- 4. Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified.
- 5. SNB required to mount closer on steel covered composite type, sheet metal type, or hollow-metal type fire doors provided without reinforcements.
- 6. SNB or TBGN may be required to mount closer on wood or plastic faced composite type fire doors.
- 7. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
| Opening | Dim. "A" | Dim. "B" | Dim. "C" |
|---|---|---|---|
| To 100° | 9-1/4 | 7-5/8 | 8-5/8 |
| (235) | (194) | (219) | |
| 101° to 130° | 7-3/4 | 6-1/8 | 7-1/8 |
| (197) | (156) | (181) | |
| 131° to 180° | 5-3/4 | 4-1/8 | 5-1/8 |
| (146) | (105) | (130) |
| PREPARATION FOR FASTENERS | |||
|---|---|---|---|
| Fastener | Door or Frame | Drill | |
| #14 type "A" sheet metal screw | wood | 7/32" (5.5mm) | |
| 1/4-20 machine screw | metal |
#7 (.201" dia.) or 5.10mm drill
1/4"-20 tap |
|
|
SNB
(optional) |
hollow-metal |
9/32" (7.00mm) thru
3/8" (9.50mm) door face opposite to closer |
|
| aluminum or wood | 3/8" (9.50mm) thru | ||
|
TBGN
(optional) |
all |
9-32" (7.00mm) thru
3/8" (9.50mm) diameter x 3/8" (10mm) deep, door face opposite to closer |
|

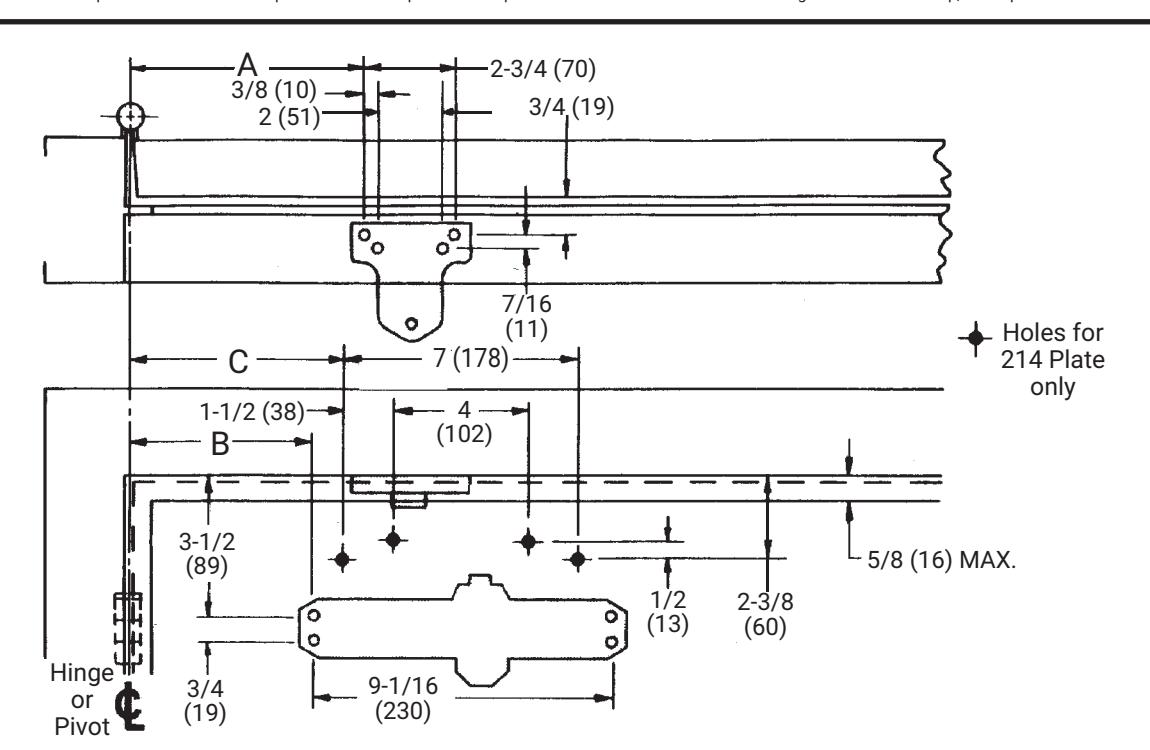

50 Series Door Closers Model (PA)51 with or without 214 Drop Plate Parallel Arm Application with 299 Soffit Plate, Non-Hold Open Multi-size Unit 1-6 TEMPLATE NUMBER REV DATE
7350-1216 3 05/24
