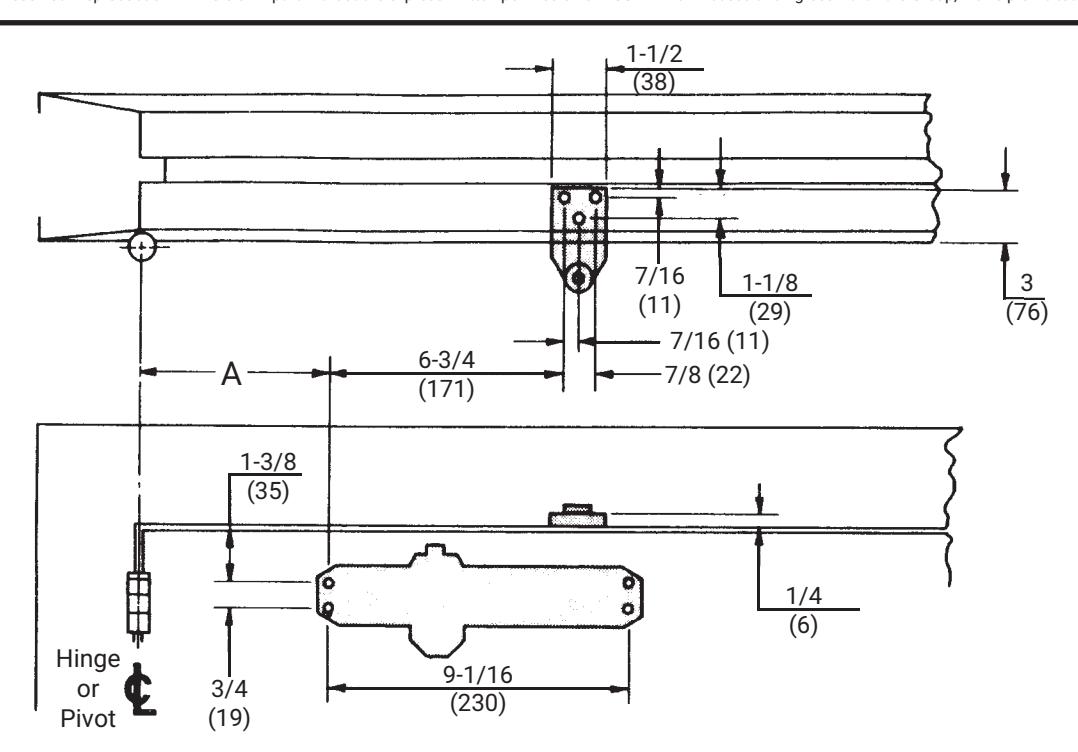

NOTES:
- 1. Do not scale drawing.
- 2. Right hand door shown.
- 3. Dimensions given in inches (millimeters).
- 4. Minimum recommended for hollow-metal door and frame reinforcements: .1046" (2.7mm)
- 5. Hollow metal doors require channel or box type reinforcement when TGBN mount is specified for closers.
- 6. SNB required to mount closer on steel covered composite type, sheet metal type, or hollow-metal type fire doors provided without reinforcements.
- 7. SNB or TBGN may be required to mount closer on wood or plastic faced composite type fire doors.
| Opening | Dimension "A" |
|---|---|
| To 100° | 7 (178) |
| 101° to 120° | 6 (152) |
| 120° to 180° | 3-1/2 (89) |
| PREPARATION FOR FASTENERS | ||
|---|---|---|
| Fastener | Door or Frame | Drill |
| #14 type "A" sheet metal screw | wood | 7/32" (5.5mm) |
| 1/4-20 machine screw | metal |
#7 (.201" dia.) or 5.10mm drill
1/4"-20 tap |
|
SNB
(optional) |
hollow-metal |
9/32" (7.00mm) thru
3/8" (9.50mm) door face opposite to closer |
| aluminum or wood | 3/8" (9.50mm) thru | |
|
TBGN
(optional) |
all |
9-32" (7.00mm) thru
3/8" (9.50mm) diameter x 3/8" (10mm) deep, door face opposite to closer |
50 Series Door Closers Model 51 with 291A Bracket for Molded or Bull Nose Frame Regular Arm Application, Non-Hold Open Multi-size Unit 1-6
ACCENTRA ASSA ABLOY
TEMPLATE NUMBER 7350-1110
REV DATE 3 05/24
