ASSA ABLOY ACCENTRA 502(F), 503(F), 504(F), 505(F), 506(F), 507(F), 508(F), and 509(F) Trim_7400-0502

Notes:

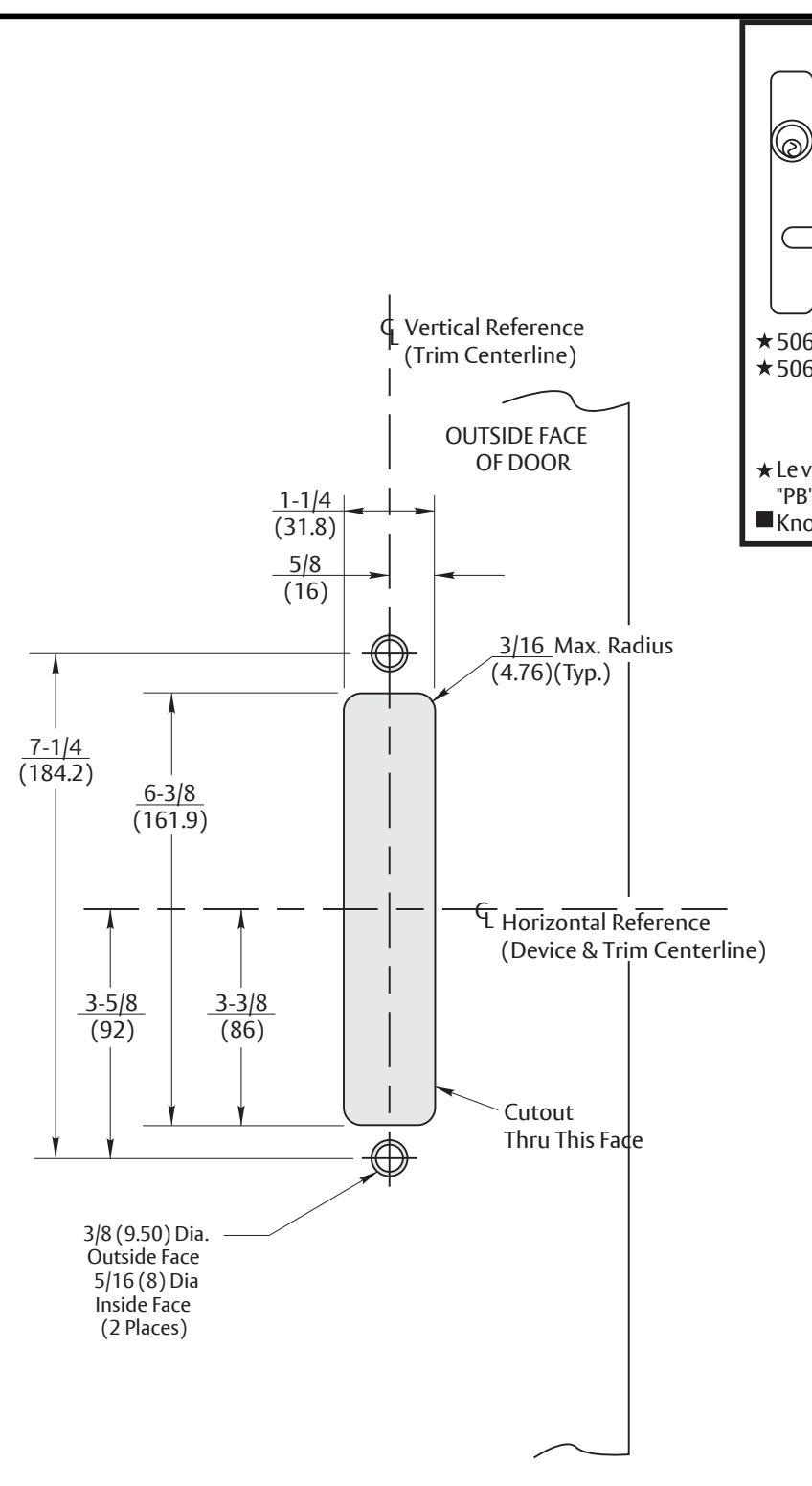

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. For door reinforcement see template 7400-0000.
• 6. Prepare mounting holes when installing the trim.
• 7. 502(F), 504(F), and 505(F) trim require 3-1/2 (89) or wider door stiles.
• 8. Provide internal door support door deformation from bolting trim to the device
• 9. Template applies to 508F.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

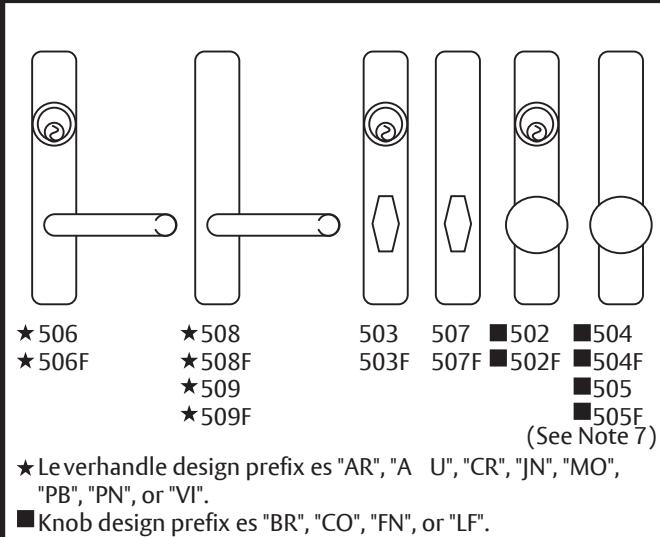

502(F), 503(F), 504(F), 505(F), 506(F), 507(F), 508(F) & 509(F) Narrow Escutcheon Trim With 6200, 7200, 7200(M) or 7200MF Series Rim and Vertical Rod Exit Devices Metal Door Preparation

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.
