ASSA ABLOY ACCENTRA 501(F) Trim for 6200ED, 7200, and 7200M(F) Series Narrow Stile Rim, SquareBolt_7400-0501

Open the original PDF document

Notes:

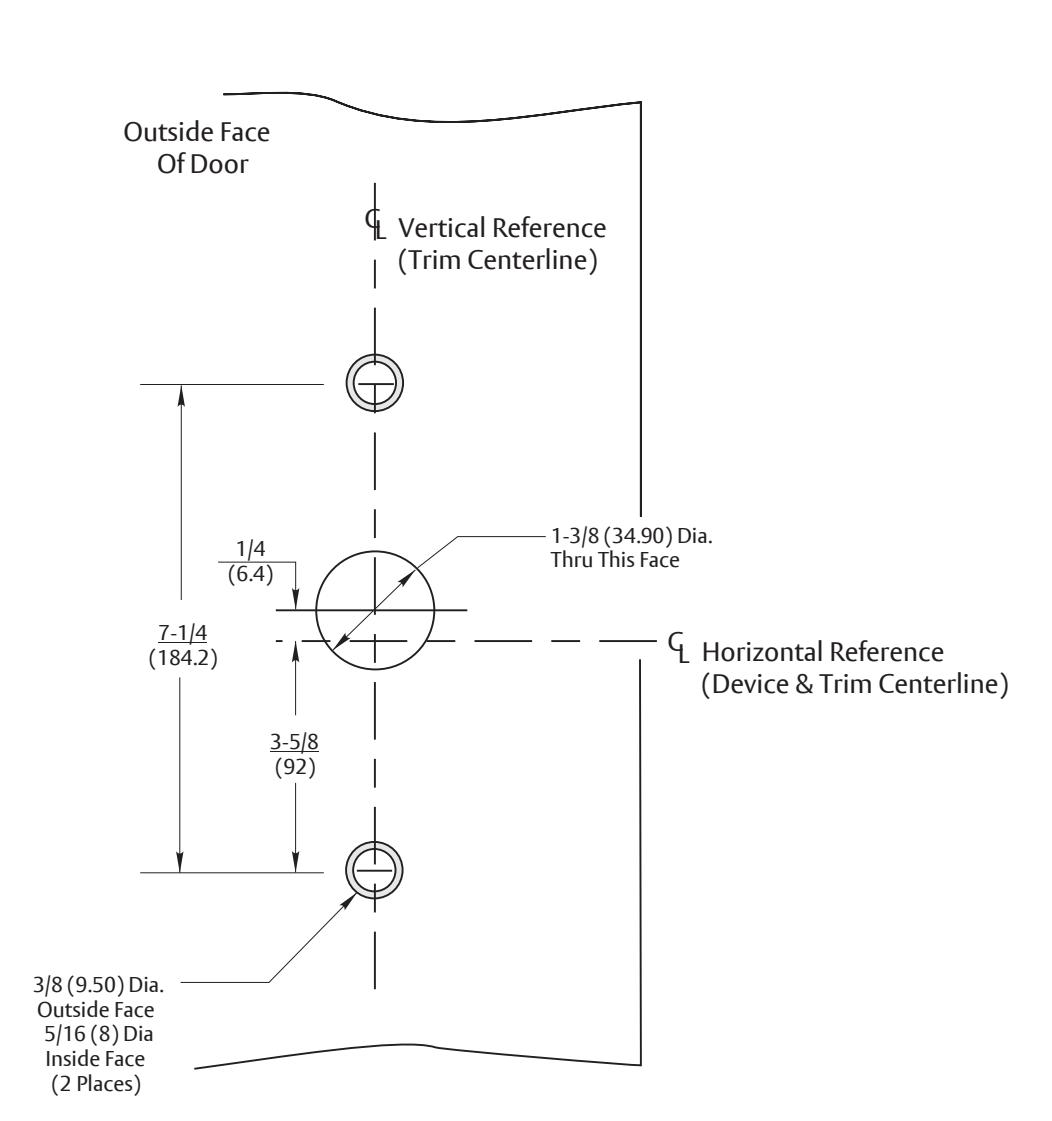

1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
2. Do not scale drawing
3. Dimensions are in inches (mm).
4. LHR door shown. Preparation is typical for both door hands.
5. For door reinforcement see template 7400-0000.
6. Prepare mounting holes when installing the trim.
7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

501(F) Narrow Escutcheon Trim With 6200, 7200, 7200(M) or 7200(MF) Series Rim and Vertical Rod Exit Devices Metal Door Preparation

ASSA ABLOY

501 501F

SUPERSEDES 7400-0501 05/15

DO NOT SCALE DRAWING

TEMPLATE NUMBER

7400-0501

01-24
