ASSA ABLOY ACCENTRA 500(F) Trim for 6200ED(F) and 7200(M)(F) Series Narrow Stile Rim, SquareBolt_7400-1500

NOTES:

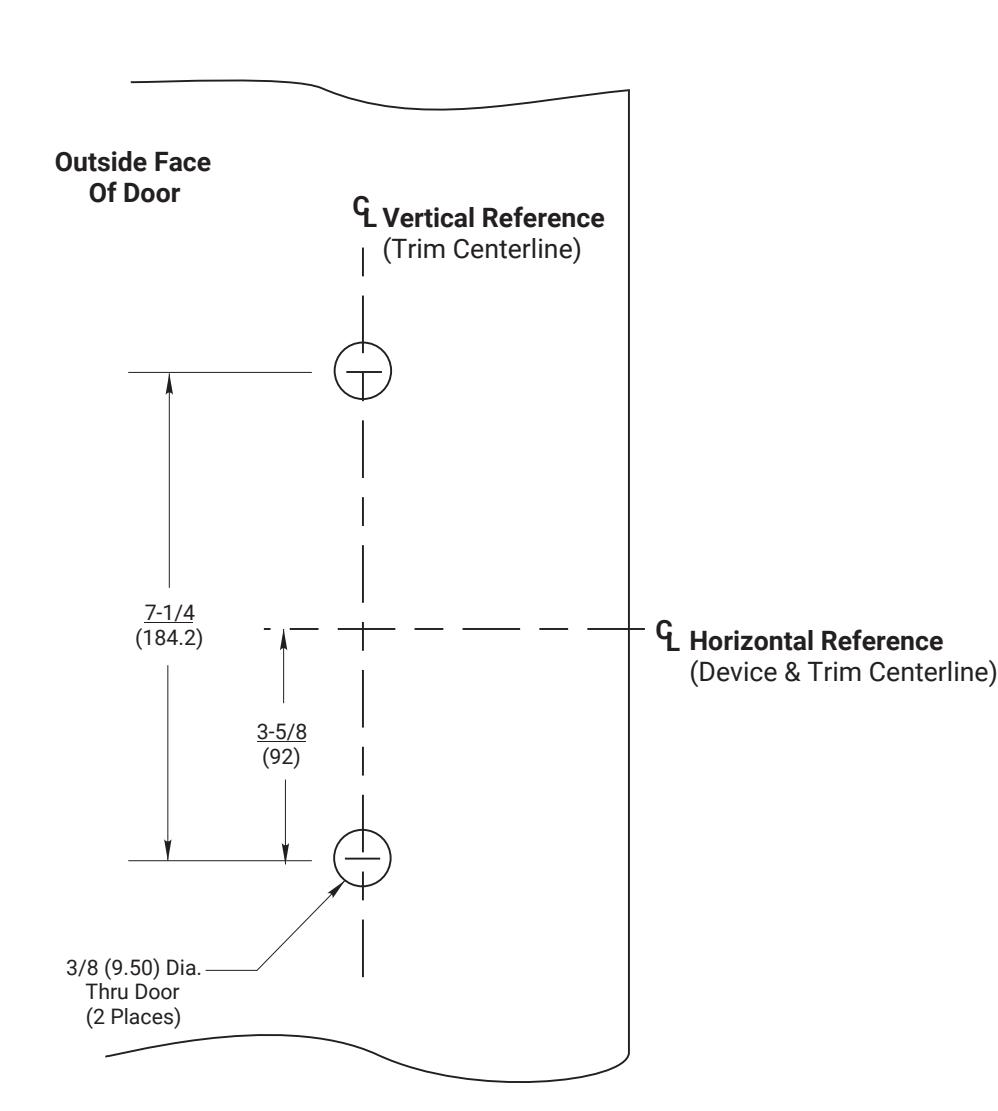

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. Prepare mounting holes when installing trim.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

500(F) Narrow Escutcheon Trim

1-855-557-5078 Ext. 2 www.accentra-assaabloy.com With 6200, 7200(M) or 7200(MF) Series Rim and Vertical Rod Exit Devices Wood or Composite Door

Copyright © 2015, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

SUPERSEDES DO NOT SCALE DRAWING 05/15

7400-1500 TEMPLATE NUMBER SHEET 1 of 1

DATE 04-24
