ASSA ABLOY ACCENTRA 50 Series Door Closer Low Profile Regular Non-Hold Open Arm Multi-size 1-6_7350-1106
Open the original PDF document
View PDF
Notes:

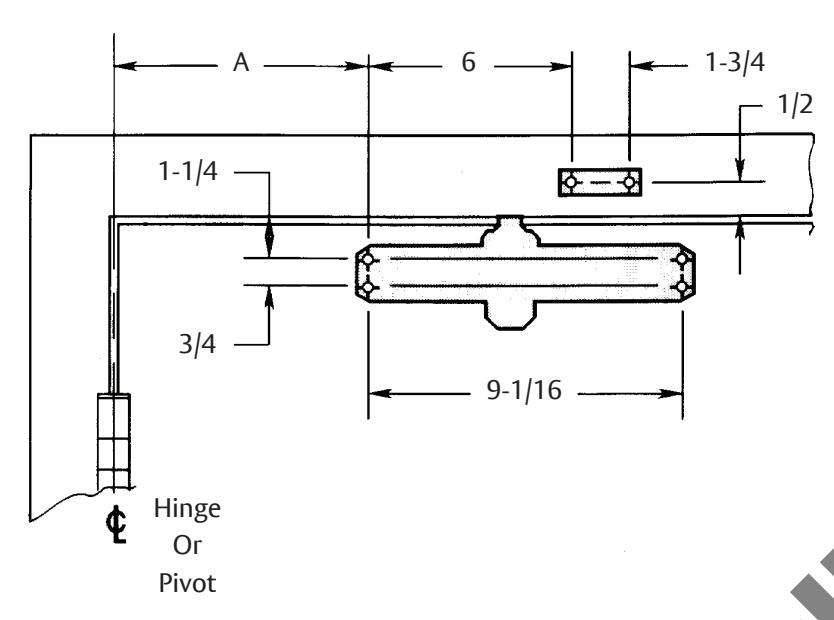

- Do not scale drawing

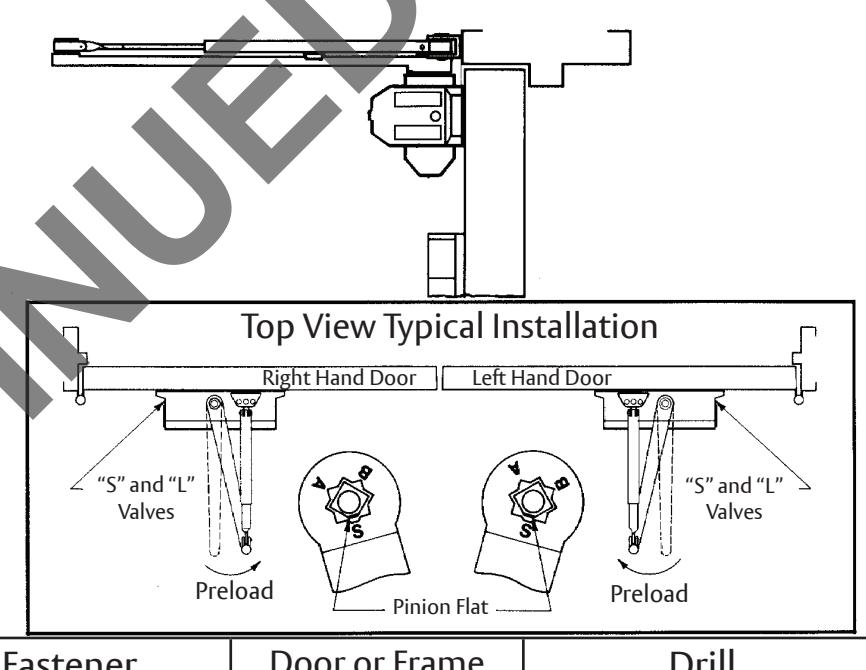

- Right hand door shown.
- Dimensions are in inches. See conversion chart for metric dimensions.
| Opening | Dim. A |
|---|---|
| To 100° | 7 |
| 101° to 120° | 6 |
| 121° to 180° | 3-1/2 |
| L | 9 1/2 | ||
|---|---|---|---|
| inches | mm. | inches | mm. |
| 1/2 | 13~ | 3-1/2 | 89 |
| 3/4 | 19.1 | 6 | 152 |
| 1-1/4 | 32 | 7 | 178 |
| 1-3/4 | 44.5 | 9-1/16 | 230.2 |
Hold Open Arm closers are not permitted to be used on fire doors. Door swing may be limited by door, frame, wall or hardware conditions. Hollow-metal doors require channel or box-type reinforcement when thrubolt mount is specified.
Sex-bolts may be required for wood or plastic faced fire-door mounting. Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2.66mm.) unless otherwise noted.
| Fastener | Door or Frame | Drill | ||
| #14 type "A" sheet metal screw | Wood | 7/32" (5.5mm) | ||
| 1/4-20 machine screw | Metal |
7 (.201 dia.) or 5.10mm. drill 1/4"
20 tap |
||
|
SNB
(Optional) |
Hollow-Metal |
9/32" (7.00mm.) thru
3/8" (9.50mm.) door face opposite to closer |
||
| (Optional) | Aluminum or Wood | 3/8" (9.50mm.) thru | ||
|
TBGN
(Optional) |
All |
9/32" (7.00mm.) thru
3/8" (9.50mm.) diameter x 3/8" (10mm.) deep, door face opposite to closer |
||
Experience a safer and more open world
Copyright © 1998, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group. Inc. is prohibited.
250 Series Door Closers with Low Profile Arm Regular Arm Application Non Hold Open Arm Closer Sizes 1, 1BF, 2, 3, 4, 5, or 6
80-7350-1106-010 Sheet: 1 of 1
Template Number:
Date: 01/24
