ASSA ABLOY ACCENTRA 482F and 483F Trim for 6200ED(M)(F) and 7200(M)(F) Series Narrow Stile Rim_7400-1482

NOTES:

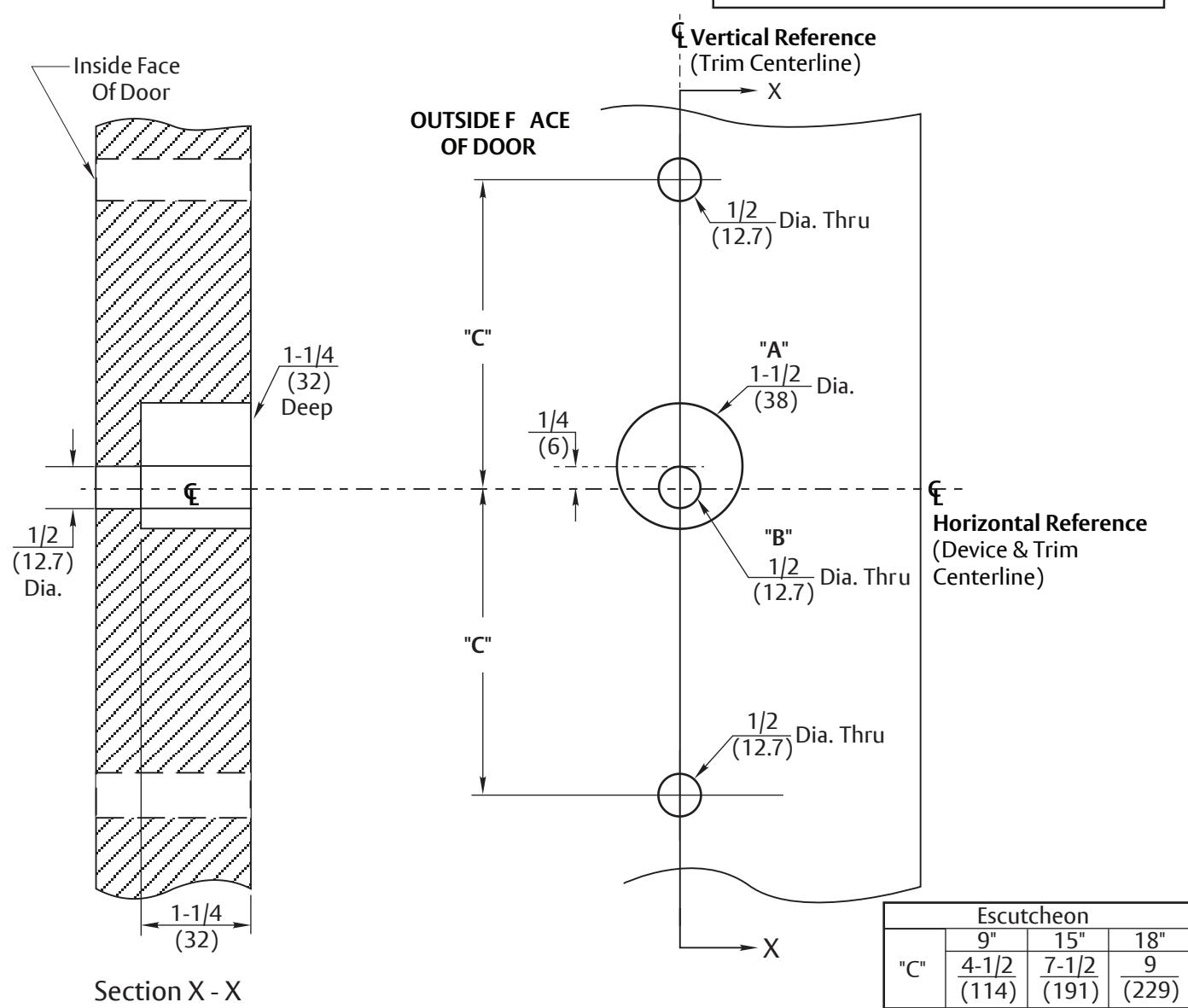

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. Provide adequate structural support to maintain door integrity during operation.
• 6. Prepare mounting holes when installing trim.
• 7. Dimensions given about a centerline are symmetrical.
• 8. For 483F use "A" and "B" holes. For 482F DO NOT use.

Note: Lever and knob prefix does not affect door prep.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

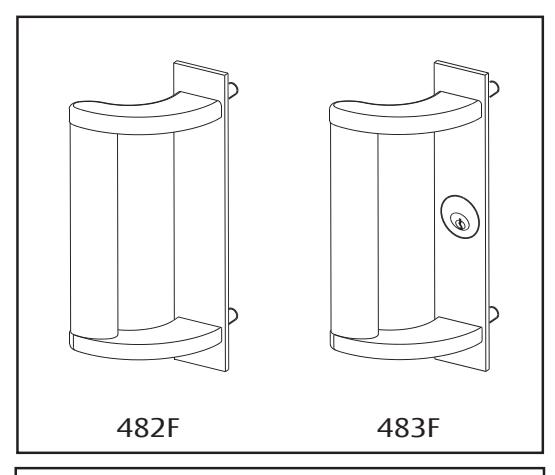

482F & 483F Trim

9", 15", and 18" Escutcheon, Wood Door Preparation For use with 6200 & 7200(F) Series Rim and Vertical Rod Exit Devices

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

7400-1482 DATE SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 05/15 12-23
