ASSA ABLOY ACCENTRA 480F and 481F Trim for 6200ED(F), 6200EDM(F), 7200, and 7200M(F) Series Narrow_7400-0480

Notes:

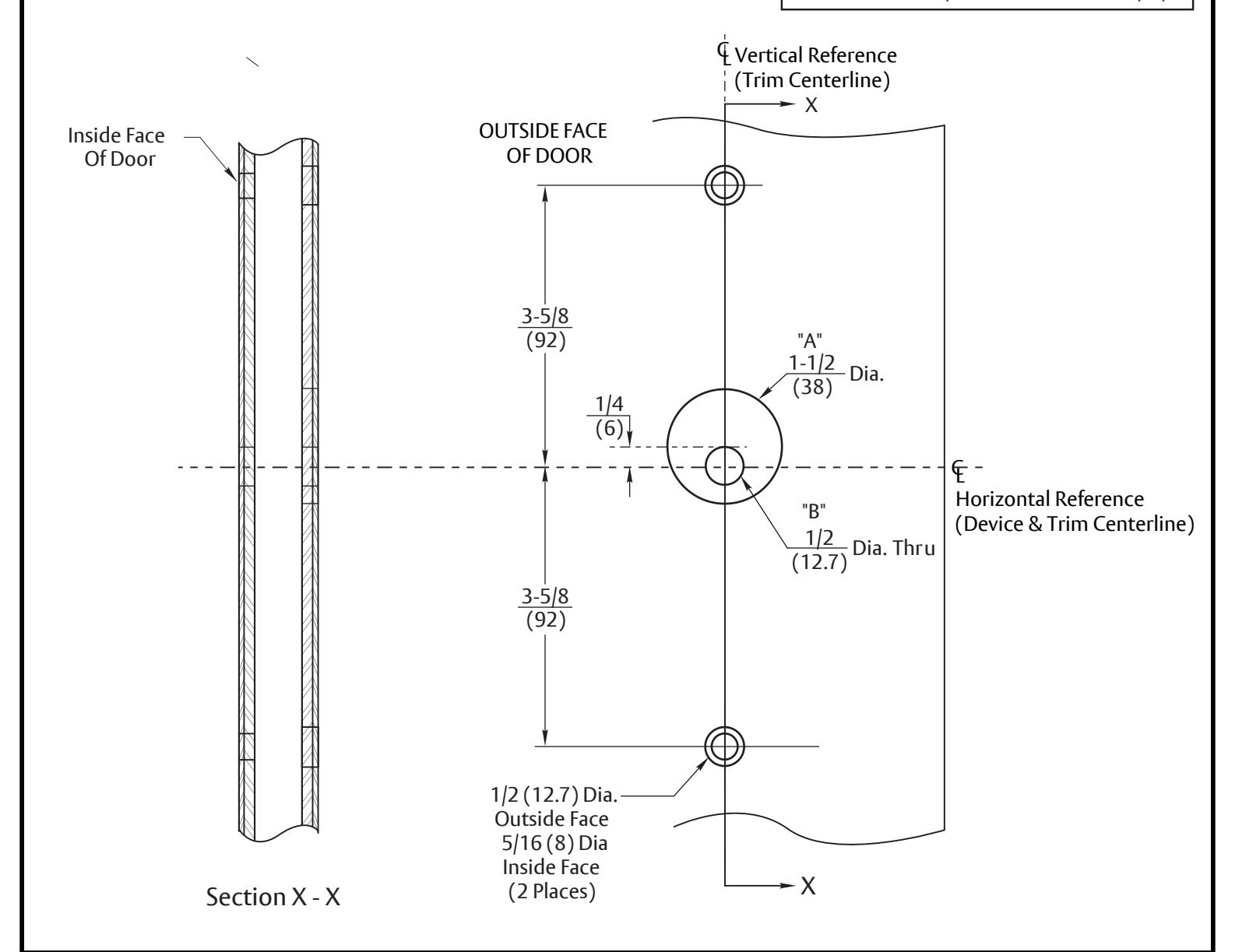

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. Provide adequate structural support to maintain door integrity during operation.
• 6. Prepare mounting holes when installing the trim.
• 7. Dimensions given about a centerline are symmetrical.
• 8. For 481F use "A" and "B" holes. For 480F DO NOT use.

Note: Lever and knob prefix does not affect door prep

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

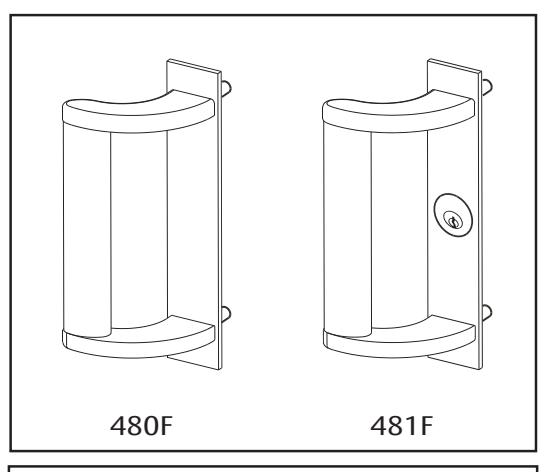

480F & 481F Trim 7-1/2" Escutcheon, Metal Door Preparation For use with 6200 & 7200(F)

Series Rim and Vertical Rod Exit Devices

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

SUPERSEDES DO NOT SCALE DRAWING 7400-0480 06/15

7400-0480 DATE TEMPLATE NUMBER

01-24
