480F, 481F, 482F & 483F

Offset Pull Trim

Installation Instructions

Installation Instructions

• 1. Check box for contents. See previous page for components
• 2. After marking door inside face for device location (Device Instructions), transfer Vertical Reference Centerline from inside to outside door face. Follow steps 2a. and 2b . to the right.
• 3. Transfer Horizontal Reference Centerline from inside to outside door face.
• 4. Align trim template and tape 4. to outside door face.
• 5. Spot holes and prepare door for trim.
• 6. For 480F & 482F Trim: Mount trim to door thru holes "A" with (2) mounting screws as shown in Fig. 1

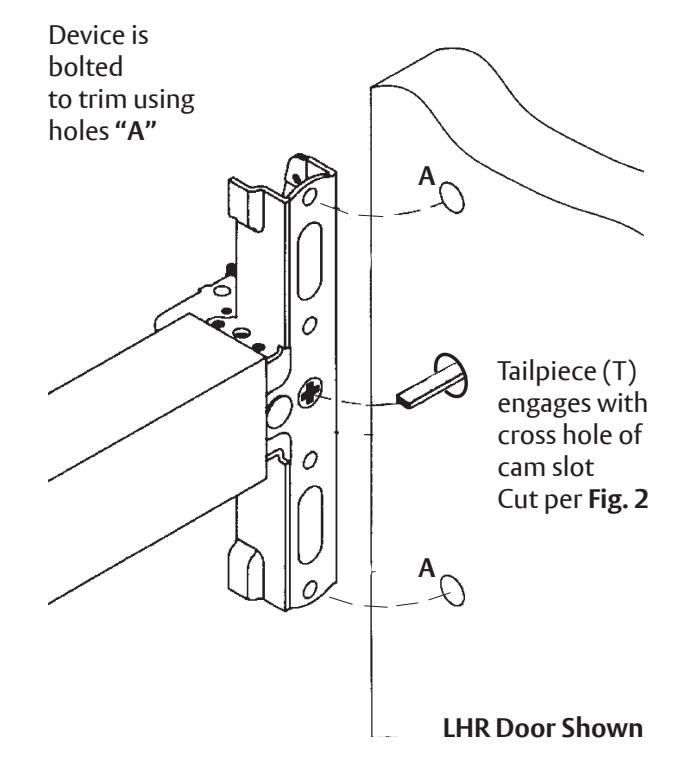

• 7. For 481F & 483F Nightlatch Trim: Cut trim tailpiece as shown in Fig. 2 . Seat device so that the trim tailpiece penetrates cam slot as shown in Fig. 1 . Mount trim to door thru holes "A" as shown in Fig. 1 .
• 8. Continue as shown in device instructions.

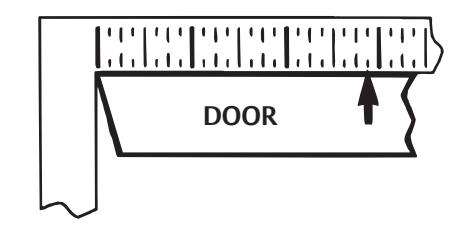

2a. MEASURE INSIDE LINE LOCATION.

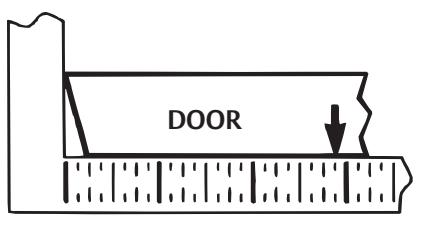

2b. TRANSFER DIMENSION TO OUTSIDE FACE.

Figure 1 Figure 2

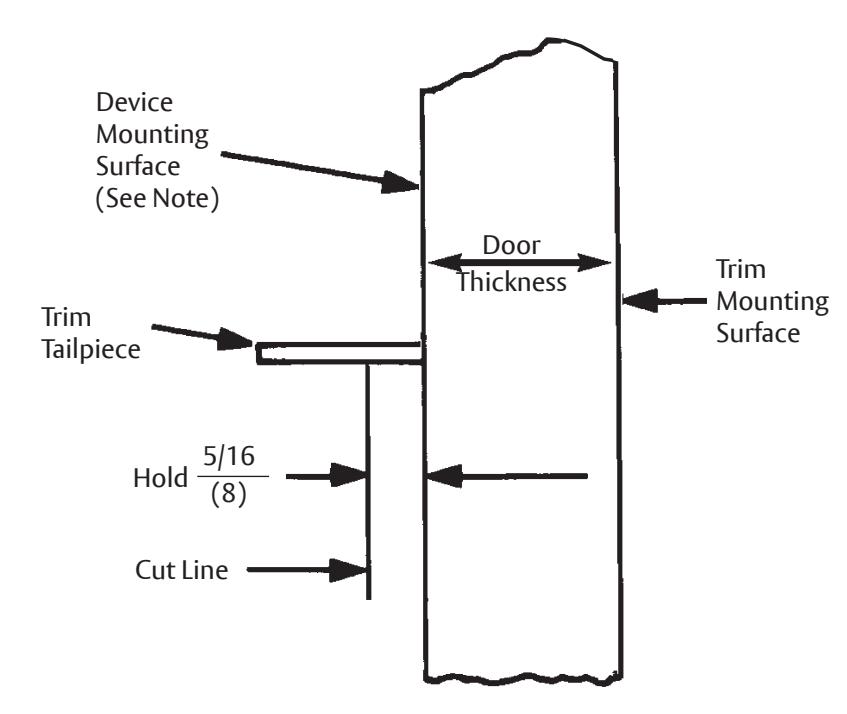

481 Nightlatch Tailpiece Sizing

NOTE: Measure from device mounting surface (door face or shim surface)

80-8470-0480-000 11/23

For use with 7200 Series Exit Device (Wood and Metal Doors)

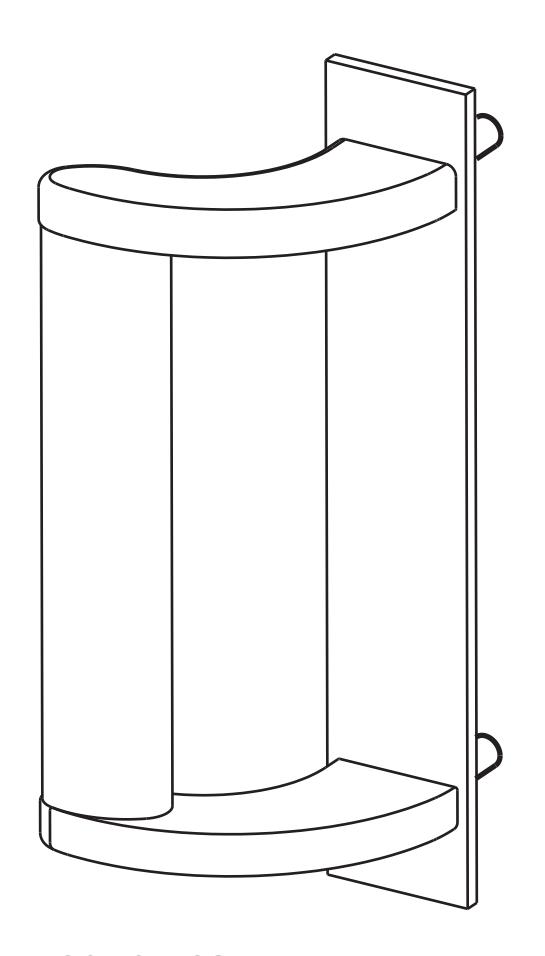

480F & 482F Offset Pull Trim Non-Handed

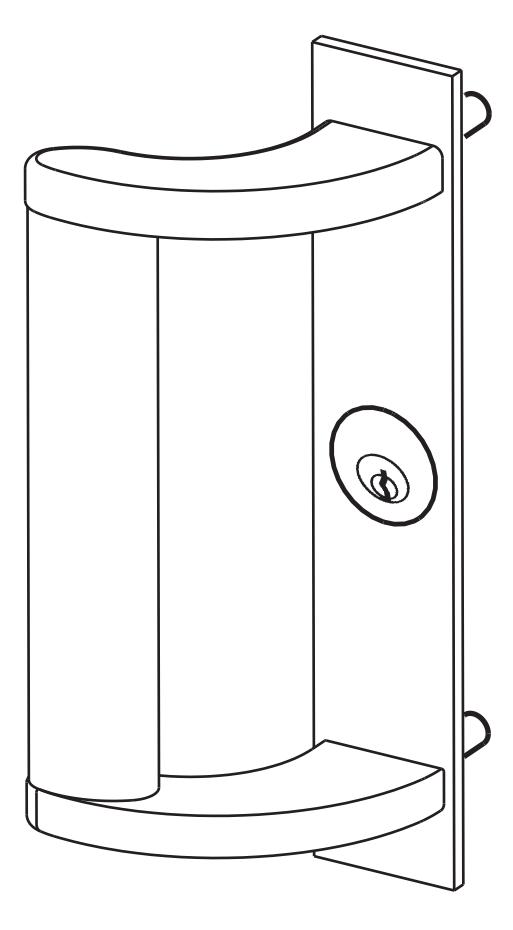

481F & 483F Nightlatch Function Offset Pull Trim Handed - LHR Shown

WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

WARNING

Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

80-8470-0480-000 11/23

1-855-557-5078 • www.assaabloy.com

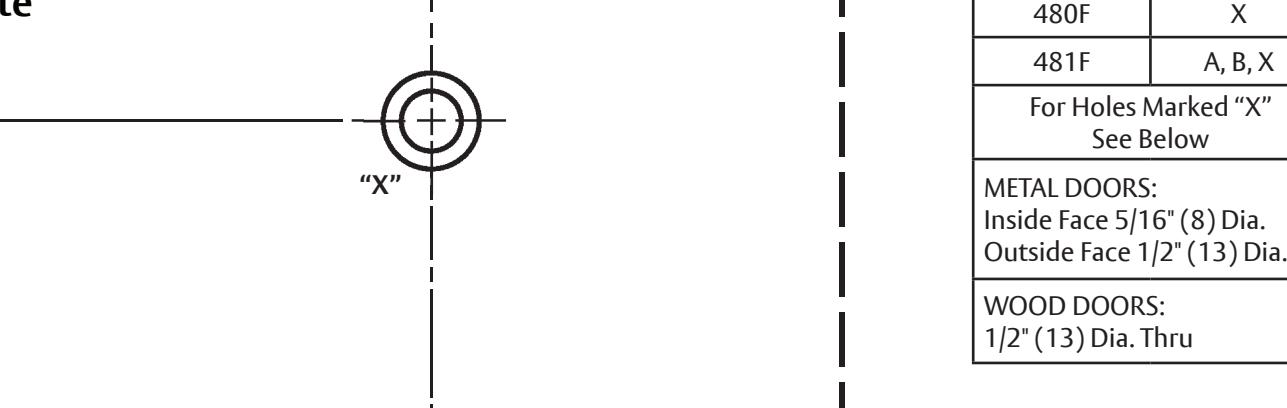

TRIM HOLES

480F, 481F, 482F & 483F

Offset Pull Trim

Installation Instructions

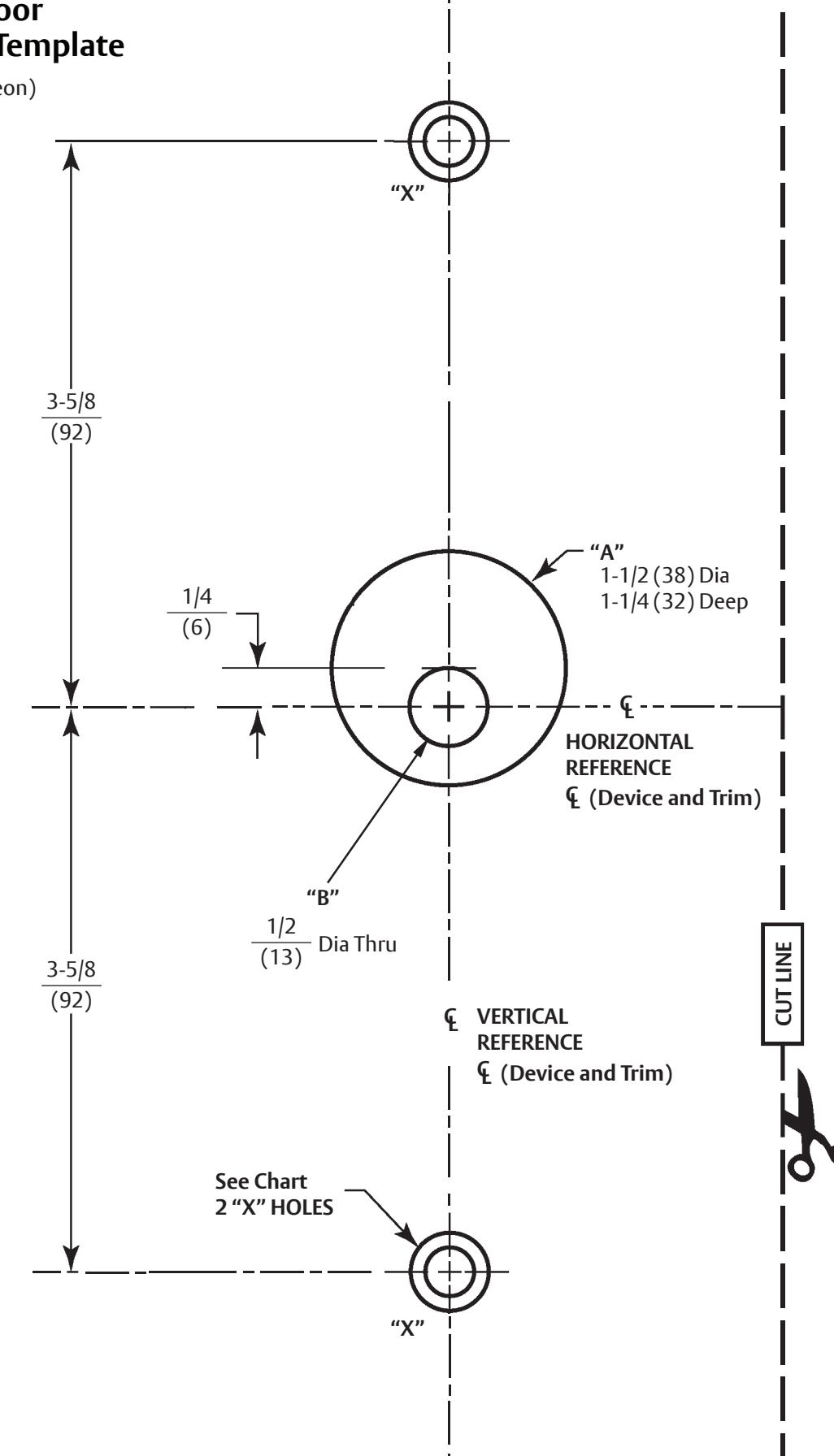

Outside Door Face Trim Template

(7-1/2" Escutcheon)

Dimensions given in inches (mm)

CAUTION:

Office copiers, printers and facsimile machines may change the size of a drawing and make the template inaccurate to use as a door marker.

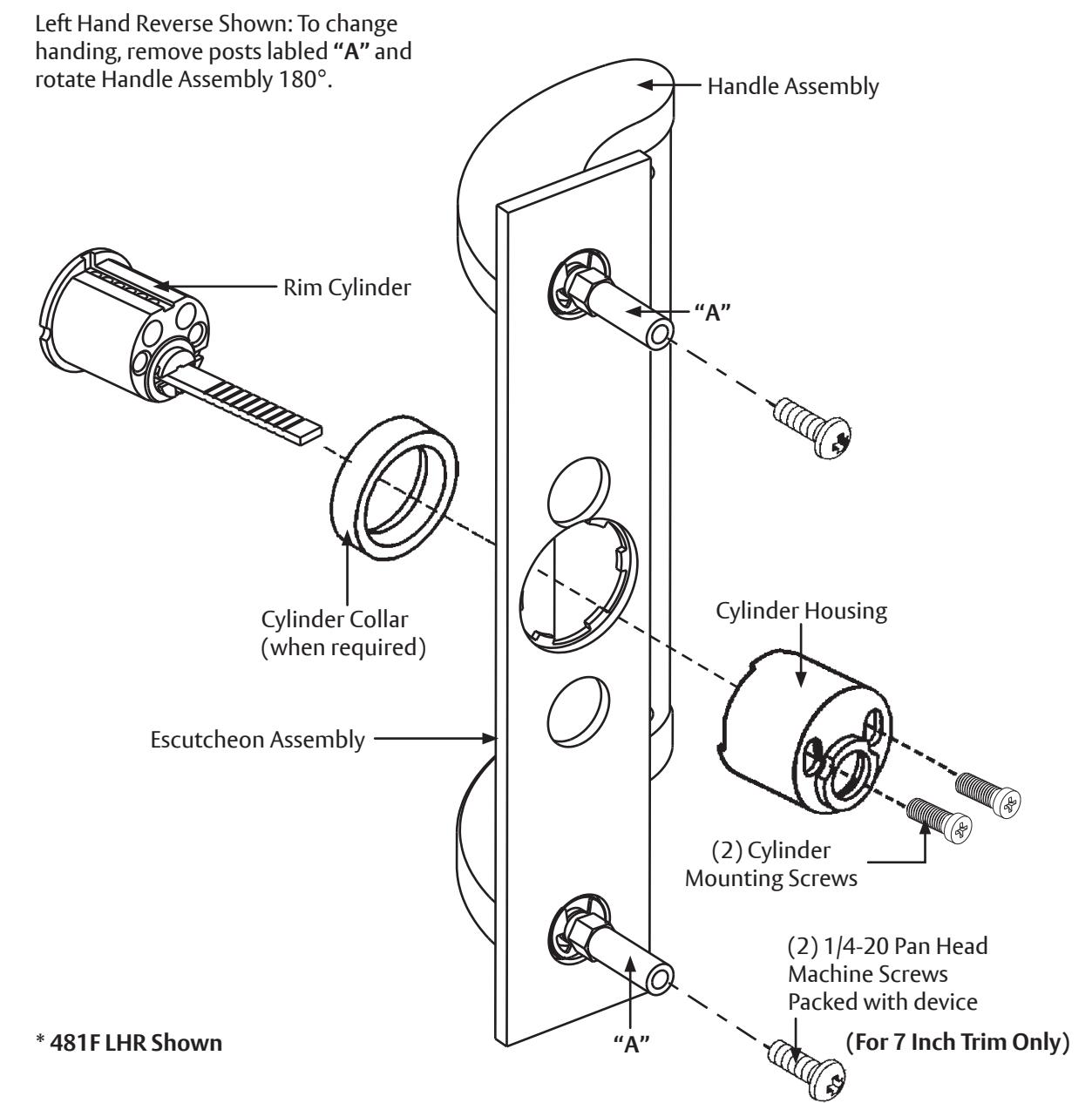

Trim Assembly Instructions

• 1. Check cylinder components.
• NOTE: Refer to ASSA ABLOY cylinder chart in catalog for collar sizing.
• 2. Assembly cylinder.

Insert cylinder housing prongs into matching notches of escutcheon. Pass cylinder tailpiece thru cylinder collar (when required) and hole in cylinder housing. Fasten cylinder using (2) mounting screws. DO NOT OVERTIGHTEN SCREWS.

481F & 483F Nightlatch Function Offset Pull Trim

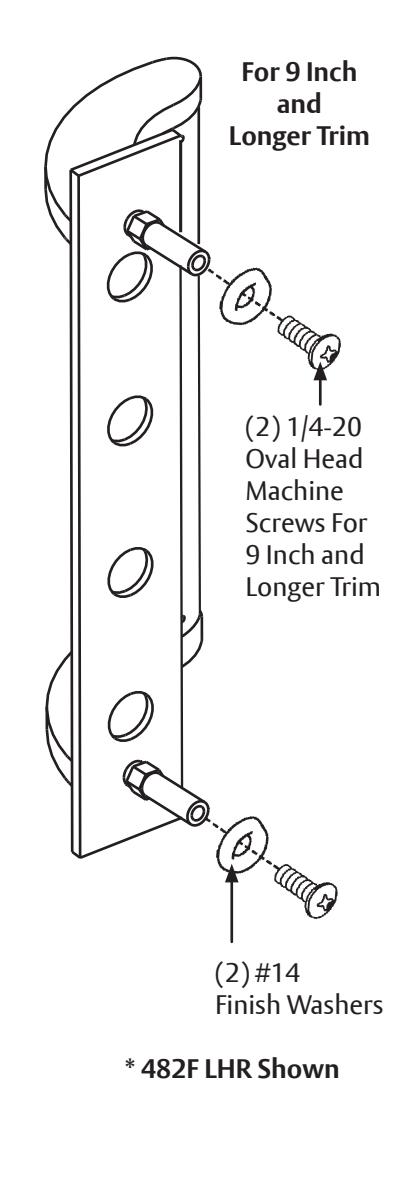

480F & 482F Offset Pull Trim

80-8470-0480-000 11/23
