ASSA ABLOY ACCENTRA 4700LN Series Cylindrical Locks 80, 81, 90, 91 (Solenoid Controlled) Functions 2-3, 4 and Op…_7150-8018

Beveled Edge

Universal or

Square Edge

Notes:

• 1. Do not scale drawing
• 2. For strike preparation refer to: 497 Strike - Template No. 7102-0003
• 3. Backset: 2-3/4" (70mm) standard 3-3/4" (95mm) to order
• 4. For wood door preparation refer to Template No. 7150-8019.
• 5. Door manufacturer must provide supports within the door to keep the door from collapsing when lock is installed. Back of latch case must also be supported.
• 6. All dimensions given in inches (mm).
• 7. Provide 3/4" (19) raceway for wire harness to electric hinge, location optional by door manufacture.

Experience a safer and more open world

Copyright © 2010, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

4780LN, 4781LN, 4790LN, and 4791LN Solenoid Controlled Cylindrical Locks

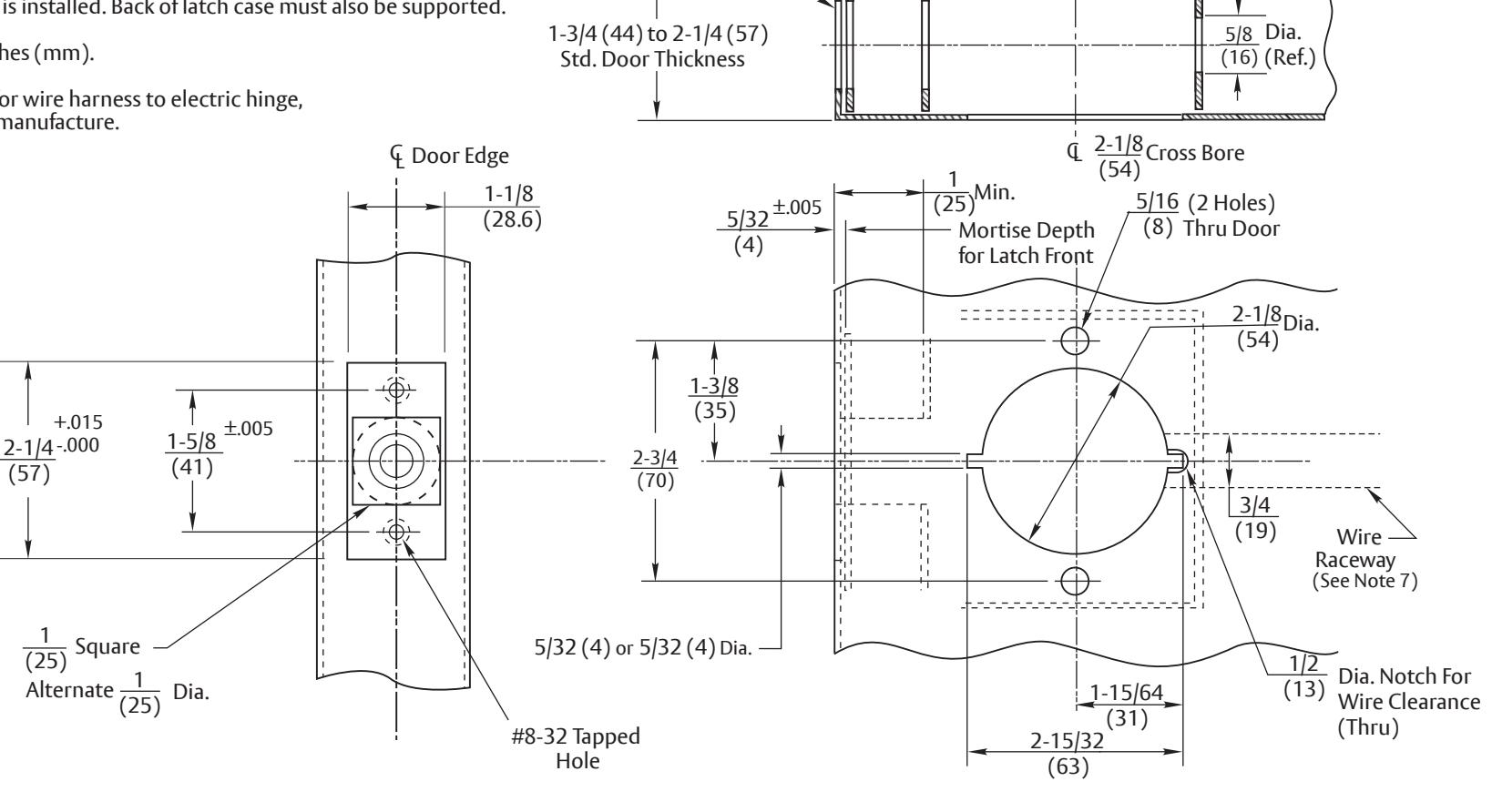

H.M. Door Preparation Backset - 2-3/4"(70mm) and Optional Backsets

Template Number: 7150-8018 Sheet: 1 of 1

Date: 12/23

← Taper 1/8 (3) per 2 (51)

Backset

See Note 3
