View PDF4700LN SERIES Lever Locks
| Latch Mdl # | Туре | Front | Bac kset | Throw | Latc h Dia. |
|---|---|---|---|---|---|
| 693 | Plain | Bevel | 2-3/4(70) | 1/2(13) | 1(25) |
| 694 | Deadlocking | Bevel | 2-3/4(70) | 1/2(13) | 1(25) |
| F693 | Plain | Flat | 2-3/4(70) | 1/2(13) | 1(25) |
| F694 | Deadlocking | Flat | 2-3/4(70) | 1/2(13) | 1(25) |
| 3693 | Plain | Bevel | 3-3/4(95) | 1/2(13) | 1(25) |
| 3694 | Deadlocking | Bevel | 3-3/4(95) | 1/2(13) | 1(25) |
| 480B | Deadlocking | Bevel | 2-3/4(70) | 3/4(19) | 1(25) |
| 3480B | Deadlocking | Bevel | 3-3/4(95) | 3/4(19) | 1(25) |
| F480B | Deadlocking | Flat | 2-3/4(70) | 3/4(19) | 1(25) |
DO NOT SCALE
Notes:
- 1. When 4-7/8" (123.8) Strike is specified, refer to No 497 . Strike, Template No. 7102-0003.
- 2. When T-Strike is specified, refer to No. 371 Strike, Template 7102-0005.
- 3. Dimensions marked with * have tolerances of , -0.
- 4. All dimensions given in inches (mm).

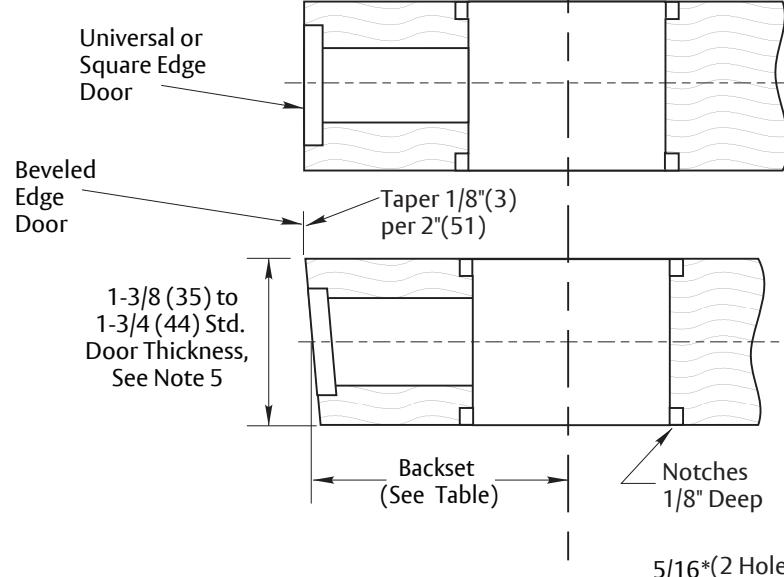

- 5. Standard Locks adjustable for 1-3/8"(35) to 1-3/4"(44) door thicknesses..
Experience a safer and more open world
Copyright © 2012, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

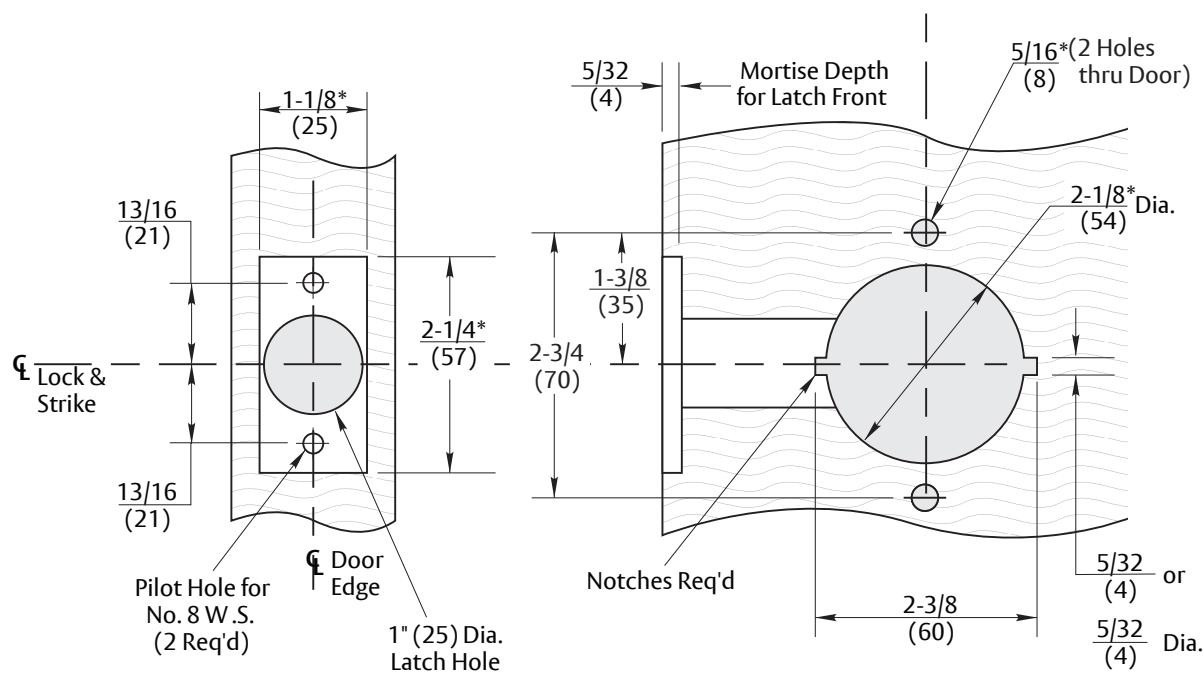

4700LN Series Lever Handle Cylindrical Locks - 1-1/8" Wide Front
Wood Door Preparation (See ANSI/BHMA A156.115) 2-3/4" or 3-3/4" Backsets
Template Number: 7150-0110
Sheet: 1 of 1 Date: 12/23
