4700LN SERIES
Lever Locks |
|||||
|---|---|---|---|---|---|
|
Latch
Mdl # |
Type | Front | Backset | Throw | Latch Dia. |
| 693 | Plain | Bevel | 2-3/4(70) | 1/2(13) | 1(25) |
| 694 | Deadlocking | Bevel | 2-3/4(70) |
1/2
(13) |
1
(25) |
| F693 | Plain | Flat | 2-3/4(70) | 1/2(13) | 1(25) |
| F694 | Deadlocking | Flat | 2-3/4(70) | 1/2(13) | 1(25) |
| 3693 |
P
lain |
Bevel | 3-3/4(95) |
1/2
(13) |
1(25) |
| 3694 | Deadlocking | Bevel | 3-3/4(95) | 1/2(13) | 1(25) |
| 480B | Deadlocking | Bevel | 2-3/4(70) | 3/4(19) | 1(25) |
| 3480B | Deadlocking | Bevel | 3-3/4(95) |
3/4
(19) |
1(25) |
| F480B | Deadlocking | Flat | 2-3/4(70) |
3/4
(19) |
1(25) |
Notes:
- 1. When 4-7/8" (123.8) Strike is specified, refer to No. 497 Strike, Template No. 7102-0003.
- 2. When T-Strike is specified, refer to No. 371 Strike, Template 7102-0005.
- 3. Dimensions marked with * have tolerances of +.015, -0.000
- 4. All dimensions given in inches (mm).
- 5. Standard Locks adjustable for 1-3/8(35) to 1-3/4"(44) door thicknesses.
Copyright © 2010, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
4700LN Series Lever Handle Cylindrical Locks - 1-1/8" Wide Front

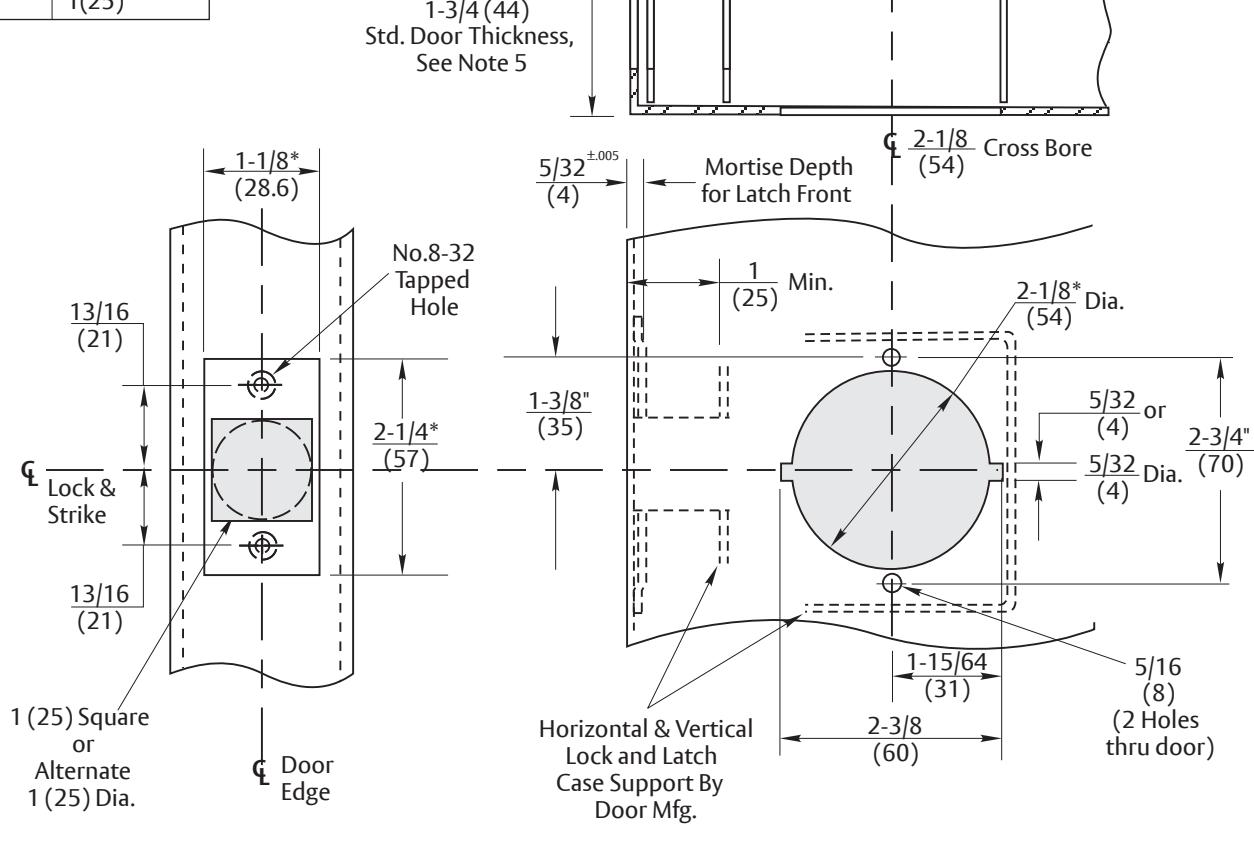

H.M. Door Preparation (See ANSI/BHMA A156.115) 2-3/4" or 3-3/4" Backsets Date: 12/23
Template Number: 7150-0109
Taper 1/8(3) per 2 (51)
Backset (See Table)
Sheet: 1 of 1
