ASSA ABLOY ACCENTRA 4700 Series Cylindrical Locks 2-3, 4 Backset Wood Door Template_7150-0112

4700 SERIES Knob Locks Latch Mdl # Type Front Backset Throw Latch Dia. MCP134 Plain Flat 2-3/4(70) 1/2(13) 1(25) 2-3/4(70) 1(25) Flat 1/2(13) MCD134 Deadlocking

Notes:

• For strike preparation refer to: 497 strike = Template No. 7102-0003.
• 2. Dimensions marked with * have tolerances of +1/32, -0.
• 3. All dimensions given in inches (mm).
• 4. Standard locks adjustable for 1-3/4" (44) to 2" (51) door thicknesses.

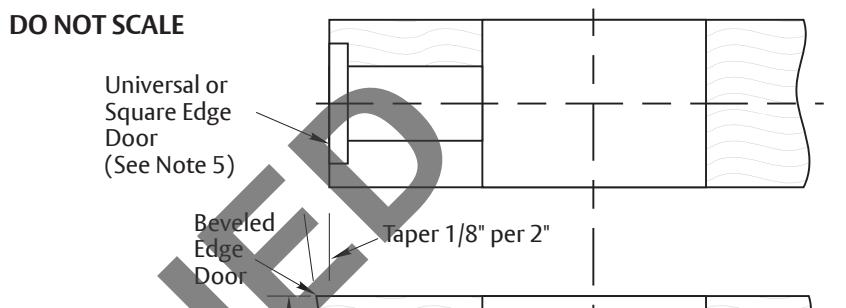

• 5. For universal or square edge doors.

Experience a safer and more open world

Copyright $\backslash bigcirc$ 2010, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

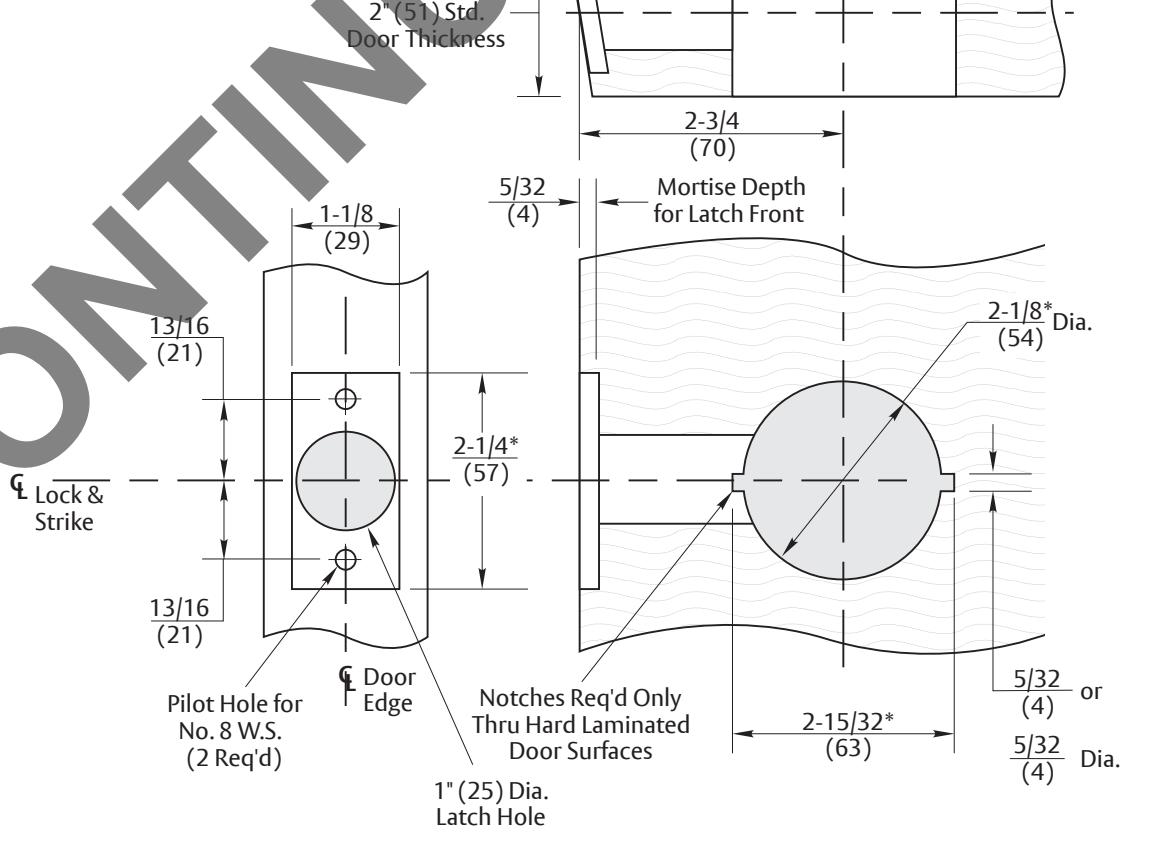

4700 Series Knob Cylindrical Locks Wood Door Preparation 2-3/4" (70mm) Backset

Template Number: 7150-0112

Sheet: 1 of 1

Date: 12/23
