4600LN SERIES Lever Locks

Level Looks
Latch MdI #	Туре	Front	Front Dim. A	Backset	Throw	Latch Dia.
MCP238	Plain	Square	1(25)	2-3/8(60)	1/2(13)	7/8(22)
MCP238R	Plain	Round	1(25)	2-3/8(60)	1/2(13)	7/8(22)
MCP234	Plain	Square	1-1/8(29)	2-3/4(70)	1/2(13)	7/8(22)
MCD238	Deadlocking	Square	1(25)	2-3/8(60)	1/2(13)	7/8(22)
MCD238R	Deadlocking	Round	1(25)	2-3/8(60)	1/2(13)	7/8(22)
MCD234	Deadlocking	Square	1-1/8(29)	2-3/4(70)	1/2(13)	7/8(22)

NOTE: 1/8" sleeve (P/N 14-0378-9001-999) supplied with all latchbolts to accommodate 1" preps.

Notes:

• 1. For strike preparation refer to:
  • 497 strike = Template No. 7102-0003.
  • 371 strike = Template No. 7102-0005.
• 2. Dimensions marked with * have tolerances of +1/32, -0.
• 3. All dimensions given in inches (mm).

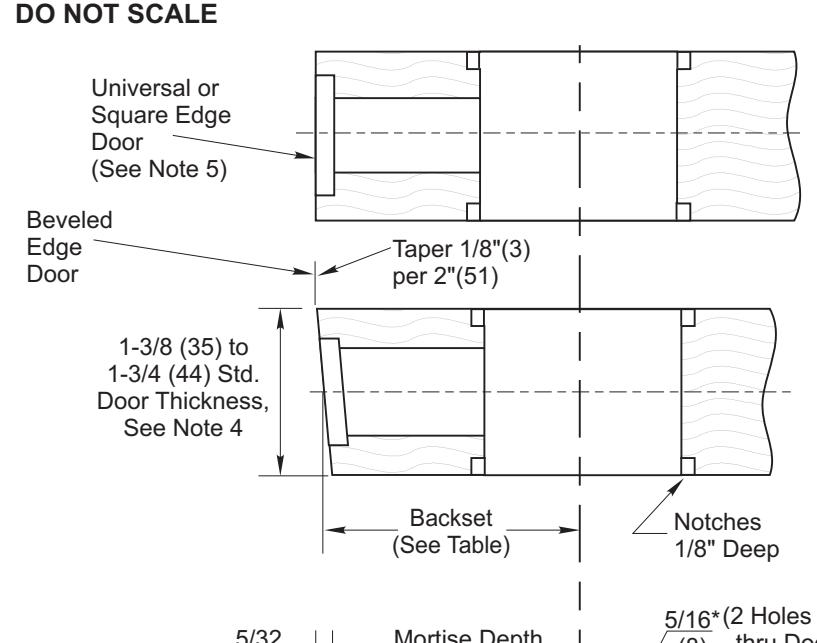

• 4. Standard locks adjustable for 1-3/8" (35) to 1-3/4" (44) door thicknesses.
• 5. For universal or square edge doors.

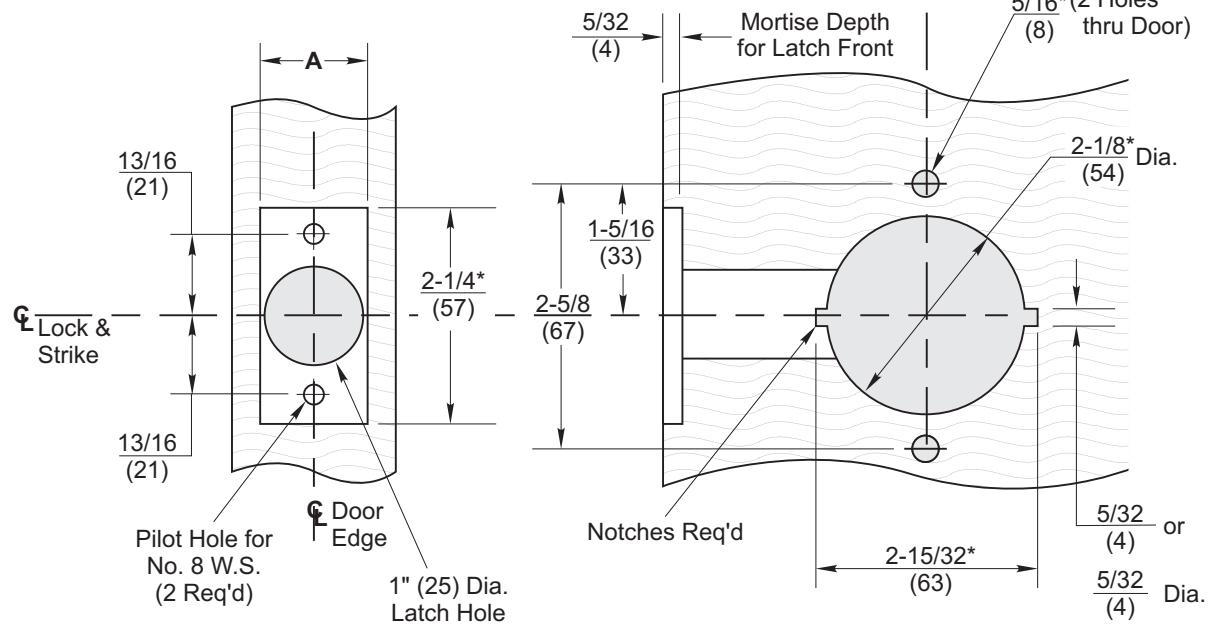

4600LN Series Lever Handle Cylindrical Locks Wood Door Preparation 2-3/4" and Optional Backsets
