ASSA ABLOY ACCENTRA 4600LN Series Cylindrical Locks 2-3, 4 and Optional Backsets H.M. Door Template_7150-0105

4600LN SERIES Lever Locks Latch Mdl # Type Front MCP238 Plain Square 1(25) 2-3/8(60) 1/2(13) 7/8(22) MCP238R Plain Round 1 2-3/8 1/2 7/8 MCP234 Plain Square 1-1/8(29) 2-3/4(70) 1/2 7/8 MCD238 Deadlocking Square 1(25) 2-3/8(60) 1/2(13) 7/8(22) MCD238R Round 1 2-3/8 1/2 7/8 MCD234 Square 1-1/8(29) 2-3/4(70) 1/2 7/8 (25) (60) (13) (22) (13) (22) Deadlocking (25) (60) (13) (22) Deadlocking (13) (22) Front Dim. A Backset Throw Latch Dia.

NOTE: 1/8" sleeve (P/N 14-0378-9001-999) supplied with all latchbolts to accommodate 1" preps.

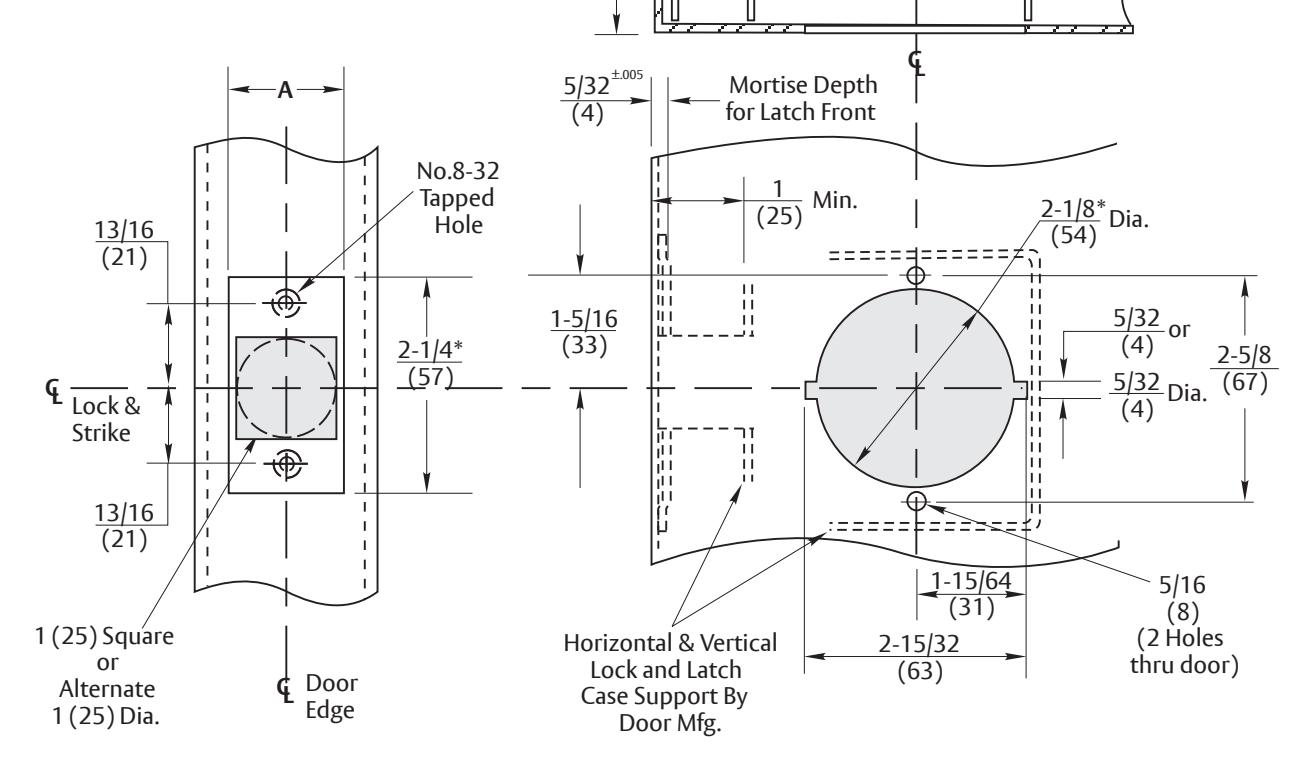

DO NOT SCALE Universal or Square Edge Taper 1/8(3) per 2 (51) Backset (See Table) Beveled Edge

1-3/8 (35) to 1-3/4 (44) Std. Door Thickness, See Note 4

Notes:

1. For strike preparation refer to:

497 strike = Template No. 7102-0003.

371 strike = Template No. 7102-0005.

• 2. Dimensions marked with * have tolerances of +.015, -0.000
• 3. All dimensions given in inches (mm).
• 4. Standard locks adjustable for 1-3/8" (35) to 1-3/4" (44) door thicknesses.
• 5. For universal or square edge doors.

Copyright © 2010, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

4600LN Series Lever Handle Cylindrical Locks H.M. Door Preparation 2-3/4" and Optional Backsets Date: 12/23

Template Number: 7150-0105

Sheet: 1 of 1
