ASSA ABLOY ACCENTRA 441F, 446F, 448F, and 449F Trim for 1800(F), 2100(F), and 6100ED(F) Series Wide_7400-1441

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

441F, 446F, 448F and 449F Trim

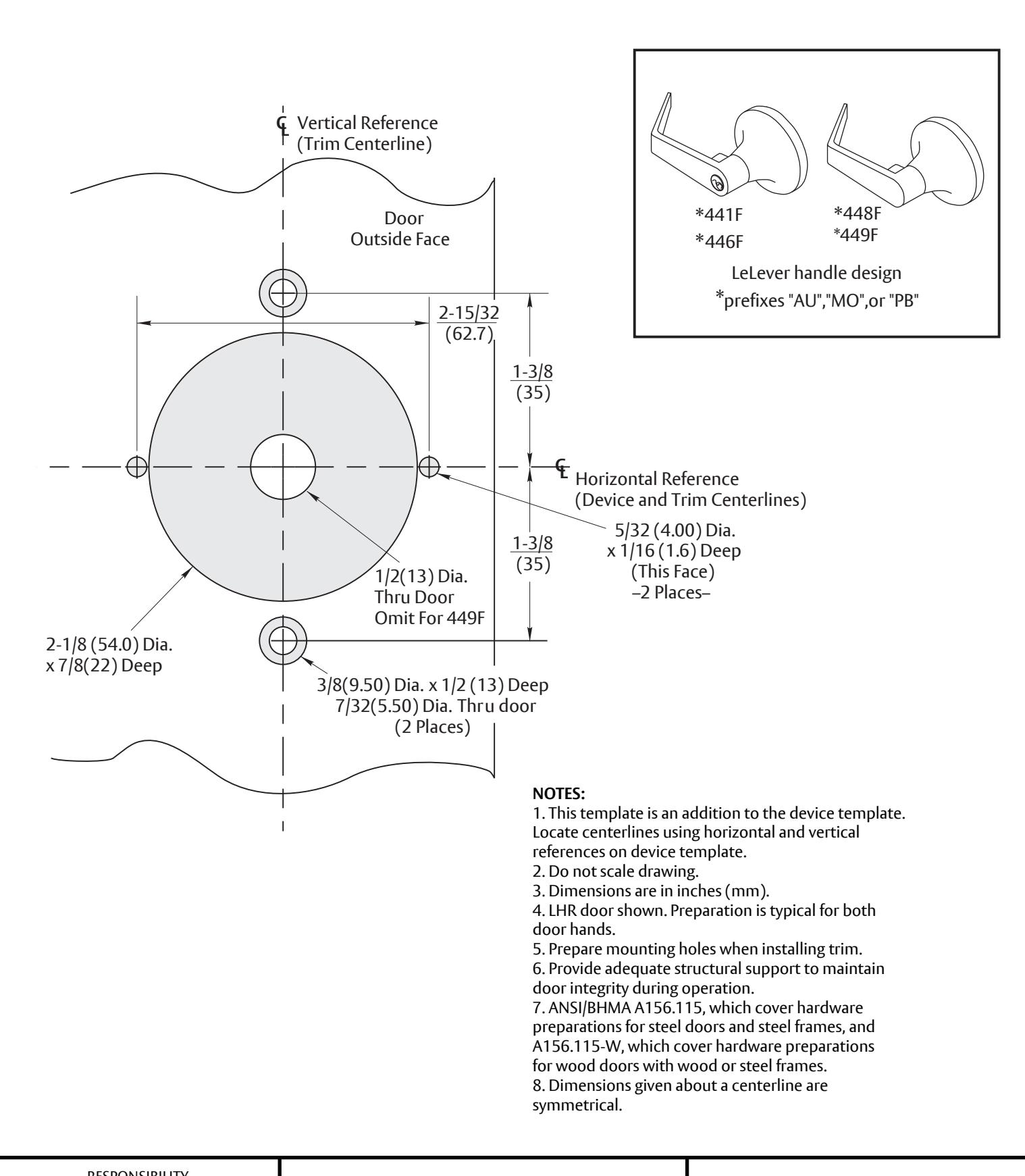

With 2100(F), 6100(F), 6170(F) or 1800(F) Series Rim and Vertical Rod Exit Devices Wood Door Preparation

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 06/15

7400-1441 DATE

12-23
