ASSA ABLOY ACCENTRA 441F, 446F, 448F, and 449F Trim for 1800(F), 2100(F), and 6100ED(F) Series Wide_7400-0441

Notes:

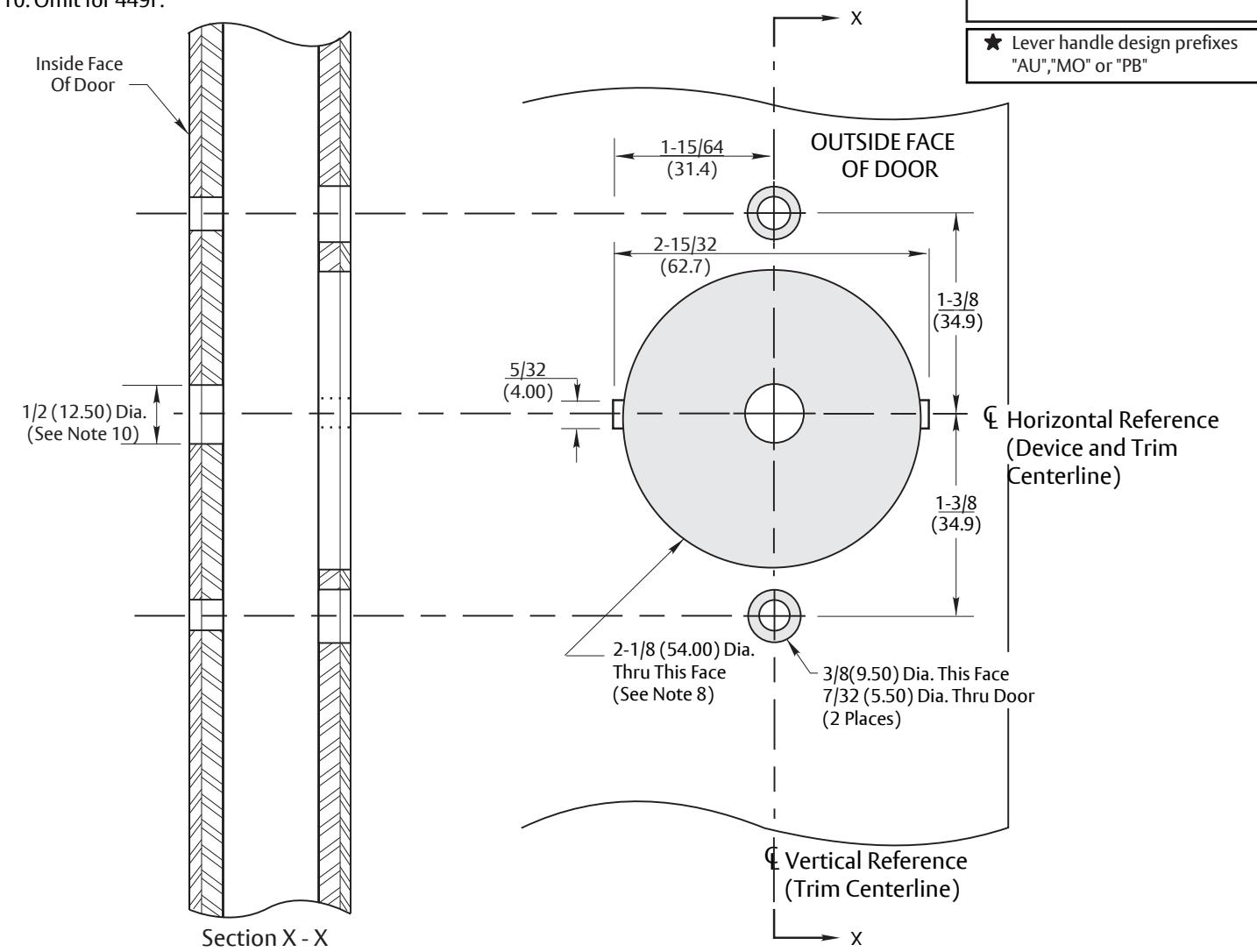

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. For door reinforcement see template 7400-0000.
• 6. Prepare mounting holes when installing the trim.
• 7. Provide adequate internal support to prevent door deformation after trim is bolted to the door.
• 8. ANSI/BHMA A156.115, which cover hardware preparations for steel doors and steel frames, and A156.115-W, which cover hardware preparations for wood doors with wood or steel frames.
• 9. Dimensions given about a centerline are symmetrical.

10. Omit for 449F.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE,

441F, 446F, 448F and 449F Trim With With 2100(F), 6100(F), 6170(F) or 1800(F) Series

Rim and Vertical Rod Exit Devices Metal Door Preparation

MATERIAL, OR METHOD OF CONSTRUCTION. Contact us for support at 1-855-557-5078.

448F 449F

441F 446F

SUPERSEDES DO NOT SCALE DRAWING 7400-0441 06/15

7400-0441 DATE TEMPLATE NUMBER

01-24
