440F Series Exit Device Trim

Installation Instructions

For use with ASSA ABLOY ACCENTRA™ Exit Devices (Wood and Metal Doors)

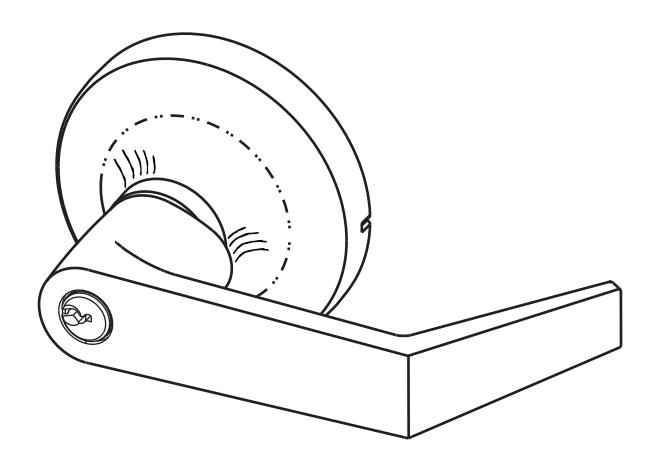

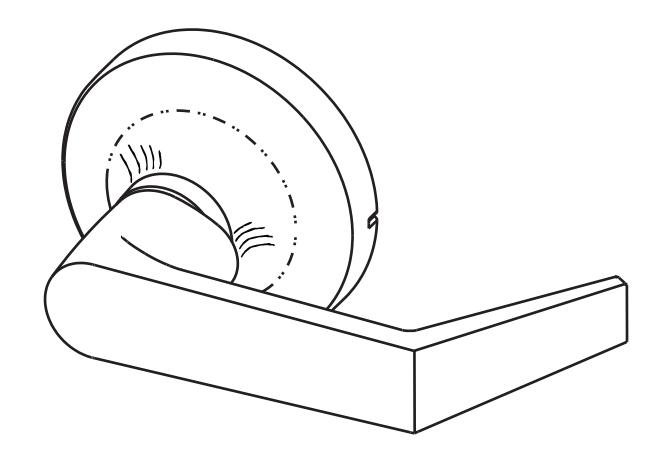

Sectional Lever Trim
LEVER TYPE	TRIM	TYPE	DESCRIPTION	REMARKS
Key In Lever	441F	F03 (NL)	Key retract bolt(s)	Free wheeling lever
	446F	F08	Key locks/unlocks lever	Free wheeling lever
Plain Lever	448F	Passage	Lever retracts bolt(s)	Lever always active
		F02	Dummy trim*	Free wheeling lever
	449F	F02	Dummy trim	Rigid lever

^* Field Prep: Cut tailpiece off, not to engage the device

All dimensions are in inches (mm) unless otherwise noted.

ABBREVIATION	FASTNER DESCRIPTION
PPHMS	PHILLIPS PAN HEAD MACHINE SCREW
PTHMS	PHILLIPS TRUSS HEAD MACHINE SCREW

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

WARNING

Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

80-8470-0441-000 04/24

440F Series Exit Device Trim Installation Instructions

• 1. Check box contents.
• 2. After marking door inside face for device location (Device Instructions), transfer "Vertical Reference Centerline" from inside to outside door face. Follow steps 2a and 2b, at right.
• 3. Transfer "Horizontal Reference Centerline" from inside to outside door face.

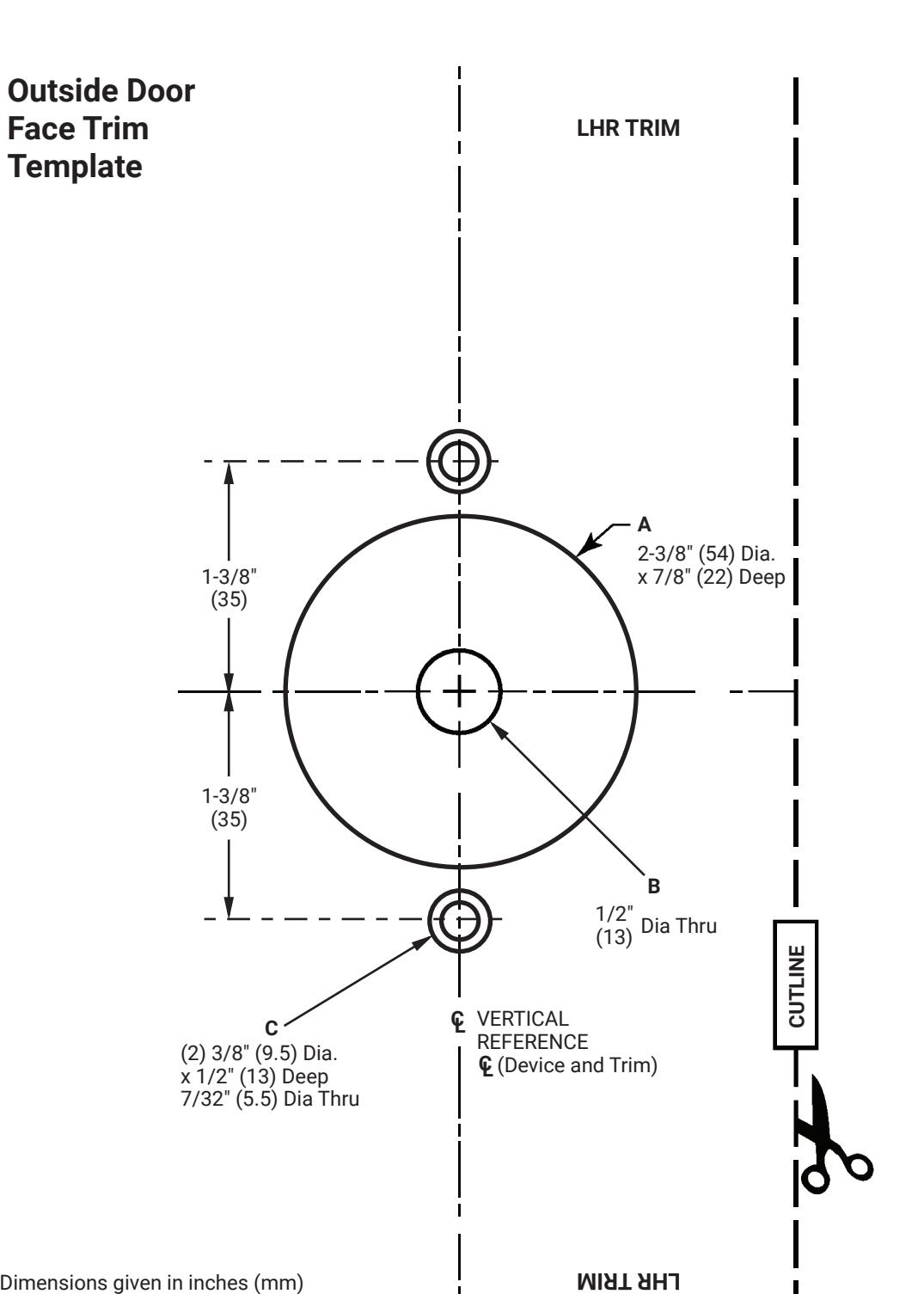

• 4. Orient and align trim template, attach with tape to outside door face.
• 5. Spot holes and prepare door for trim.
• 6. Adjust trim for door thickness (as required).

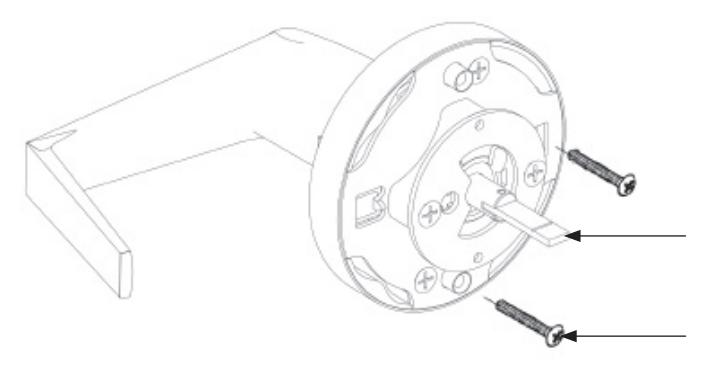

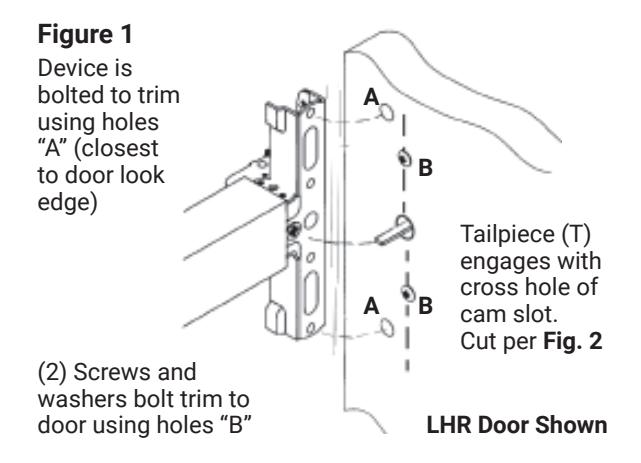

• 7. Mount trim to door thru holes "B" with (2) #10-32 x 2" PTHMS supplied as shown in Fig. 1 .
  • Note: If installing dummy trim, continue as shown in device instructions.

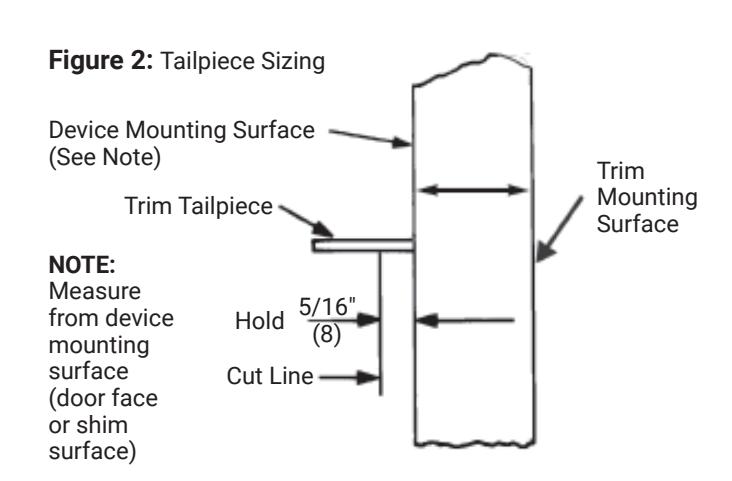

• 8. If required, cut trim tailpiece as shown in Fig. 2 . Seat device so that the trim tailpiece penetrates cam slot as shown in Fig. 1 . Thru mount device to trim thru holes "A" as shown in Fig. 1 using 1/4-20 PPHMS supplied with device.
• 9. Continue as shown in device instructions.

LINE LOCATION.

2b. TRANSFER DIMENSION TO OUTSIDE FACE

Installation Instructions - RHR Shown*

* - Trim Assembly shipped non-handed, rotate assembly 180° for use with LHR application.

Tailpiece

For thick door applications use 60-1500-1819-059 (Ordered Separately) secure with pin

(2) #10-32 x 2" Truss Machine Screws

80-8470-0441-000 04/24

1-855-557-5078 Ext. 2 • www.accentra-assaabloy.com

440F Series

Exit Device Trim Installation Instructions

Standard Cylinder

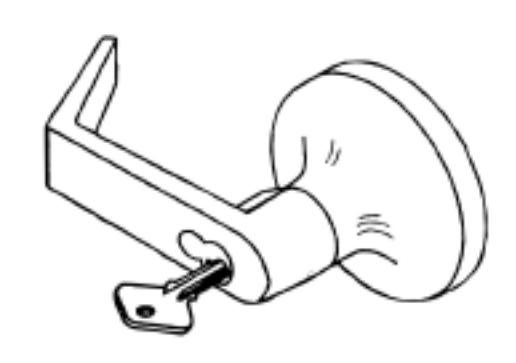

Each 441F and 446F Standard Trim is supplied with one 1802 6-pin random keyed cylinder, and (2) keys. This lever can fit any 6-pin (1802, 5802) cylinder.

To re-key or exchange any of these cylinders, follow steps 3a or 3b shown below.

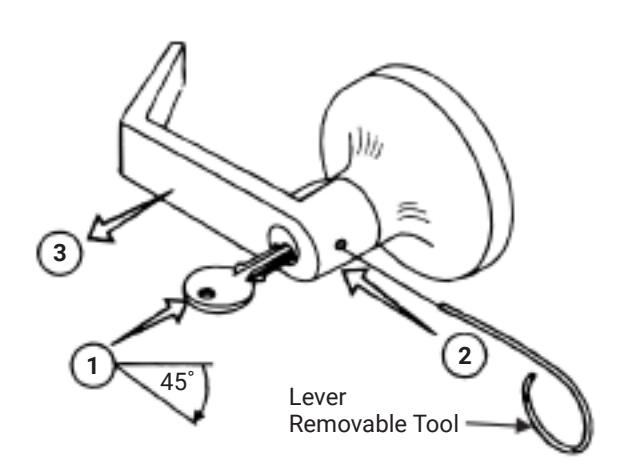

Figure 3a. Lever Handle Removable

• 1. Insert Key & rotate clockwise 45°
• 2. Depress retainer with tool supplied.
• 3. Slide Lever off trim. (Reverse steps to re-assemble.)

Figure 3b. Interchangeable Core Cylinders

Trim levers are specific for the cylinder core used. Levers are not removable. To remove and install the cylinder use the control key supplied with the cylinder.

LFIC, lever for 6-pin cores, 1210 and 5210.

SFIC, lever for 6- or 7-pin cores

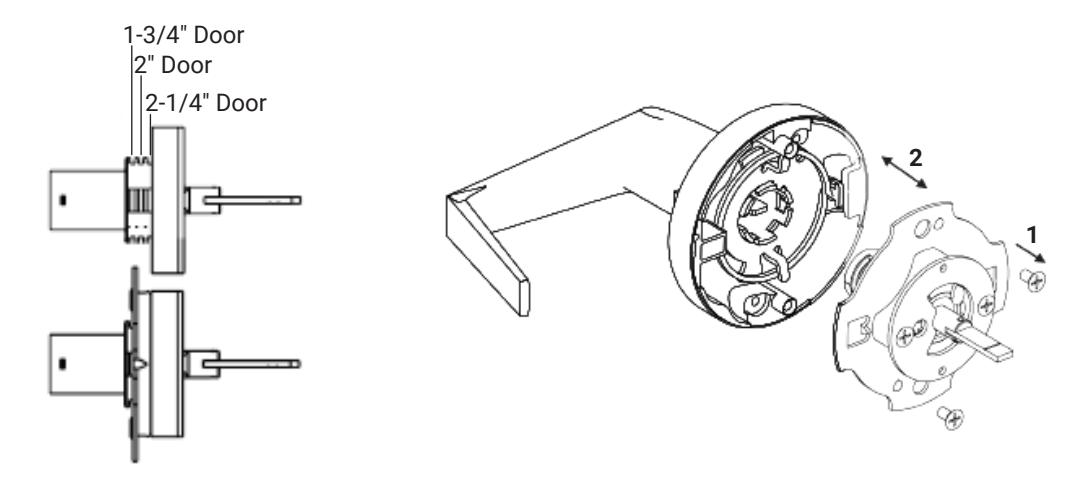

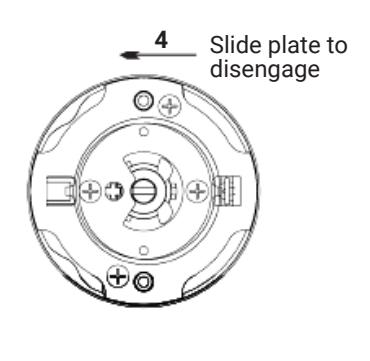

Adjust lock for door thickness (If necessary)

(Lock is packaged preadjusted for 1-3/4" (44 mm) thick doors.) To adjust for a thicker door.

• 1. Remove (2) screws from outside rose plate.
• 2. Slide outside rose away from lock body.

• 3. Adjust rose plate to desired door thickness per illustration below.
• 4. Fasten outside rose to lock body with (2) screws.

80-8470-0441-000 04/24

1-855-557-5078 Ext. 2 • www.accentra-assaabloy.com

440F Series Exit Device Trim Installation Instructions

TRIM	HOLES
441F, 446F, 448F, 449F	A, B, C
For Holes Marked "X" See Below
Metal Doors: Inside Face Outside Face	5/16" (8) Dia. 1/2" (13) Dia.
Wood Doors: 1/2" (13) Dia Thru

CAUTION:

Office copiers and facsimile machines may change the size of a drawing and make the template inaccurate to use as a door marker. If this is not the original template packed with the trim, use only the holes on the door (do not use template as a door marker).
