ASSA ABLOY ACCENTRA 4400ST-DE, 4410ST-DE Door Closer Slide Track, Double Egress Non-Hold Open_7344-0511
Open the original PDF document
View PDF
| Single Step Frame Reveal |
|---|
| Double Step Frame 5/8 (16) Reveal |
NOTES
- 1. Do not scale drawing.
- 2. Right hand door shown.
- 3. Dimensions are in inches (mm).
- 4. Important: From centerline of pivot to end of track 26-7/8" (683mm).
- 5. Charted dimensions measured from door rabbet.
- 6. Minimum ceiling clearance for unit is 2-1/8" (54mm).
- 7. Maximum door opening is 105°.
- 8. Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
- 9. Minimum thickness recommended for reinforcements in hollow-metal doors and frames:
- .1046 (2.66mm) unless otherwise noted.
| Preparation for Fasteners | |||
|---|---|---|---|
| Fasteners | Opening | Fastener Preparation | |
| 8-32 Machine Screw | Metal Frame |
#29 Drill, .136" (3.50mm) Dia.
Tap #8-32 UNC |
|
| 1/4-20 Machine Screw |
Metal
Door or Frame |
#7 Drill, .201" (5.10mm) Dia.
Tap 1/4-20 UNC |
|
| 3/8 Dia. Sex Nut |
Wood or
Composite Door |
3/8 Drill, .375" (9.50mm) Dia.
Thru |
|
Experience a safer and more open world
Copyright © 2005, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
400ST-DE/4400ST-DE Series Non-Hold Open Door Closers 1400ST-DE/4410ST-DE Series Hold Open Door Closers

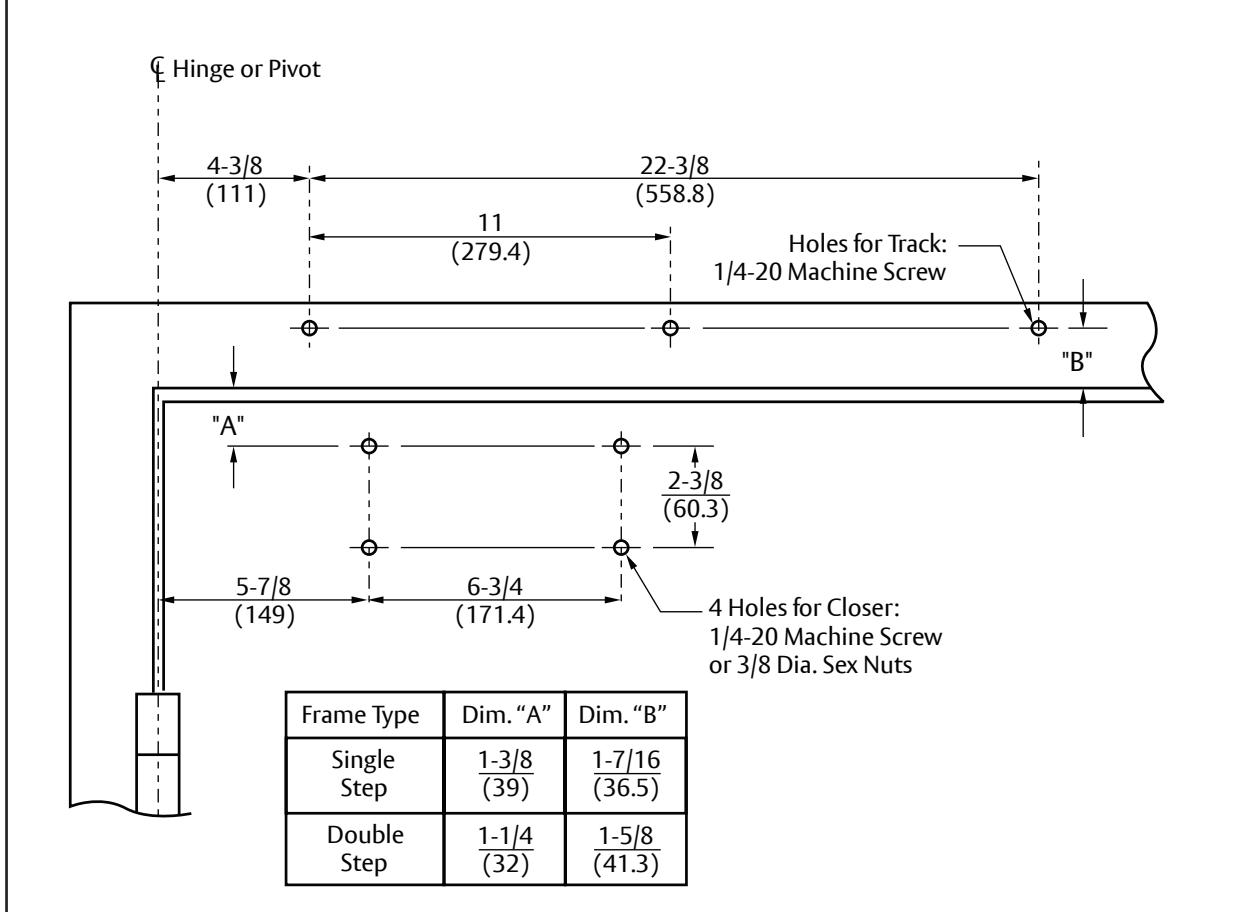

Hinge Side SlideTrack Application For Double Egress Frame Hinge Side Frame Reveals 1/8" to 3" (3 to 76mm)
Template Number: 80-7344-0511-010
Sheet: 1 of 1 Date: 01/24
