ASSA ABLOY ACCENTRA 4400 Series PA4480 Door Closer Parallel Non-Hold Open Arm with or without 488_7344-0209
Open the original PDF document
View PDF| Opening | Dim. "A" | Dim. "B" |
|---|---|---|
| To 100° | 8-3/4 (222) | 9-1/4 (235) |
| 100° to 120° | 7-3/4 (197) | 8-1/4 (210) |
| 120° to 150° | 6-3/4 (171) | 7-1/4 (184) |
| 150° to 180° | 5-3/4 (146) | 6-1/4 (159) |
Caution: Door swing may be limited by door, frame, wall or hardware conditions.

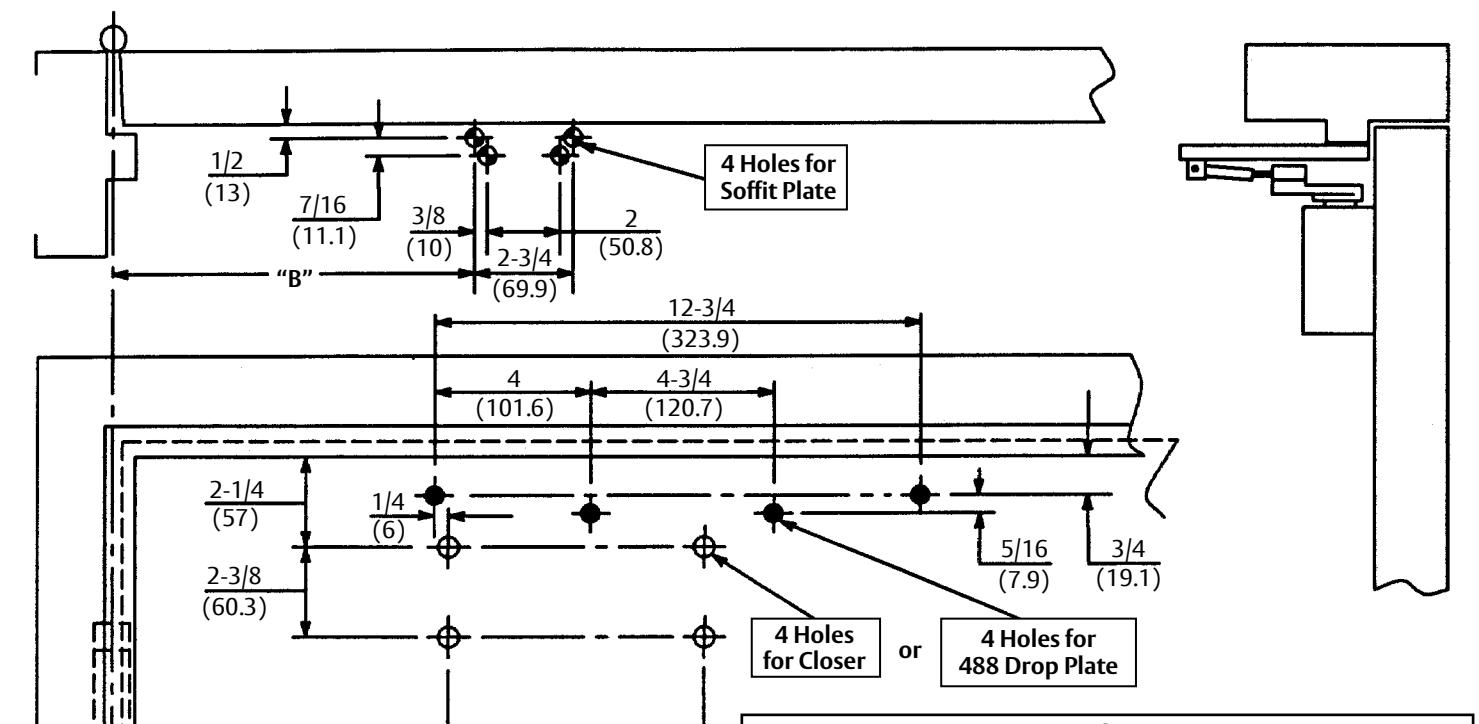

Notes:
- 1. Do not scale drawing.
- 2. Left hand door shown.
- 3. Dimensions are in inches (mm).
- 4. Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
Hinge or Pivot
- 5. Sex bolts may be required for wood or plastic faced fire door mounting.
- 6. Minimum thickness recommended for reinforcements in hollow metal doors and frames: 0.1046" (2.66mm) unless otherwise noted.
| Preparation for Fasteners | ||||
|---|---|---|---|---|
| Fasteners |
Door or
Frame |
Drill Sizes | ||
| Standard |
#14 type "A"
S.M. Screw Arm: 1-1/4" (32mm) Closer: 2-3/4" (70mm) |
Wood | 7/32" (5.5mm) | |
| Aluminum | ||||
| 1/4-20 machine screw | Metal |
drill: #7 (.201")
tap: 1/4-20 |
||
| Optional | Sex nuts and bolts |
Hollow
Metal |
9/32" (7.00mm) thru;
3/8" (9.50mm) on door or transom face opposite to closer |
|
|
Aluminum
or Wood |
3/8" (9.50mm) thru | |||
|
Thru bolts and
grommet nuts |
All |
9/32" (7.00mm) thru;
3/8" (9.50mm) dia. x 3/8" (10mm) deep on door or transom face opposite to closer |
||
Copyright © 2004, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
PA2400 Series Door Closer - Sized 2 thru 6 PA4480 Series Door Closer - Multi-Size 1 to 6 With or Without 488 Drop Plate Parallel Non-Hold Open Low Profile Arm Application
"A" (171.5)
6-3/4
Template Number: 7344-0209 Sheet: 1 of 1
Date: 12/23
