ASSA ABLOY ACCENTRA 4400 Series PA4410 Door Closer Parallel Hold Open Arm with or without 488 Plate_7344-0211
Open the original PDF document

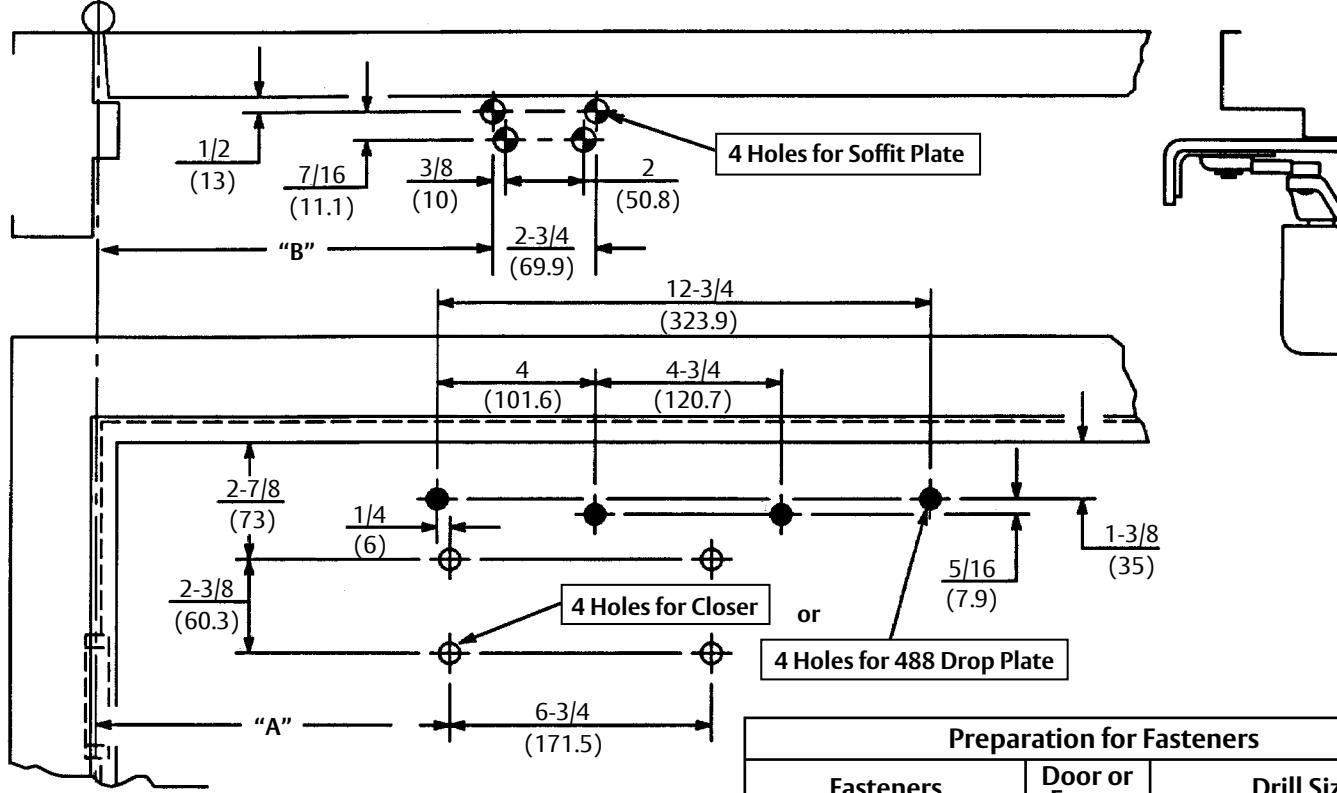

View PDF| Opening | Dim. "A" | Dim. "B" |
|---|---|---|
| To 100° | 8-3/4 (222) | 9-1/4 (235) |
| 100° to 120° | 100° to 120° 7-1/4 (184) | |
| 120° to 150° | 6-1/4 (159) | 6-3/4 (171) |
| 150° to 180° | 5-1/4 (133) | 5-3/4 (146) |
Caution: Door swing may be limited by door, frame, wall or hardware conditions.
Notes:
- 1. Do not scale drawing.
- 2. Left hand door shown.
- 3. Dimensions are in inches (mm).
- 4. Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
C Hinge or Pivot
5. Minimum thickness recommended for reinforcements in hollow metal doors and frames: 0.1046" (2.66mm) unless otherwise noted.
| Preparation for Fasteners | |||||
|---|---|---|---|---|---|
| Fasteners |
Door or
Frame |
Drill Sizes | |||
| Standard |
#14 type "A"
S.M. Screw Arm: 1-1/4" (32mm) Closer: 2-3/4" (70mm) |
Wood | 7/32" (5.5mm) | ||
| Aluminum | |||||
| 1/4-20 machine screw | Metal |
drill: #7 (.201")
tap: 1/4-20 |
|||
| Sex nuts and bolts |
Hollow
Metal |
9/32" (7.00mm) thru;
3/8" (9.50mm) on door or transom face opposite to closer |
|||
| Optional |
Aluminum
or Wood |
3/8" (9.50mm) thru | |||
| Thru bolts and grommet nuts | All |
9/32" (7.00mm) thru;
3/8" (9.50mm) dia. x 3/8" (10mm) deep on door or transom face opposite to closer |
|||
Experience a safer and more open world
Copyright © 2004, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
PA1400 Series Door Closer - Sized 2 thru 6 PA 4410 Series Door Closer - Multi-Size 1 to 6 With or Without 488 Drop Plate Parallel Hold Open Arm Application
Template Number: 7344-0211 Sheet: 1 of 1
Date: 12/23
