ASSA ABLOY ACCENTRA 4400 Series PA4410 Door Closer Parallel Hold Open Arm with 589L Bracket_80-7344-0215-010

Printed In U.S.A.

80-7344-0215-010

Caution: Door swing may be limited by door, frame, wall or hardware conditions.

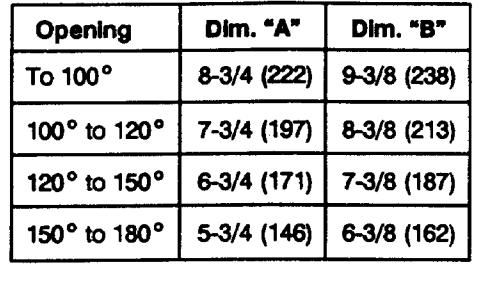

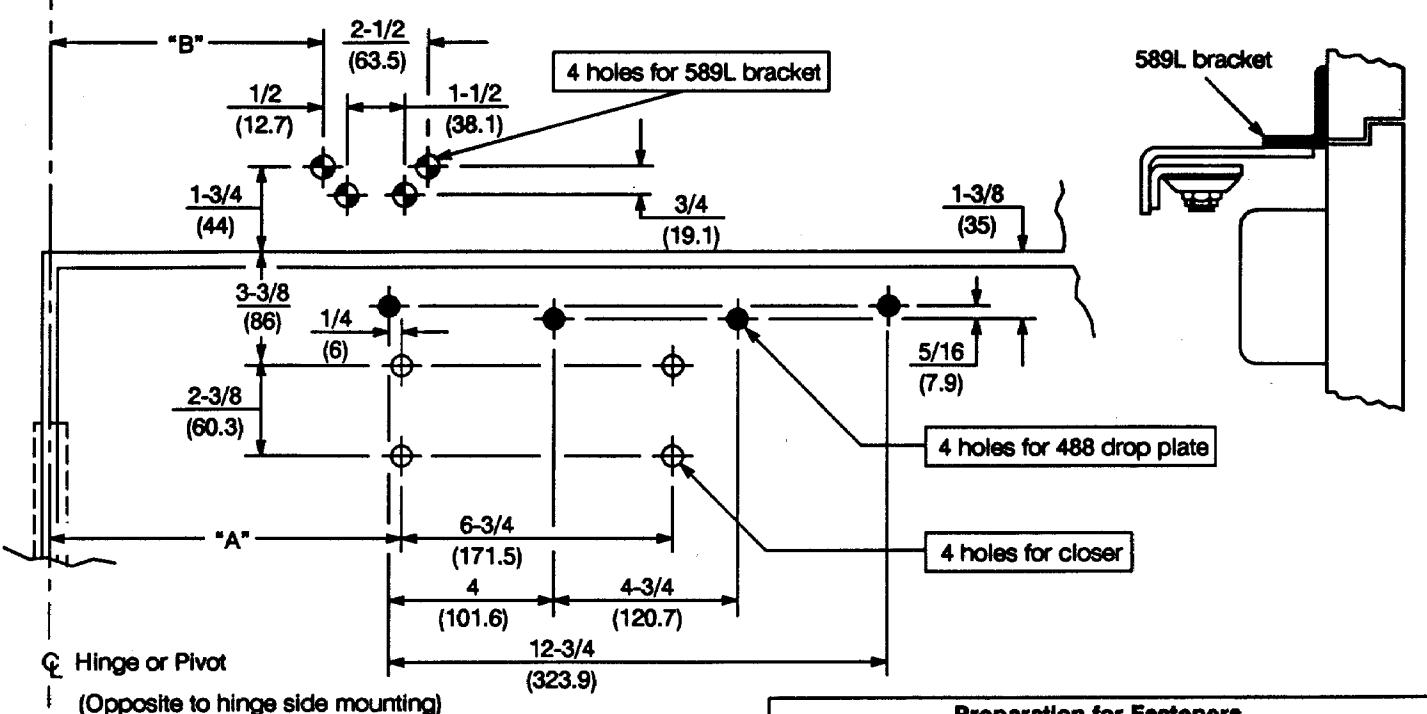

Notes:

• 1. Do not scale drawing.
• 2. Left hand door shown.
• 3. Dimensions are in inches (mm).
• 4. Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
• 5. Sex bolts may be required for wood or plastic faced fire door mounting.
• 6. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.
• 7. Hold Open Arm closers without fusible -link release are not permitted to be used on fire doors.

Preparation for Fasteners
Fasteners		Door or Frame	Drill Sizes
Standard	#14 type "A" S.M. screw Arm: 1-1/4" (32mm) Closer: 2-3/4" (70mm)	Wood	7/32" (5.5mm)
		Aluminum
	1/4-20 machine screw	Metal	drill: #7 (.201") tap: 1/4-20
Optional	Sex nuts and bolts	Hollow Metal	9/32" (7.00mm) thru; 3/8" (9.50mm) on door or transom face opposite to closer
		Aluminum or Wood	3/8" (9.50mm) thru
	Thru bolts and grommet nuts	Ali	9/32" (7.00mm) thru; 3/8" (9.50mm) dia. x 3/8" (10mm) deep on door or transom face opposite to closer

PA1400 Series Door Closer – Sized 2 thru 6 (PA)4410 Series Door Closer – Multi-Size 2 to 6 With 589L Adaptor Bracket and With or Without 488 Drop Plate Parallel Hold Open

Yale

Yale Security Inc.

1902 Airport Road, MONROE, NC 28110

TEMPLATE NUMBER 80-7344-0215-010

5-03
