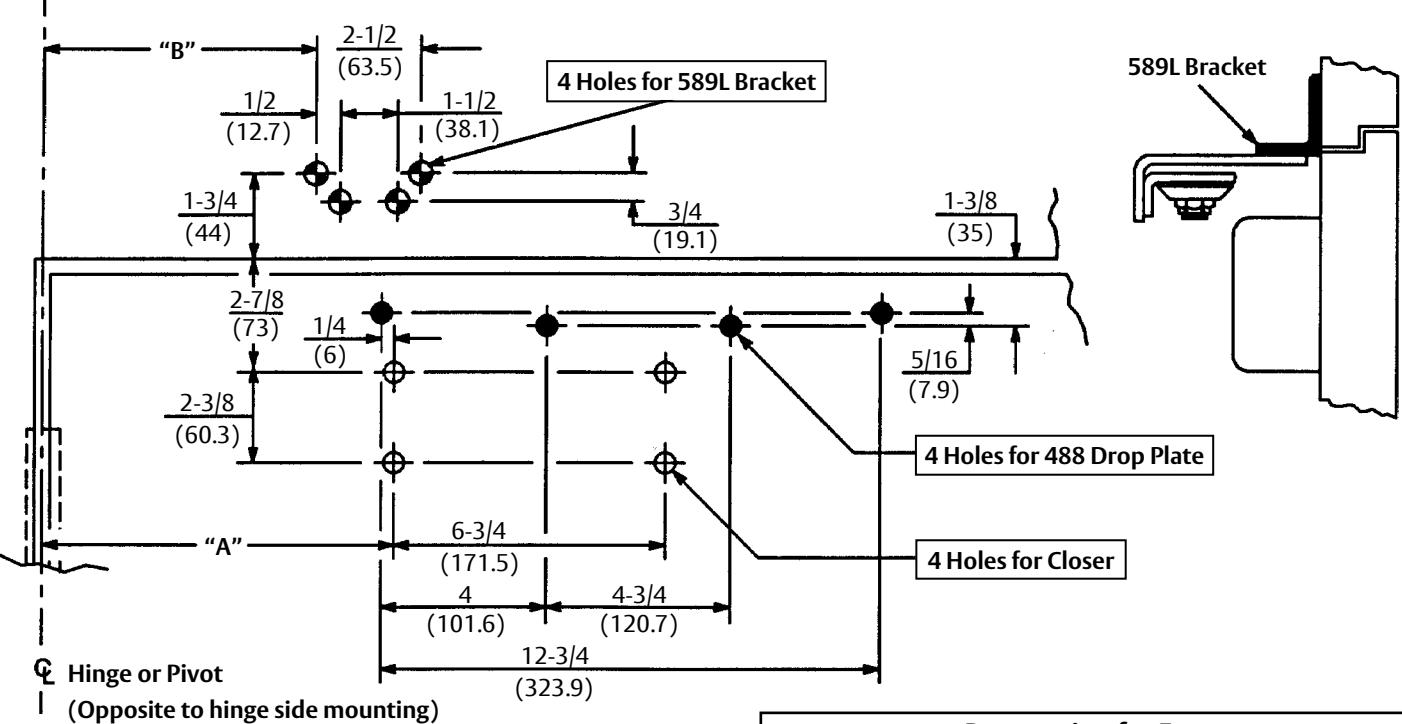

View PDF| Opening | Dim. "A" | Dim. "B" |
|---|---|---|
| To 100° | 8-3/4 (222) | 9-3/8 (238) |
| 100° to 120° | 7-3/4 (197) | |
| 120° to 150° | 6-3/4 (171) | 7-3/8 (187) |
| 150° to 180° | 5-3/4 (146) | 6-3/8 (162) |
Caution: Door swing may be limited by door, frame, wall or hardware conditions.
Notes:
- 1. Do not scale drawing.
- 2. Left hand door shown.
- 3. Dimensions are in inches (mm).
- 4. Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
- 5. Minimum thickness recommended for reinforcements in hollow metal doors and frames: 0.1046" (2.66mm) unless otherwise noted.
| Preparation for Fasteners | ||||
|---|---|---|---|---|
| Fasteners |
Door or
Frame |
Drill Sizes | ||
| Standard |
#14 type "A"
S.M. Screw |
Wood | ||
|
Arm: 1-1/4" (32mm)
Closer: 2-3/4" (70mm) |
Aluminum | 7/32" (5.5mm) | ||
| 1/4-20 machine screw | Metal |
drill: #7 (.201")
tap: 1/4-20 |
||
| Optional | Sex nuts and bolts |
Hollow
Metal |
9/32" (7.00mm) thru;
3/8" (9.50mm) on door or transom face opposite to closer |
|
|
Aluminum
or Wood |
3/8" (9.50mm) thru | |||
|
Thru bolts and
grommet nuts |
All |
9/32" (7.00mm) thru;
3/8" (9.50mm) dia. x 3/8" (10mm) deep on door or transom face opposite to closer |
||
Copyright © 2004, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
PA1400 Series Door Closer - Sized 2 thru 6 (PA)4410 Series Door Closer - Multi-Size 1 to 6 With 589L Adaptor Bracket and With or Without 488 Drop Plate Parallel Hold Open Arm Application Date: 12/23
Template Number: 7344-0212 Sheet: 1 of 1
