ASSA ABLOY ACCENTRA 4400 Series PA4400 Door Closer Parallel Non-Hold Open Arm with 589L Bracket_7344-0206
Open the original PDF document
View PDF| Opening | Dim. "A" | Dim. "B" |
|---|---|---|
| To 100° | 8-3/4 (222) | 9-3/8 (238) |
| 100° to 120° | 7-3/4 (197) | 8-3/8 (213) |
| 120° to 150° | 6-3/4 (171) | 7-3/8 (187) |
| 150° to 180° | 5-3/4 (146) | 6-3/8 (162) |
Caution: Door swing may be limited by door, frame, wall or hardware conditions
Notes:
- 1. Do not scale drawing.
- 2. Left hand door shown.
- 3. Dimensions are in inches (mm).
- 4. Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
- 5. Sex bolts may be required for wood or plastic faced fire door mounting.
- 6. Minimum thickness recommended for reinforcements in hollow metal doors and frames: 0.1046" (2.66mm) unless otherwise noted.
| 1 | Preparation for Fasteners | |||
|---|---|---|---|---|
| Fasteners |
Door or
Frame |
Drill Sizes | ||
| - | Standard |
#14 type "A"
S.M. Screw Arm: 1-1/4" (32mm) Closer: 2-3/4" (70mm) |
Wood | 712211/5 5 |
| Aluminum | 7/32" (5.5mm) | |||
| 1/4-20 machine screw | Metal |
drill: #7 (.201")
tap: 1/4-20 |
||
| Optional | Sex nuts and bolts |
Hollow
Metal |
9/32" (7.00mm) thru;
3/8" (9.50mm) on door or transom face opposite to closer |
|
|
Aluminum
or Wood |
3/8" (9.50mm) thru | |||
| Thru bolts and grommet nuts | All |
9/32" (7.00mm) thru;
3/8" (9.50mm) dia. x 3/8" (10mm) deep on door or transom face opposite to closer |
||
Experience a safer and more open world
Copyright © 2004, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

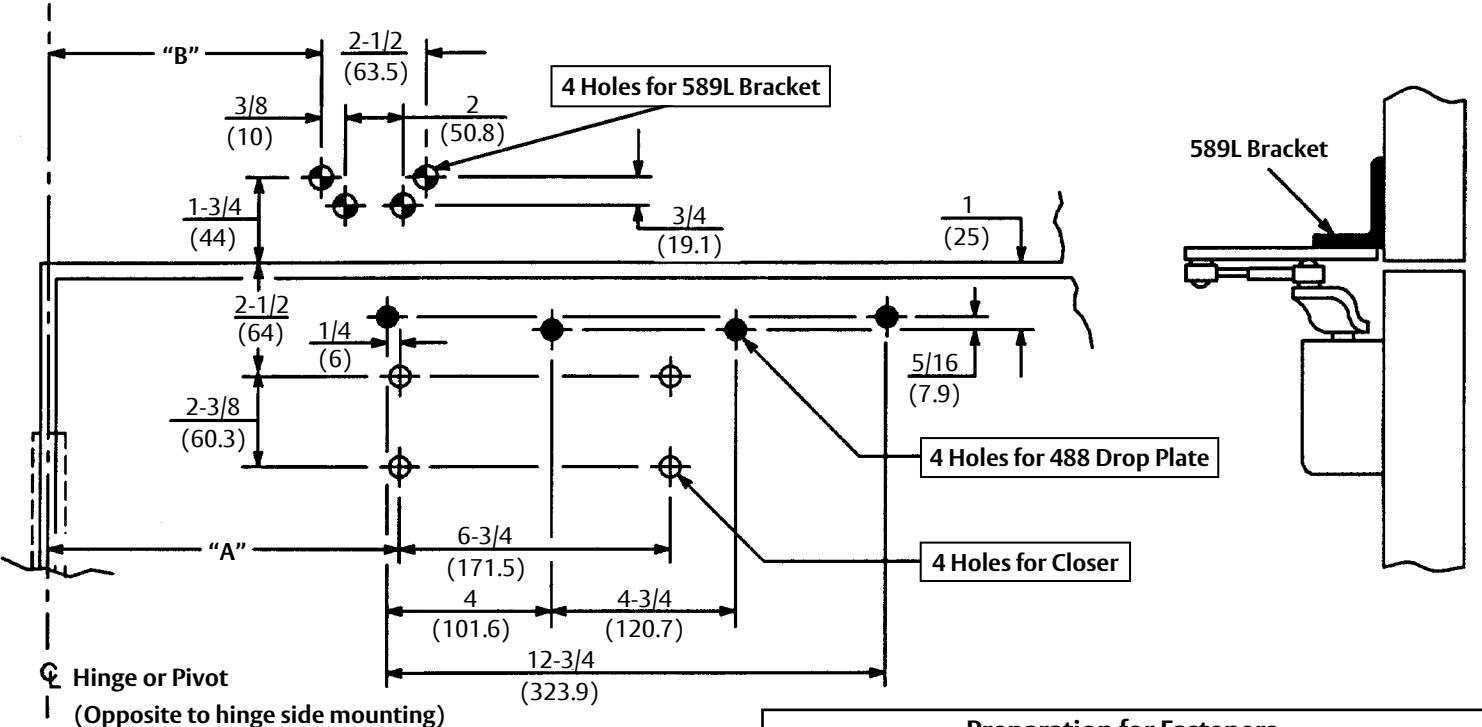

PA400 Series Door Closer - Sized 2 thru 6 PA4400 Series Door Closer - Multi-Size 1 to 6 With 589L Adaptor Bracket and With or Without 488 Drop Plate Parallel Non-Hold Open Arm Application
Template Number: 7344-0206 Sheet: 1 of 1
Date: 12/23
