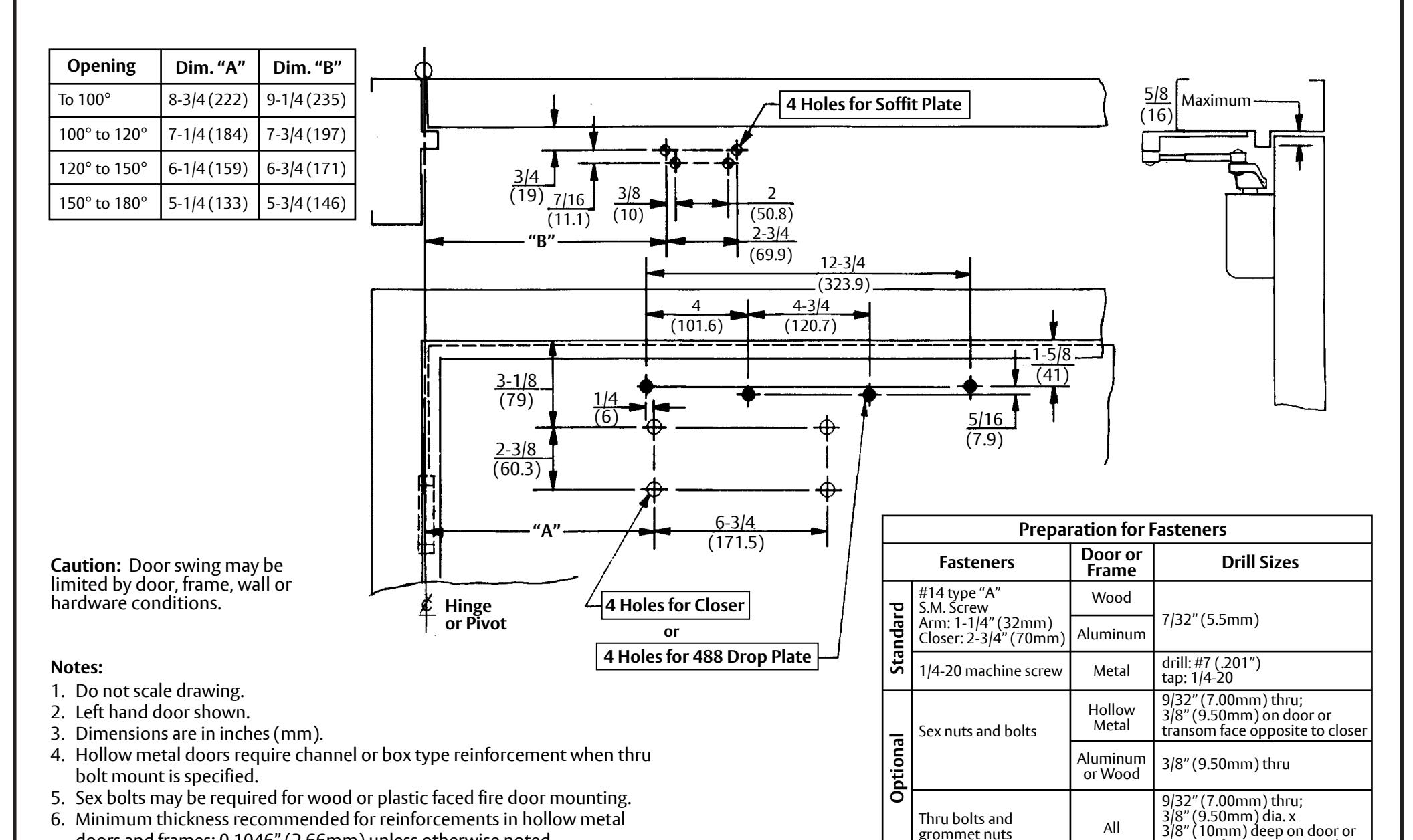

ASSA ABLOY ACCENTRA 4400 Series PA4400 Door Closer Parallel Non-Hold Open Arm with 299 Plate_7344-0205

PA400 Series Door Closer - Sized 2 thru 6 PA 4400 Series Door Closer - Multi-Size 1 to 6 With 299 Soffit Plate and With or Without 488 Drop Plate Parallel Non-Hold Open Arm Application Date: 12/23

Template Number: 7344-0205 Sheet: 1 of 1

grommet nuts

transom face opposite to closer

1-855-557-5078 www.assaabloy.com

doors and frames: 0.1046" (2.66mm) unless otherwise noted.
