ASSA ABLOY ACCENTRA 4400 Series PA4400 Door Closer Parallel Non-Hold Open Arm with 297 Plate_7344-0204
Open the original PDF document
View PDF
Caution: Door swing may be limited by door, frame, wall or hardware conditions.
Notes:
- 1. Do not scale drawing.
- 2. Left hand door shown.
- 3. Dimensions are in inches (mm).
- 4. Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
Hinge
or Pivot
- 5. Sex bolts may be required for wood or plastic faced fire door mounting.
- 6. Minimum thickness recommended for reinforcements in hollow metal doors and frames: 0.1046" (2.66mm) unless otherwise noted.
| Preparation for Fasteners | |||
|---|---|---|---|
| Fasteners |
Door or
Frame |
Drill Sizes | |
| Standard |
#14 type "A"
S.M. Screw Arm: 1-1/4" (32mm) Closer: 2-3/4" (70mm) |
Wood | 7/32" (5.5mm) |
| Aluminum | |||
| Sta | 1/4-20 machine screw | Metal |
drill: #7 (.201")
tap: 1/4-20 |
| _ | Sex nuts and bolts |
Hollow
Metal |
9/32" (7.00mm) thru;
3/8" (9.50mm) on door or transom face opposite to closer |
| Optional |
Aluminum
or Wood |
3/8" (9.50mm) thru | |
| 0 | Thru bolts and grommet nuts | All |
9/32" (7.00mm) thru;
3/8" (9.50mm) dia. x 3/8" (10mm) deep on door or transom face opposite to closer |
Experience a safer and more open world
Copyright 2004, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

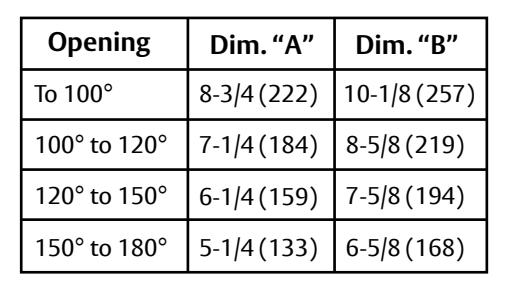

PA400 Series Door Closer - Sized 2 thru 6 PA 4400 Series Door Closer - Multi-Size 1 to 6 With 297 Soffit Plate and With or Without 488 Drop Plate Parallel Non-Hold Open Arm Application

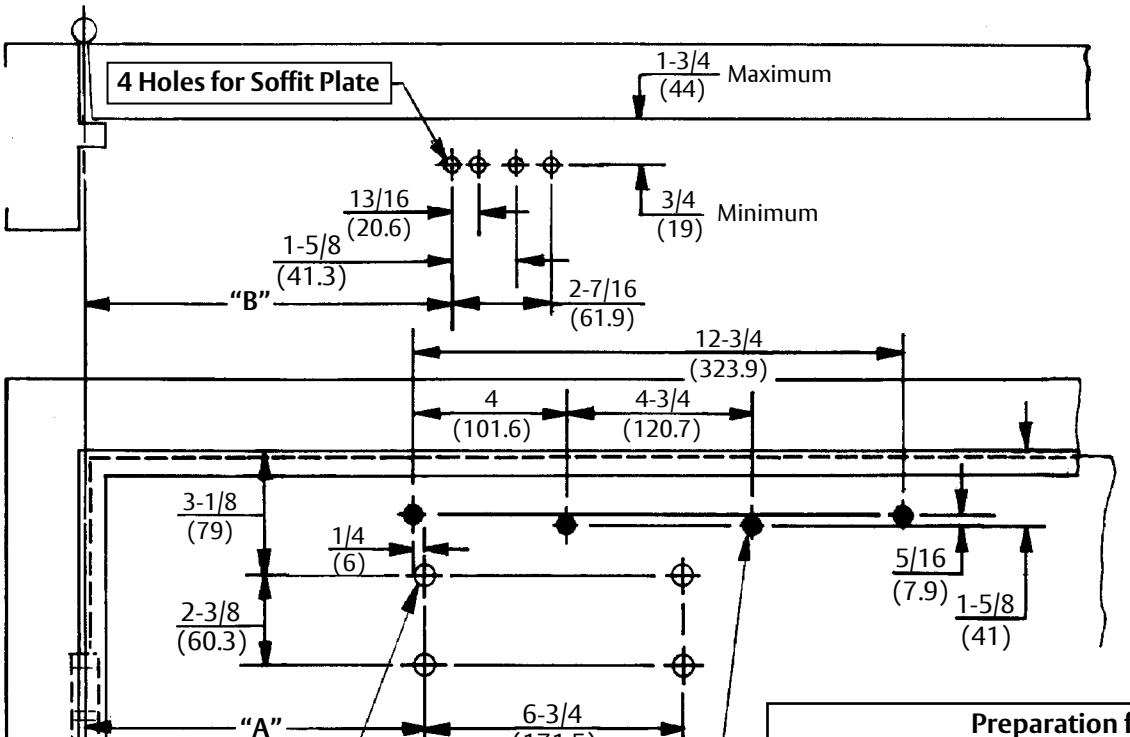

4 Holes for Closer
4 Holes for 488 Drop Plate
Template Number: 7344-0204 Sheet: 1 of 1
