ASSA ABLOY ACCENTRA 4400 Series PA4400 Door Closer Parallel Non-Hold Open Arm for 180 door swing_7344-0214

#14 SMS Type A 3/16" (4.8 mm) Arm: 1-1/4" (32mm) Wood Pilot Hole Required Closer: 2-3/4" (70mm) Drill: #7 (0.201" dia.) 1/4" - 20 machine screw Metal Tap: 1/4 - 20 9/32" (7 mm) through; Hollow

Preparation for Fasteners

Door or Frame

3/8" (9.5 mm) door or transom-face opposite Metal Sex nuts and bolts to closer Aluminum

3/8" (9.5 mm) through or Wood Optional

9/32" (7 mm)thru; 3/8" (9.5 mm) dia. x Through-bolts and Αll 3/8" (9.5 mm) deep on grommet-nuts door or transom-face

Notes:

• 1. Do not scale drawing.
• 2. Left hand door shown.
• 3. Dimensions are in inches (mm).
• 4. Caution: Door swing may be limited by door, frame, wall, or hardware conditions.
• 5. Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
• 6. Sex-bolts required for wood or plastic faced fire-door mounting.
• 7. Minimum thickness recommended for reinforcements in hollowmetal doors and frames: .1046 (2.66mm) unless otherwise noted.

Experience a safer and more open world

Copyright © 2008, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

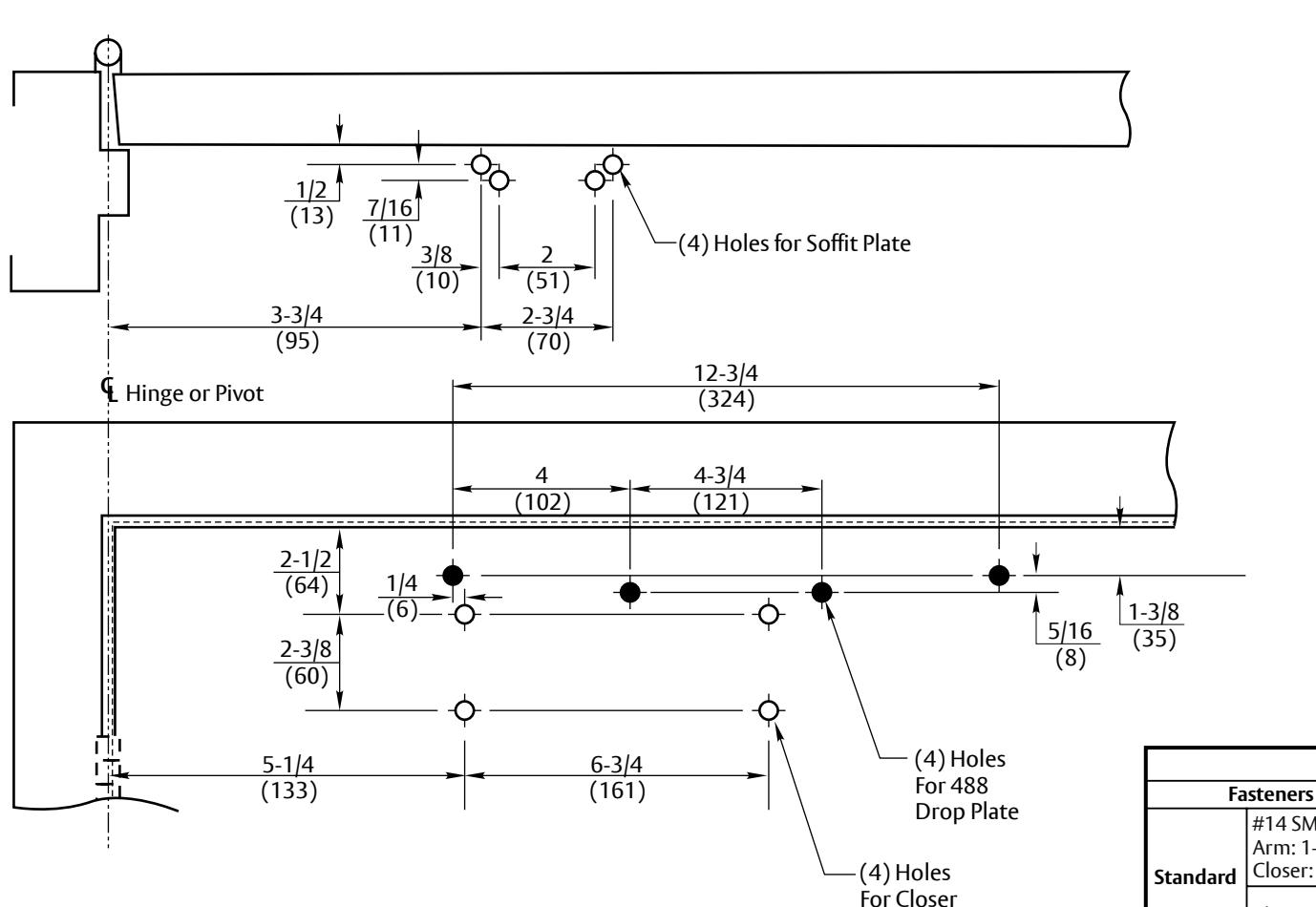

PA4400 or PA400 Series Door Closers x 400-5A Arm Assembly For 180° Door Swing Using Wide Throw Hinges - 8" (200mm) Max. With or Without 488 Drop Plate Non-Hold Open Parallel Arm Application Door Closer Sizes: 4400 (1 thru 6); 400 (2, 3, 4, 5, or 6)

Template Number: 7344-0214 Sheet: 1 of 1

Date: 12/23

ASSA ABLOY

opposite to closer

Drill-Sizes

1-855-557-5078 www.assaabloy.com
