ASSA ABLOY ACCENTRA 4400 Series 4480 Door Closer Regular Low Profile Non-Hold Open Arm Multi-Size 1_7344-0110

1-3/4

(44.5)

4-3/8

(111.1)

80-7344-0110-010

Printed in U.S.A.

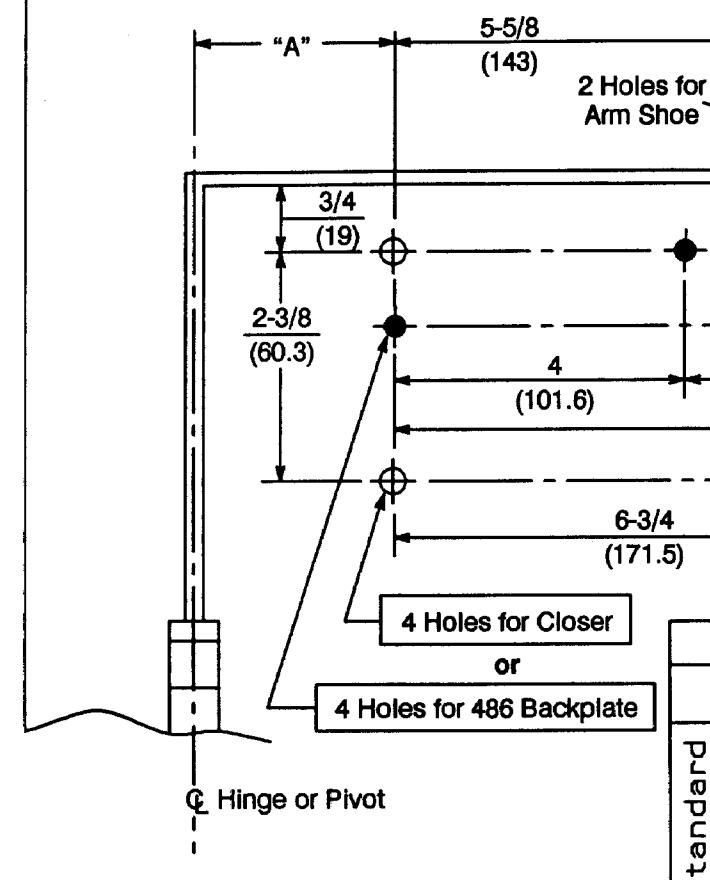

Opening	Dim. "A"
To 100°	7-5/8 (194)
100° to 120°	6-5/8 (168)
120° to 150°	4-5/8 (117)
150° to 180°	4-1/8 (105)

Caution: Door swing may be limited by door, frame, wall or hardware conditions (including closer projection).

Notes:

• 1. Do not scale drawing.
• 2. Right hand door shown.
• 3. Dimensions are in inches (mm).
• 4. Minimum ceiling clearance for door closer arm is 1" (25mm).
• 5. Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
• 6. Sex bolts may be required for wood or plastic faced fire door mounting.
• 7. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.

	Preparation for Fasteners
	Fasteners	Door or Frame	Drill Sizes
Standard	#14 type "A" S.M. screw Arm: 1-1/4" (32mm) Closer: 2-3/4" (70mm)	Wood	7/32" (5.5 mm)
		Aluminum
Sta	1/4-20 machine screw	Metal	drill: #7 (.201") tap: 1/4-20
lal	Sex nuts and bolts	Hollow Metal	9/32" (7.00mm) thru; 3/8" (9.50mm) on door or transom face opposite to closer
Optiona		Aluminum or Wood	3/8" (9.50mm.) thru
	Thru bolts and grommet nuts	All	9/32" (7.00mm) thru; 3/8" (9.50mm) dia. x 3/8" (10mm) deep on door or transom face opposite to closer

1/2

(13)

12-3/8 (314.3)

3/4

(19)

1-1/2

(38)

2400 Series Door Closers - Sized 2 thru 6 4480 Series Door Closers - Multi-Size 1 to 6 With or Without 486 Backplate Regular Low Profile, Non-Hold Open Arm Application
