ASSA ABLOY ACCENTRA 4400 Series 4420(T) Door Closer Holder, Stop Non-Hold Open or Hold Open Arm_7344-0303
Open the original PDF document
View PDF80-7344-0303-010
Caution: Door swing may be limited by door, frame, wall or hardware conditions.
Notes:
- 1. Do not scale drawing
- 2. Left hand door shown.
- 3. Dimensions are in inches (mm).
- 4. Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
- 5. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.6mm) unless otherwise noted.
- 6. Door will swing two degrees beyond hold open point to dead stop position.
- 7. This dimension must be taken from the same surface that 293 soffit plate is mounted to.
- 8. Series 4020T or 4420T are not permitted to be used on fire doors.
|

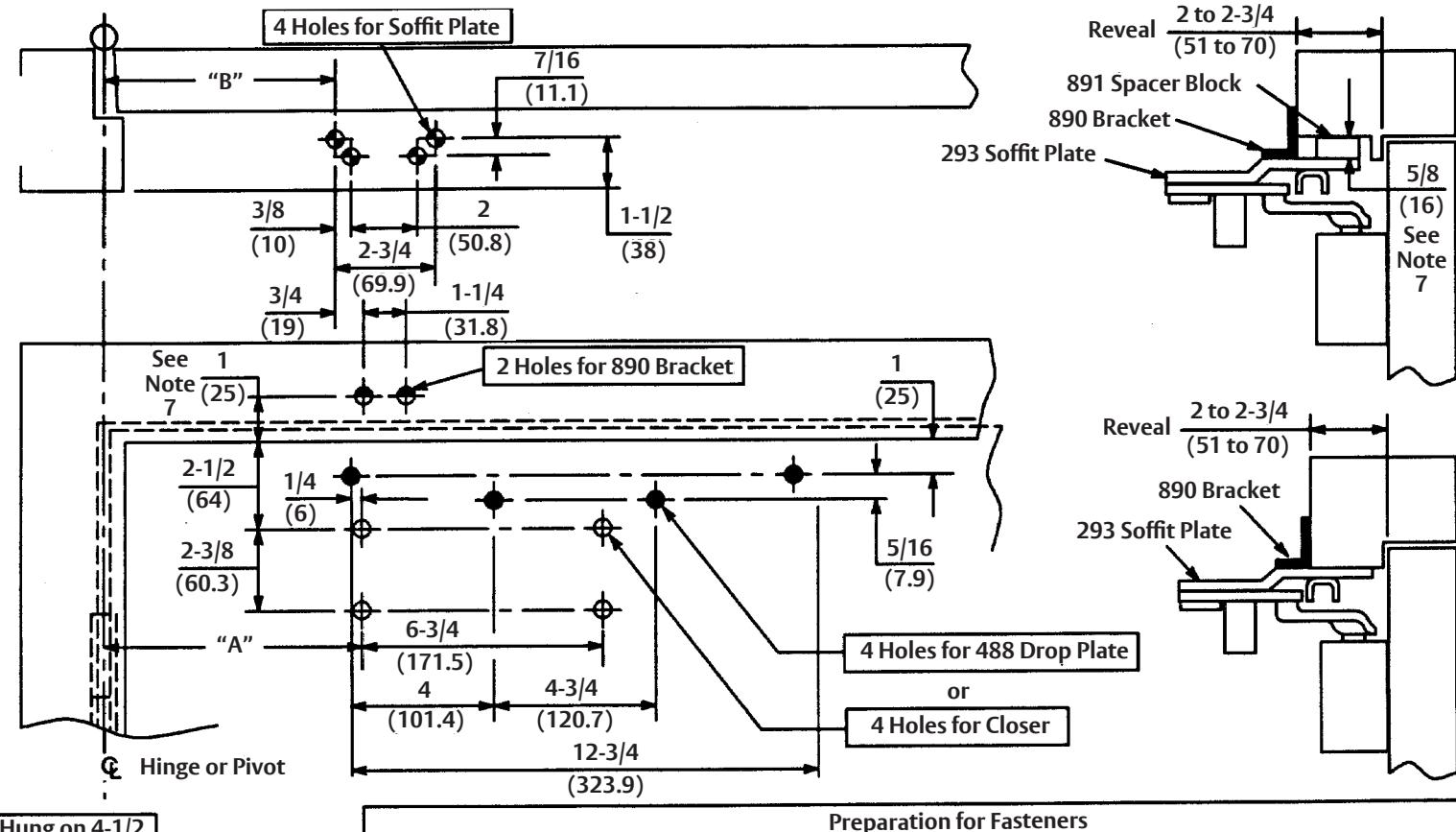

Door Opening
Angle |
1-3/4 (44) Thick Door Hung on 4-1/2
(114) Wide Template Hinges or 3/4 (19) offset Pivots |
||
|---|---|---|---|
|
Hold
Open |
Dead
Stop |
Dim. "A" | Dim. "B" |
| 85° | 90° | 10-1/8 (257) | 10-5/8 (270) |
| 90° | 95° | 9-1/4 (235) | 9-3/4 (248) |
| 95° | 100° | 8-5/8 (219) | 9-1/8 (232) |
| 100° | 105° | 7-7/8 (200) | 8-3/8 (213) |
| 105° | 110° | 7-3/8 (187) | 7-7/8 (200) |
| 110° | 115° | 6-3/4(171) | 7-1/4 (184) |
| Preparation for Fasteners | |||||
|---|---|---|---|---|---|
| Fasteners | To Apply | Door or Frame | Drill Sizes | ||
| Sex Nuts and Bolts | Closer or | Hollow Metal |
9/32" (7.00mm) thru:
3/8" (9.50mm) door face opposite to closer |
||
| Drop Plate |
Aluminum
or Wood |
3/8" (9.50mm) thru | |||
| #14 x 1-1/4" (32mm) | Soffit Plate | Wood | 7/32" (5.5mm) | ||
| type "A" S.M. screw | Aluminum | 7/32 (3.311111) | |||
| 1/4-20 Machine Screw | Metal | drill: #7 (.201") tap: 1/4-20 | |||
| Thru bolts and grommet nuts | Optional | All |
9/32" (7.00mm) thru:
3/8" (9.50mm) dia. x 3/8" (10mm) deep, door face opposite to closer |
||
Experience a safer and more open world
Copyright © 2004, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group. Inc. is prohibited.
4020 or 4020T Series Holder Stop Closer - Sized 2 thru 6 4420 or 4420T Series Holder Stop Closer - Multi-Size 1 to 6 With 890 bracket and With or Without 488 Drop Plate
Template Number: 80-7344-0303-010
Sheet: 1 of 1
Date: 12/23
