ASSA ABLOY ACCENTRA 4400 Series 4420(T) Door Closer Holder, Stop Non-Hold Open or Hold Open Arm_7344-0301

Caution: Door swing may be limited by door, frame, wall or hardware conditions.

Notes:

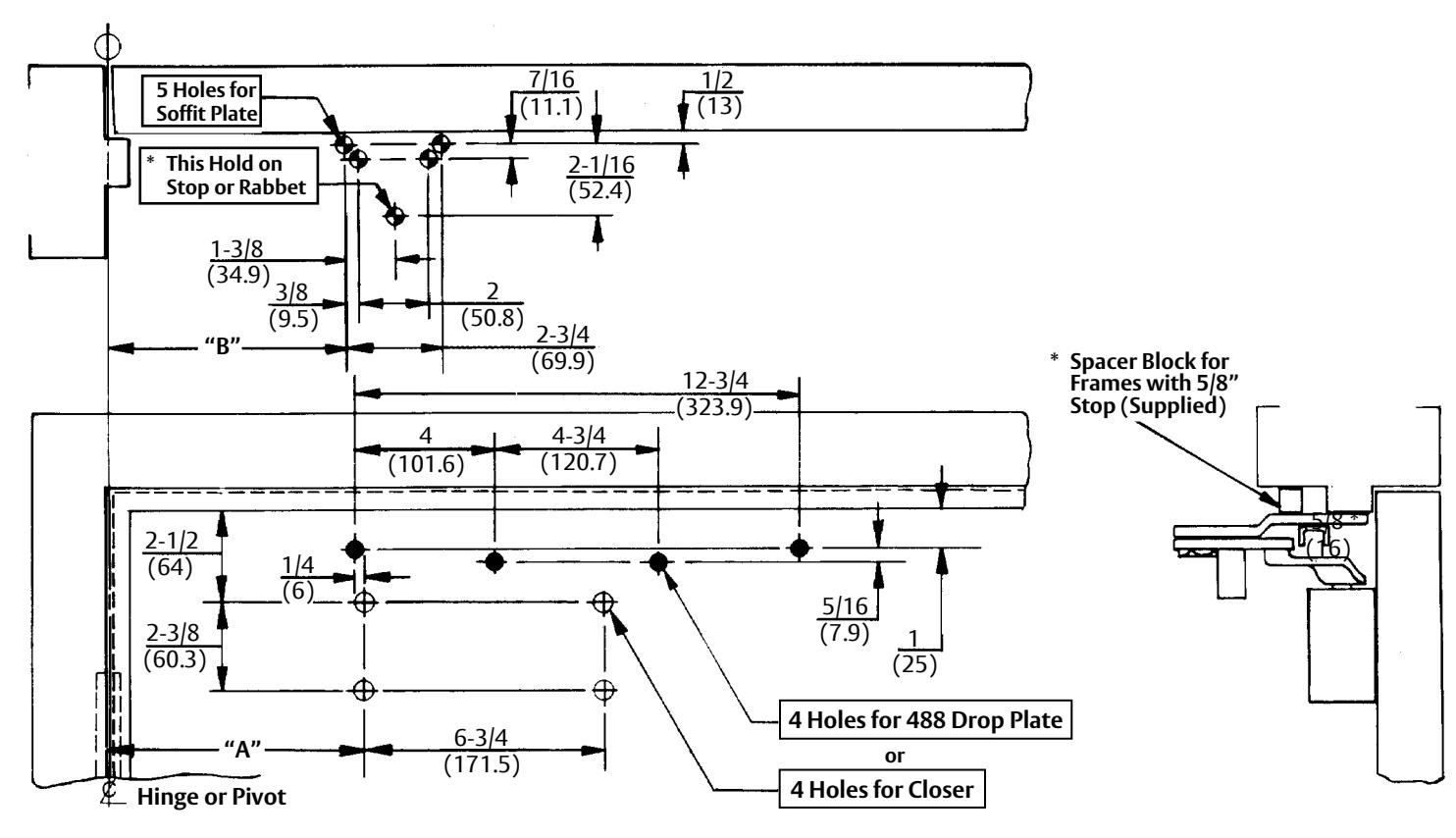

• 1. Do not scale drawing.
• 2. Left hand door shown.
• 3. Dimensions are in inches (mm).
• 4. Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
• 5. Minimum thickness recommended for reinforcements in hollow metal doors and frames: 0.1046" (2.66mm) unless otherwise noted.
• 6. Doors will swing two degrees beyond hold open point to dead stop position.
• 7. Series 4020T or 4420T are not permitted to be used on fire doors.

Door Opening Angle		1-3/4 (44) Thick Door Hung on 4-1/2 (114) Wide Template Hinges or 3/4 (19) Offset Pivots
Hold Open	Dead Stop	Dim. "A"	Dim. "B"
85°	90°	10-1/8 (257)	10-5/8 (270)
90°	95°	9-1/4 (235)	9-3/4 (248)
95°	100°	8-5/8 (219)	9-1/8 (232)
100°	105°	7-7/8 (200)	8-3/8 (213)
105°	110°	7-3/8 (187)	7-7/8 (200)
110°	115°	6-3/4 (171)	7-1/4 (184)

Preparation for Fasteners
Fasteners	To Apply	Door or Frame	Drill Sizes
Sex nuts and bolts	Closer or	Hollow Metal	9/32" (7.00mm) thru; 3/8" (9.50mm) door face opposite to closer
	Drop Plate	Aluminum or Wood	3/8" (9.50mm) thru:
#14 x 1-1/4" (32mm)	Soffit Plate	Wood	7/32" (5.5mm)
type "A" S.M. Screw		Aluminum	1/32 (3.511111)
1/4-20 Machine Screw		Metal	drill: #7 (.201") tap: 1/4-20
Thru bolts and grommet nuts	Optional	All	9/32" (7.00mm) thru; 3/8" (9.50mm) dia. x 3/8" (10mm) deep, door face opposite to closer

Experience a safer and more open world

4020 or 4020T Series Holder Stop Closer - Sized 2 thru 6 4420 or 4420T Series Holder Stop Closer - Multi-Size 1 to 6 With or Without 488 Drop Plate

Template Number: 7344-0301

Sheet: 1 of 1

Date: 12/23
