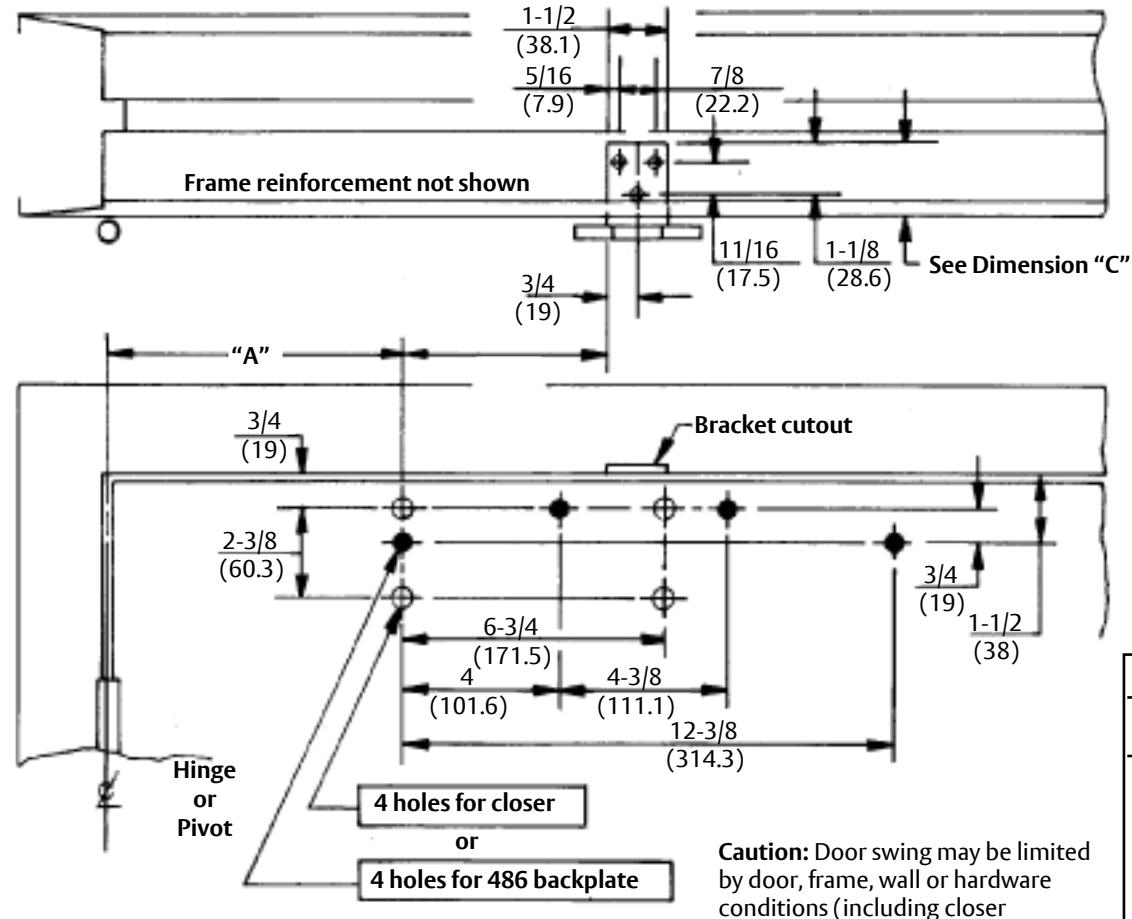

ASSA ABLOY ACCENTRA 4400 Series 4410 Door Closer Regular Hold Open Arm with or without 486 Plate_7344-0107

Opening	Dim. "A"
To 100°	7-5/8 (194)
100 to 120°	6-5/8 (168)
120 to 150°	4-5/8 (117)
150 to 180°	4-1/8 (105)

Notes:

• Do not scale drawing.
• 2. Right hand door shoown.
• Dimensions are in inches (mm).
• Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
• 5. Minimum thickness recommended for reinforcements in hollow metal doors are frames: 1046" (2.66mm) unless other wise noted.

projection).

Frame
292 or 292A Bracket Frame reinforcement Recommended thickness .1793" (4.55mm) minimum
"c" — 1/4 (6.4)
Mortising Detail X - X

	Dim. "B"		Dim. "C"
Bracket	Maximum	Minimum	Maximum
292	2(51)	1-1/2(38)	2-1/4 (57)
292 A	2-3/4 (70)		3 (76)

	Preparation for Fasteners
Fasteners		Door or Frame	Drill Sizes
	#14 type "A" S.M. Screw	Wood	7/32" (5.5 mm)
Standard	Arm: 1-1/4" (32mm) Closer: 2-3/4" (70mm)	Aluminum
Sta	1/4-20 machine screw	Metal	drill: #7 (.201") tap: 1/4-20
	Sex nuts and bolts	Hollow Metal	9/32" (7.00mm) thru; 3/8" (9.50mm) on door or transom face opposite to closer
Optional		Aluminum or Wood	3/8" (9.50mm.) thru
ďo	Thru bolts and grommet nuts	All	9/32" (7.00mm) thru; 3/8" (9.50mm) dia. x 3/8" (10mm) deep on door or transom face opposite to closer

Experience a safer and more open world

Copyright $\backslash bigcirc$ 2004, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

1400 Series Door Closers-Size 2 thru 6

4410 Series Door Closers-Multi-Size 1 to 6 With 292 or 292 or 292A Mortised Bracket and With or Without 486 Backplate Regular Hold Open Arm Application

Template Number: 7344-0107 Sheet: 1 of 1

Date: 12/23
