ASSA ABLOY ACCENTRA 4400 Series 4410 Door Closer Regular Hold Open Arm with or without 486 Plate_7344-0105
Open the original PDF document
View PDF| Opening | Dim. "A" |
|---|---|
| To 100° | 7-5/8 (194) |
| 100 to 120° | 6-5/8 (168) |
| 120 to 150° | 4-5/8 (117) |
| 150 to 180° | 4-1/8 (105) |
Caution: Door swing may be limited by door, frame, wall or hardware conditions (including closer projection).
Notes:
- 1. Do not scale drawing.
- 2. Right hand door shoown.
- 3. Dimensions are in inches (mm).
- 4. Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
- 5. Minimum thickness recommended for reinforcements in hollow metal doors are frames: 1046" (2.66mm) unless other wise noted.
| • | ||||
|---|---|---|---|---|
| ١ | Fasteners |
Door or
Frame |
Drill Sizes | |
| • | #14 type "A" S.M. Screw Arm: 1-1/4" (32mm) Closer: 2-3/4" (70mm) 1/4-20 machine screw | Wood | ||
| Arm: 1-1/4" (32mm) | Aluminum | 7/32" (5.5 mm) | ||
| 1/4-20 machine screw | Metal |
drill: #7 (.201")
tap: 1/4-20 |
||
| Sex nuts and bolts |
Hollow
Metal |
9/32" (7.00mm) thru;
3/8" (9.50mm) on door or transom face opposite to closer |
||
| Optional |
Aluminum
or Wood |
3/8" (9.50mm.) thru | ||
| Ор | Thru bolts and grommet nuts | All |
9/32" (7.00mm) thru;
3/8" (9.50mm) dia. x 3/8" (10mm) deep on door or transom face opposite to closer |
|
Experience a safer and more open world

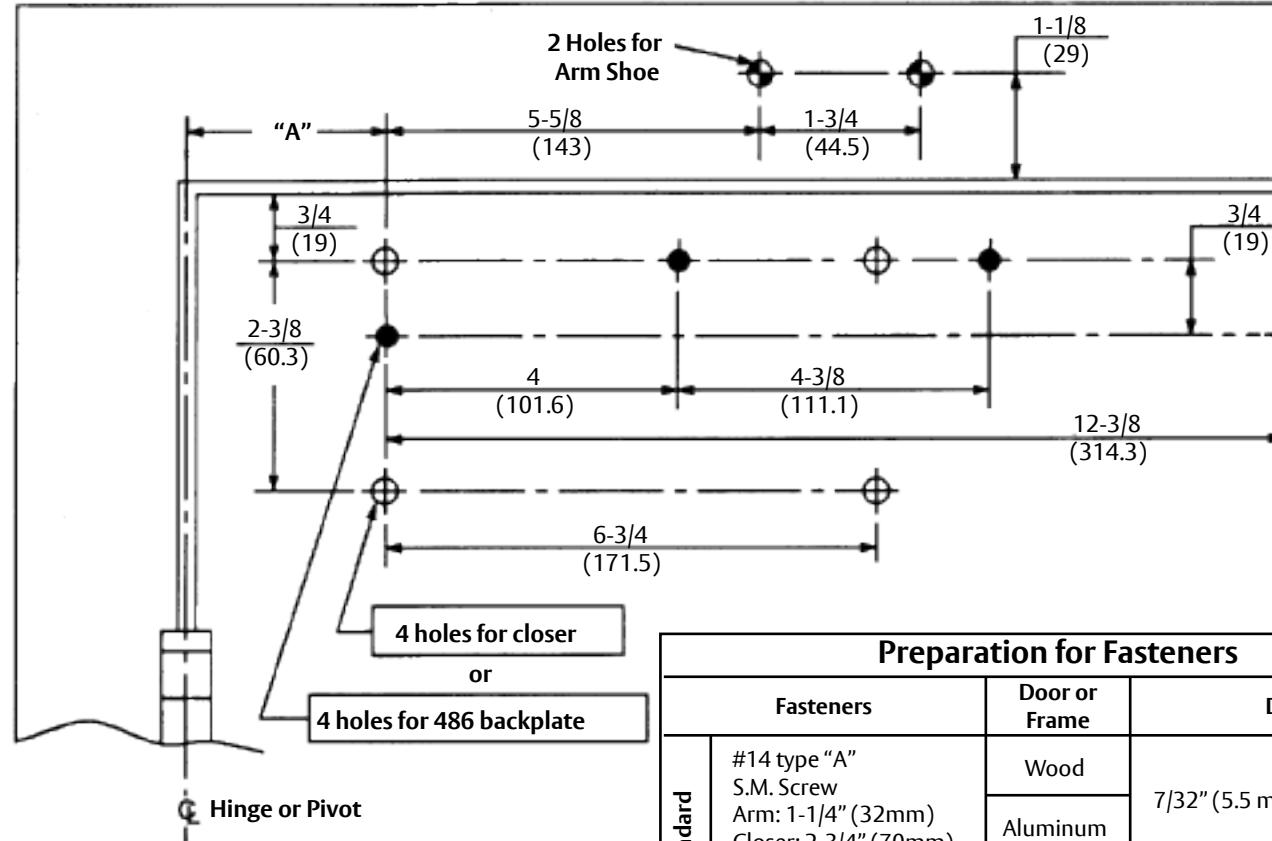

1400 Series Door Closers- Sized 2 thru 6 4410 Series Door Closers-Multi-Size 1 to 6 With or Without 486 Backplate Regular Hold Open Arm Application
Template Number: 7344-0105 Sheet: 1 of 1
Date: 12/23
ASSA ABLOY
1-1/2
