ASSA ABLOY ACCENTRA 4400 Series 4400 Door Closer Regular Non-Hold Open Arm with or without 486 Plate_7344-0103
Open the original PDF document
View PDF

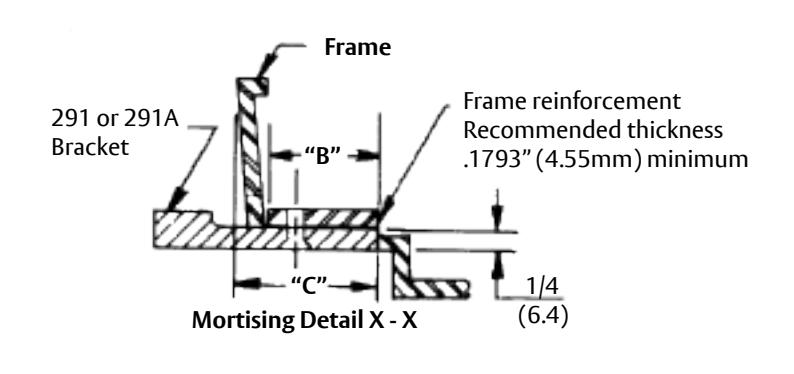

| Bracket | Dim. "B" | Dim. "C" | |
|---|---|---|---|
| Maximum | Minimum | Maximum | |
| 291 | 2(51) | 1-1/2(38) | 2-1/4 (57) |
| 291 A | 2-3/4 (70) | 3 (76) | |
| Preparation for Fasteners | |||||
|---|---|---|---|---|---|
| Fasteners |
Door or
Frame |
Drill Sizes | |||
| Standard |
#14 type "A"
S.M. Screw Arm: 1-1/4" (32mm) Closer: 2-3/4" (70mm) |
Wood | 7/32" (5.5 mm) | ||
| Aluminum | |||||
| 1/4-20 machine screw | Metal |
drill: #7 (.201")
tap: 1/4-20 |
|||
| Optional | Sex nuts and bolts |
Hollow
Metal |
9/32" (7.00mm) thru;
3/8" (9.50mm) on door or transom face opposite to closer |
||
|
Aluminum
or Wood |
3/8" (9.50mm.) thru | ||||
| Thru bolts and grommet nuts | All |
9/32" (7.00mm) thru;
3/8" (9.50mm) dia. x 3/8" (10mm) deep on door or transom face opposite to closer |
|||
Notes:
- 1. Do not scale drawing.
- 2. Right hand door shoown.
- Dimensions are in inches (mm).
- Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
- Sex bolts may be required for wood or plastic faced fire door mounting.
- Minimum thickness recommended for reinforcements in hollow metal doors are frames: 1046" (2.66mm) unless other wise noted.
Experience a safer and more open world
Opening
100 to 120°
120 to 150°
150 to 180°
To 100°
Copyright © 2004, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Dim. "A"
7-5/8 (194)
6-5/8 (168)
4-5/8 (117)
4-1/8 (105)
400 Series Door Closers-Sized 2 thru 6

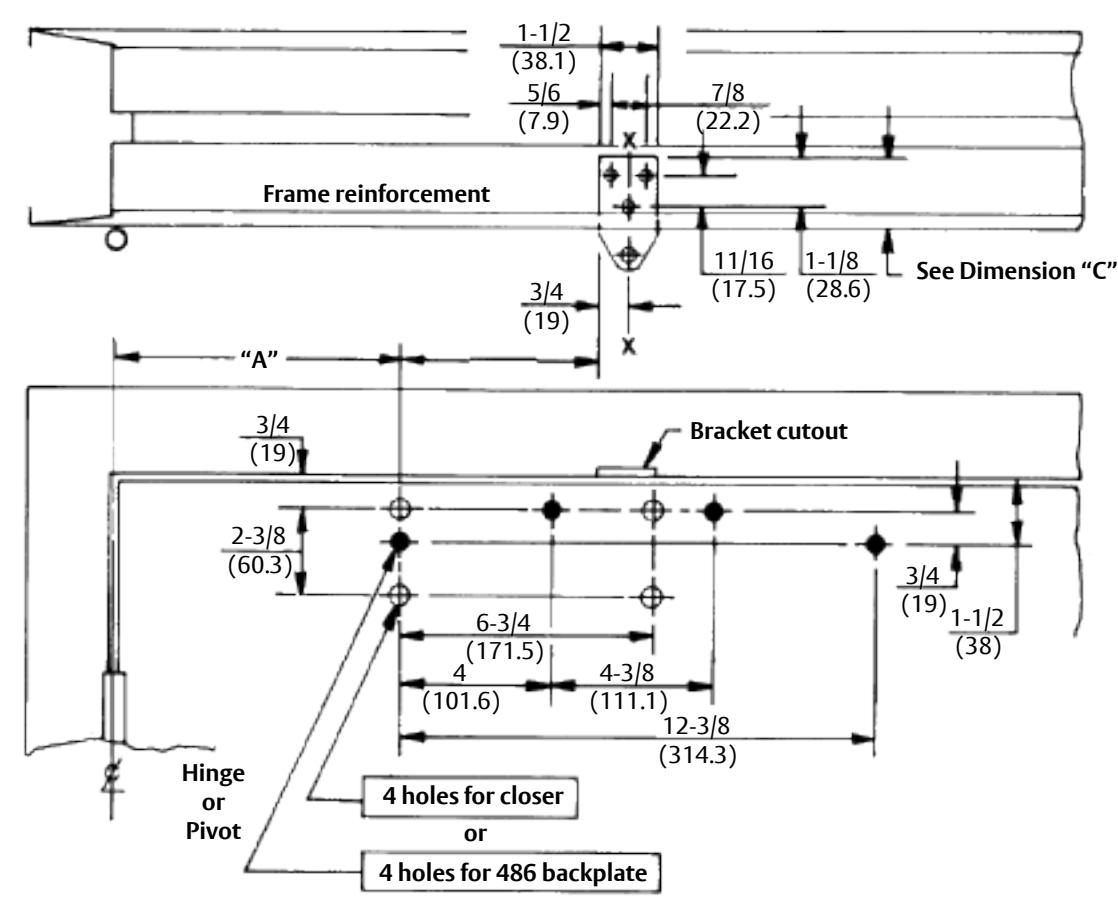

4400 Series Door Closers-Multi-Size 1 to 6 With 291 or 291A Mortised Bracket and With or Without 486 Backplate Regular Non-Hold Open Arm Application
Template Number: 7344-0103 Sheet: 1 of 1
Date: 12/23
ASSA ABLOY
1-855-557-5078 www.assaabloy.com
