ASSA ABLOY ACCENTRA 4400 Series 4400 Door Closer Regular Non-Hold Open Arm with or without 486 Plate_7344-0101
Open the original PDF document
View PDF| Opening | Dim. "A" |
|---|---|
| To 100° | 7-5/8 (194) |
| 100 to 120° | 6-5/8 (168) |
| 120 to 150° | 4-5/8 (117) |
| 150 to 180° | 4-1/8 (105) |
Caution: Door swing may be limited by door, frame, wall or hardware conditions (including closer projection).
Notes
- 1. Do not scale drawing.
- 2. Right hand door shown.
- 3. Dimensions are in inches (mm).
- 4. Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
- 5. Sex bolts may be required for wood or plastic faced fire door mounting.
- 6. Minimum thickness recommended for reinforcements in hollow metal doors and frames: 01046" (2.66mm) unless otherwise noted.
| · · · · · · · · · · · · · · · · · · · | ||||
|---|---|---|---|---|
| ] | Fasteners |
Door or
Frame |
Drill Sizes | |
| 1 | Standard |
#14 type "A"
S.M. Screw |
Wood | 7/32" (5.5 mm) |
|
Arm: 1-1/4" (32mm)
Closer: 2-3/4" (70mm) |
Aluminum | |||
| 1/4-20 machine screw | Metal |
drill: #7 (.201")
tap: 1/4-20 |
||
| Sex nuts and bolts |
Hollow
Metal |
9/32" (7.00mm) thru;
3/8" (9.50mm) on door or transom face opposite to closer |
||
| Optional |
Aluminum
or Wood |
3/8" (9.50mm.) thru | ||
| do | Thru bolts and grommet nuts | All |
9/32" (7.00mm) thru;
3/8" (9.50mm) dia. x 3/8" (10mm) deep on door or transom face opposite to closer |
|
Experience a safer and more open world
Copyright © 2004, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

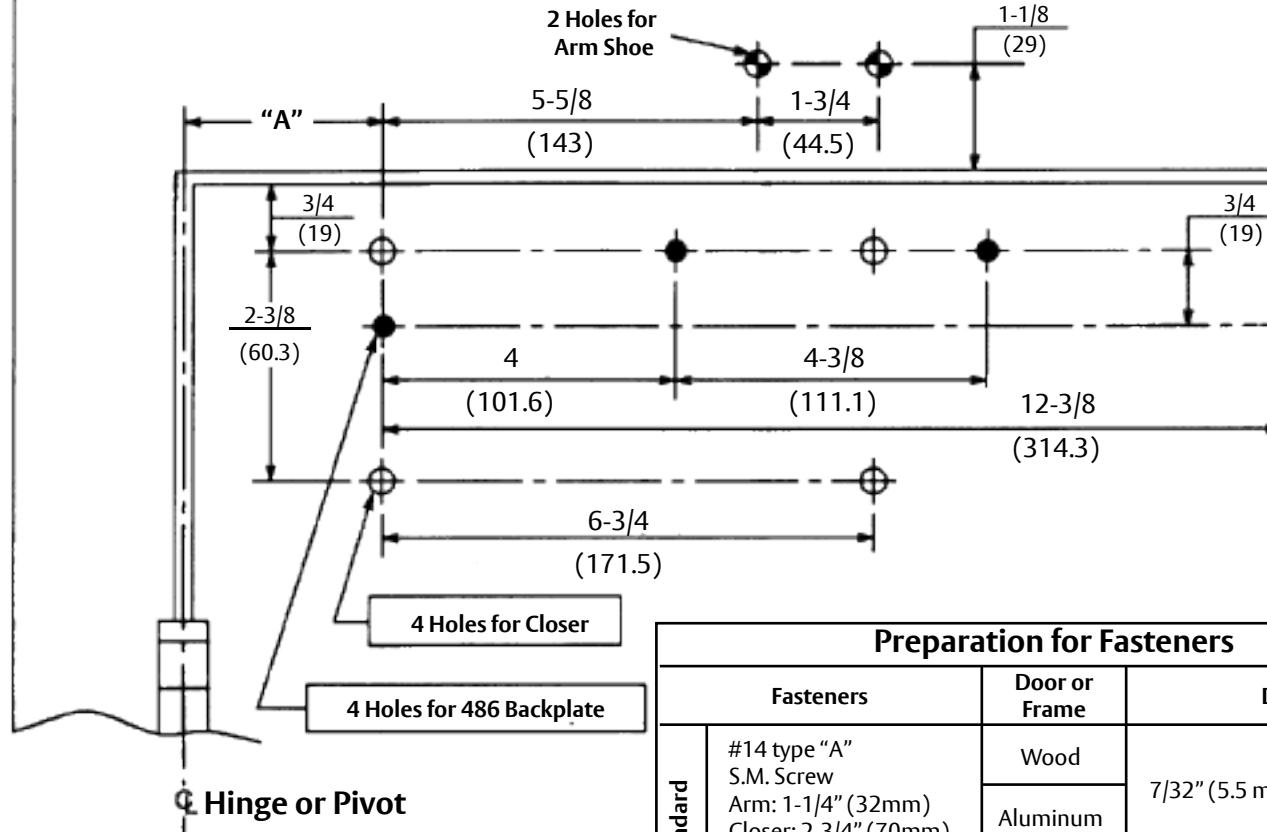

400 Series Door Closers-Sized 2 thru 6 4400 Series Door Closers-Multi-Size 1 to 6 With or Without 486 Backplate Regular Non-Hold Open Arm Application
Template Number: 7344-0101 Sheet: 1 of 1
