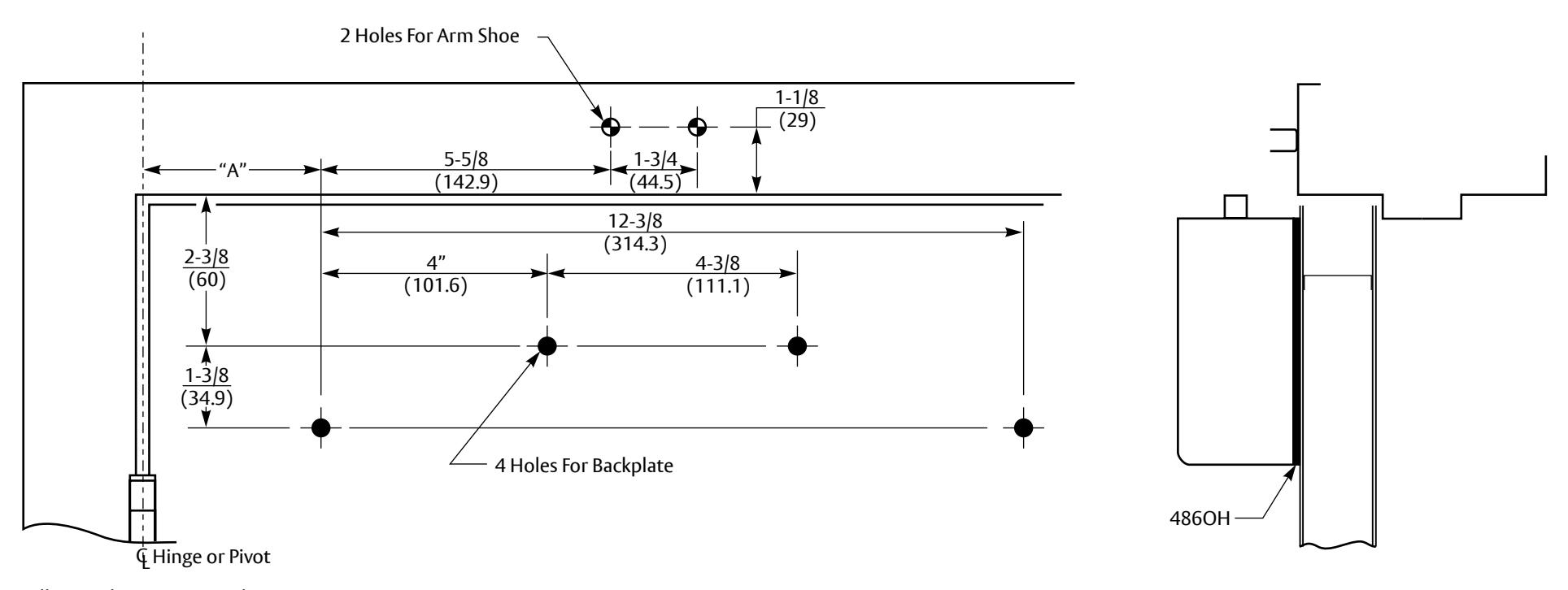

ASSA ABLOY ACCENTRA 4400 Series 4400 Door Closer Regular Non-Hold Open Arm with 486OH Plate Multi_7344-0111

7102-0005

Dimension "A" inches mm

7-5/8 6-5/8 4-5/8 4-1/8

Opening

120° to 150° 100° to 120°

150° to 180°

To 100°

Installer may have to counterbore backplate for sex-nut head clearance

NOTES:

• 1. Do not scale drawing.
• 2. Right hand door shown.
• 3. All dimensions given in inches (mm).

Door swing may be limited by door, frame, wall or hardware conditions (including closer projection). Caution:

Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.

Sex-bolts required for wood or plastic faced fire-door mounting.

Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2.66mm) unless otherwise noted.

Preparation for Fasteners
	Fasteners	Door or Frame	Drill Sizes
Standard	Self-Drilling screw	Aluminum or Metal	No drill required
		Wood (see Note)	Pilot hole required 3/16" (4.30 mm)
	1/4"-20 machine screw	Metal	Drill: #7 (0.201" dia.) Tap: 1/4"-20
Optional	Sleeve nuts and bolts	Hollow Metal	9/32" (7 mm) through; 3/8" (9.5 mm) door face opposite to closer
		Aluminum or Wood	3/8" (9.5 mm) through
	Through-bolts and grommet nuts	All	9/32" (7 mm); 3/8" (9.5 mm) dia. x 3/8" (9.5 mm) deep on door opposite to closer

Copyright © 2004, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

400 and 4400 Series Door Closers with 486OH Back Plate For Clearance of Overhead Stop / Stop and Holder Date: 12/23

Template Number: 7344-0111 Sheet: 1 of 1
