ASSA ABLOY ACCENTRA 4400, 4410, 4480 Door Closer Regular Non-Hold Open or Hold Open Arm or Low_7344-0149

Notes:

• 1. Do not scale drawing.
• 2. Hand of door as noted.
• 3. Dimensions are in inches (mm).
• 4. All dimensions from face of stop.
• Product application as charted only.
• Hollow metal doors require channel or box type reinforcement when thru bolt mount is specified.
• Sex bolts may be required for wood or plastic faced fire door mounting.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.

Caution: Door swing may be limited by door, frame, wall or hardware conditions (including closer projection).

Hold open arm door closers are not permitted to be used on a fire door.

Corner Bracket	Closer Series	Туре	Dimension A
			inches	mm.
498	400, 4400	Non-Hold Open Only	3/4	19
2498	400, 4400	Non-Hold Open	1-7/8	48
	2400, 4480	Non-Hold Open	2-3/8	60
	1400, 4410	Hold Open	1-3/4	44

Preparation for Fasteners
Fasteners	Door or Frame	Drill Sizes
#14 x 1-1/4" (32mm) type "A" S.M. Screw (Standard)	Wood	7/32" (5.5mm)
	Aluminum
1/4-20 Machine Screw (Standard)	Metal	drill: #7 (.201") tap: 1/4-20
Sex nuts and bolts	Hollow Metal	9/32" (7.00mm) thru; 3/8" (9.50mm) door face opposite to closer
(Optional)	Aluminum or Wood	3/8" (9.50mm) thru
Thru bolts and grommet nuts (Optional)		9/32" (7.00mm) thru; 3/8" (9.50mm) dia. x 3/8" (10mm) deep door face opposite to closer

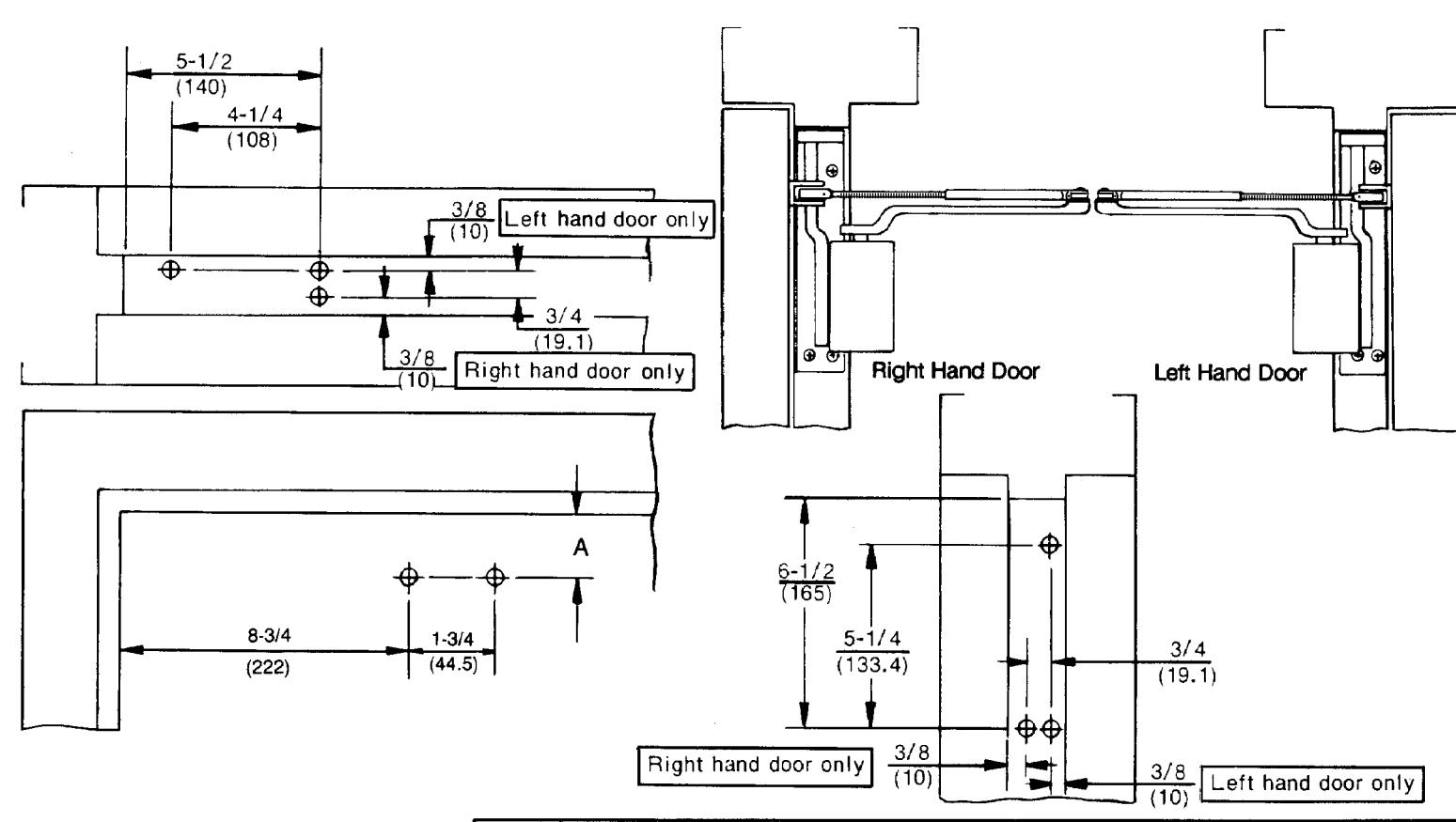

400, 1400, 2400, 4400, 4410 and 4480 Series Door Closers With 498 or 2498 Corner Bracket Corner Bracket Installation with Non-Hold Open or Hold Open Arm

Yale^®

An ASSA ABLOY Group brand

www.yalecommercial.com

TEMPLATE NUMBER 7344-0149

03-08
