4300LN Series

Grade 2 Tubular Lever Locks

Table of Contents

Contents

Benefits & Features3
How to Order4
Finishes5
Lever Trim6
Functions	7
Cylinders 8
Latchbolts9
Strikes	10
Sample Specification11
Technical Specifications & Listings	12

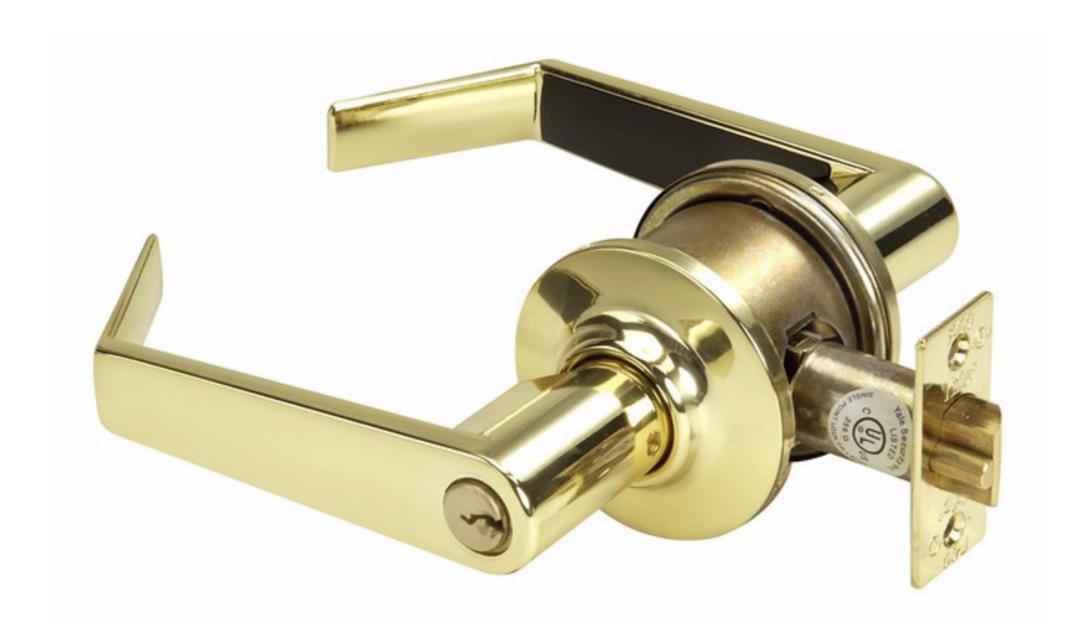

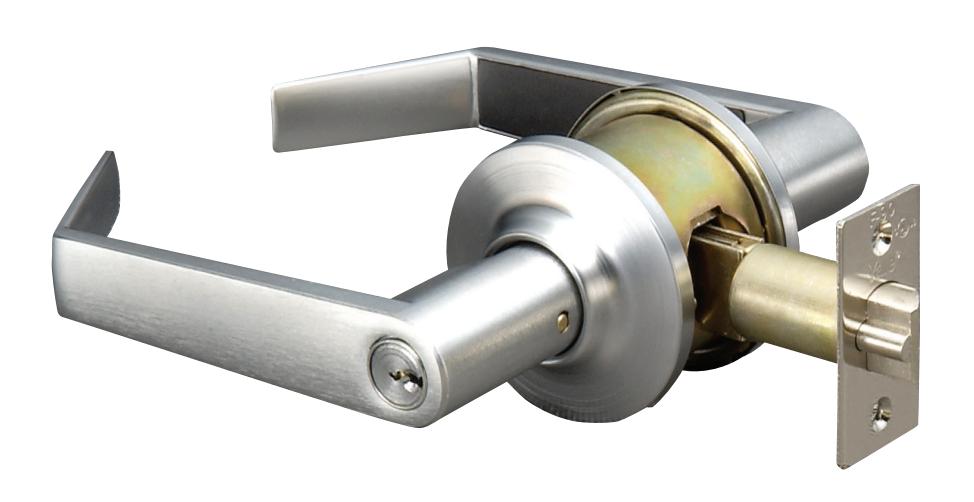

4300LN Series Tubular Lever Locks

An economical, light/medium duty Grade 2 lever lockset which provides an outstanding combination of value and performance. It's the ideal lever lockset for light commercial and heavy-duty residential applications, such as interior offices, closets, multi-family applications and more.

• Interior offices
• Closets
• Multi-family housing
• Hotels
• Restaurants
• Retail complexes

Benefits & Features

Benefits Features

• Aesthetic: Chassis mounting screws only visible accessible when levers and roses are removed
• Versatile: Range of functions and options offer an ideal solution for a variety of commercial applications
• Easy installation: Lockset and latchbolts reversible for ease of installation
• Reliable: Quality security from a brand trusted for over 170 years

• Multiple key systems available for flexibility in keying
• Available in 4 lever designs, 7 functions and 7 standard finishes
• ANSI/BHMA Certified Grade 2
• ADA compliant for ease of accessibility

Specifications

Backset	2-3/8" or 2-3/4" available
Door Thickness	Adjustable for doors 1-3/8" to 1-3/4"
Handing	Must be specified for Madrid design only. Other designs are non-handed.
Latchbolt	280DN with 1/2" projection supplied standard for all functions, see page 9 for additional options.
Strike	271 T-strike standard, see page 10 for additional options.
ANSI/BHMA	Certified ANSI/BHMA A156.2, Series 4000 Grade 2.
UL/cUL	Listed for use on fire doors for up to 90 minutes.
Warranty	1 year

How to Order

Design	Function	Hand	Latch	Strike	Cylinder	Door Thickness	Finish
AU - Augusta	See Page 7	RH LH	280DN supplied standard, see page	291 T-strike supplied standard,	See Page 8	1-3/8" to 1-3/4" standard	605 - Bright Brass, Clear Coated
MA - Madrid MO - Monroe			9 for additional options	see page 10 for additional options			606 - Satin Brass, Clear Coated
PB - Pacific Beach							613 - Dark Oxidized Satin Bronze, Oil Rubbed
							619 - Satin Nickel Plated, Clear Coated
							625 - Bright Chrome Plated
							626 - Satin Chrome Plated

Ordering Example

Quantity	Design	Function	Hand	Latch	Strike	Cylinder	Door Thickness	Finish
100	AU	4307LN	RH	280N	271	1812	1-3/4"	626

Packing

Each box has a strike, firecup, paper template, combination wood and machine screws and easy-to-follow instructions. Cylinder functions supplied with two keys. Twelve shelf boxes to a case.

Finishes

	ANSI/BHMA Code Finish Description
605 Bright Brass, Clear Coated	606 Satin Brass, Clear Coated	613* Dark Oxidized Satin Bronze, Oil Rubbed
619 Satin Nickel Plated, Clear Coated	625 Bright Chrome Plated	626 Satin Chrome Plated

^* Simulated painted finish meeting ANSI/BHMA standards for wear and durability.

Split Finishes

605x625, 605x626, 606x625 and 606x626 are available in 4302LN Privacy function only.

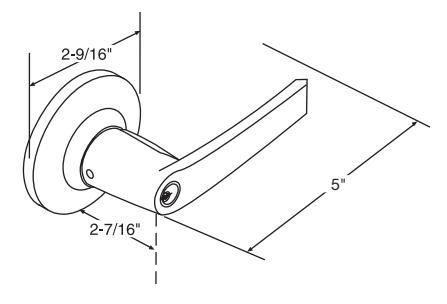

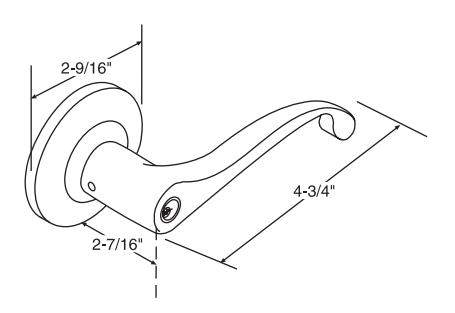

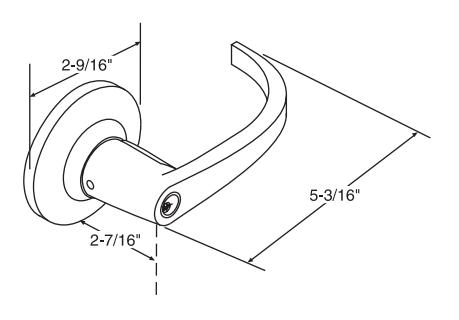

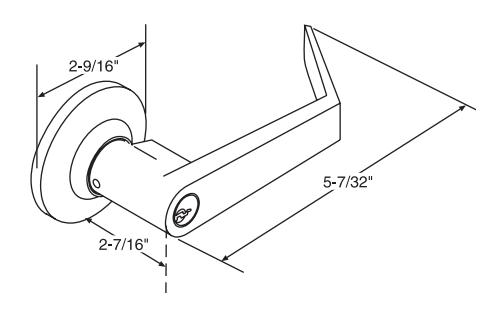

Lever Trim

Augusta AU

Lever: Cast Zinc

Rose: Cold Forged Brass

Madrid MA

Lever: Cast Zinc

Rose: Cold Forged Brass

Monroe MO

Lever: Cast Zinc

Rose: Cold Forged Brass

Pacific Beach PB

Lever: Cast Zinc

Rose: Cold Forged Brass

Functions

4301LN (F75) 4302LN (F76B) 4305LN (F86) 4307LN (F109) Passage or Closet Latch • For doors that do not require locking. • Either lever operates latchbolt at all times. Privacy, Bedroom or Bath Lock • For lavatory or other privacy doors. • Either lever operates latchbolt unless outside lever is locked by pushbutton inside. • Button automatically releases when inside lever is turned, but does not automatically release when door is closed. • Emergency release in outside lever. • Inside lever always active. Storeroom or Closet Lock • For use on storeroom, utility, exit doors. • Deadlocking latchbolt. • Latchbolt operated by lever inside, key in outside lever. • Outside lever always locked. Key unlocks lever. Lever retracts latchbolt. Entry Lock • For entrance, general home or office doors. • Deadlocking latchbolt. • Either lever operates latchbolt (except when outside lever is locked from inside). • Outside lever retained in locked position by rotating turn button 90° to a horizontal position; not released until turn button is manually returned to the vertical position. • Key outside unlocks turn button inside. • Latchbolt is operated by rotating inside lever. • Inside lever always active. 4308LN (F84) 4328LN (F111) 4355LN Classroom Lock • For classroom or utility room doors. Communicating Passage Lock • For twin communicating or exit doors where one side operation Dummy Trim • Lever acts as pull only; no operation.

• Deadlocking latchbolt.
• Either lever operates latchbolt (except when outside lever is locked by key).
• Inside lever always active.

• is required.
• Also when space is limited between door and switch panel.
• Deadlocking latchbolt.
• One lever operation.
• Blank rose.
• Should be used only where rooms have more than one entrance.

Cylinders

Cylinder Options

The following selection guide indicates the correct cylinder for each locking segment.

	Lockset Series:				Types of Cylinder Mechanisms
	4300LN	Conventional			Protected Keyway	Security			High Security
	Fixed Core	6-pin	7-pin	6-pin	7-pin	6-pin	7-pin	6-pin	7-pin
	Key-In-Lever	1812	N/A	K404	N/A	5812	N/A	N/A	N/A
Cylinder Types	Interchangeable Core
	LFIC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
	SFIC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A

Refer to Yale® KeyMark® and/or Cylinders and Keys Catalog sections for all details and how-to-order examples.

Yale® KeyMark®

For those applications requiring protected key control, Yale® KeyMark® cylinders guard against unauthorized key duplication. The Yale KeyMark Security Leg® keyway feature increases resistance against picking and impressioning and can easily retrofit into existing systems. For further details and availability, refer to the separate Yale KeyMark catalog.

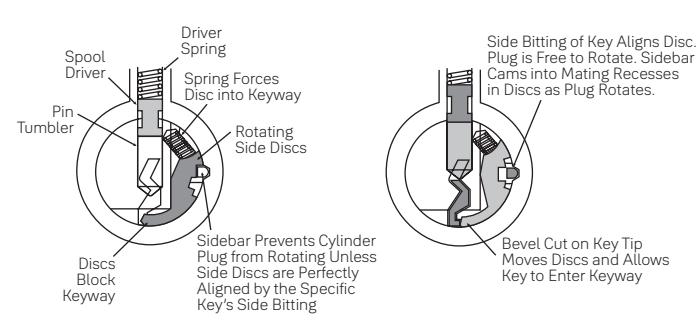

Security Cylinders

Security cylinders contain two independent locking mechanisms. The first is a traditional 6- or 7-pin tumbler mechanism with spool drivers for greatly increased picking resistance.

The second is an innovative 5-tumbler rotating disc mechanism with sidebar engagement. The rotating discs are spring loaded and block the bottom of the keyway.

Illustration

Other Manufacturers' Keyway Cylinders

Illustration	Description	Model Number	Number of Pins
	Schlage® C Keyway Cylinder. Available "0" bitted or keyed random.	2812	6

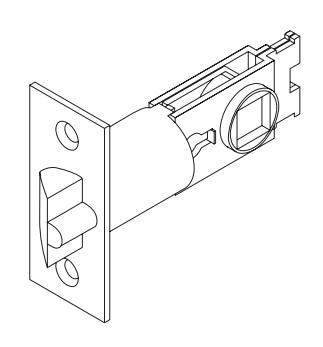

Latchbolts

UL Latches

Model No. 280DN supplied standard with all 4300LN series locksets. Model No. 280DN latchbolt has a 2-1/4" x 1-1/8" front with a 2-3/4" backset and a 1/2" bolt throw. Optional latchbolts available to special order.

Model No.	Front	Backset	Throw	Front Width	Latch Diameter
280N	Square	2-3/8" (60mm)	1/2" (13mm)	1" (25mm)	7/8" (22mm)
280RN	Round	2-3/8" (60mm)	1/2" (13mm)	1" (25mm)	7/8" (22mm)
280DN	Square	2-3/4" (70mm)	1/2" (13mm)	1-1/8" (29mm)	7/8" (22mm)

All 4300LN latches are deadlocking with a flat, square corner front. Note: Locksets in 605, and 606 finish are supplied with a 605 latch. Locksets in 613 finish are supplied with a 613 latch. Locksets in 619, 625, and 626 finish are supplied with a 626 latch.

All latches have a 7/8" diameter. A 1/8" sleeve (p/n 14-0378-9001-999) is included to accommodate 1" door preps.

UL Fire Cup

Model Number: 10C

Supplied Standard with all 4300LN's. Failure to use invalidates UL fire listing.

Screw Pack

Model Number: SP100

Supplied Standard with wood-machine screws combination.

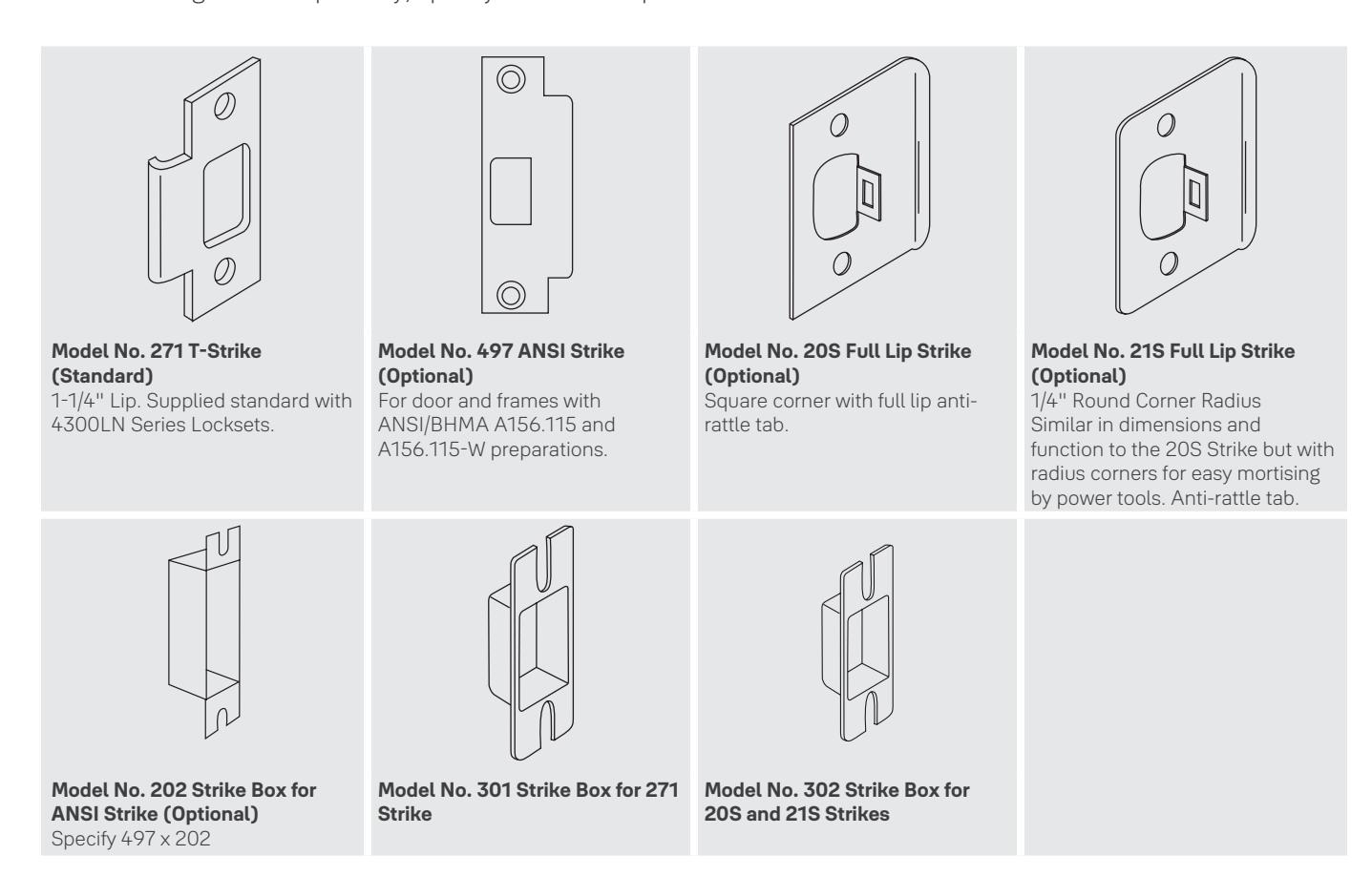

Strikes

Yale® 4300LN locks are available with a variety of strike options. All strikes are located on the same vertical and horizontal center lines as the latchbolt. Some strikes are available in a variety of lip lengths to accommodate varying thickness of doors and frames. To determine the proper length of the lip, measure from the center line of the strike to the edge of the jamb, accounting for any interfering trim (i.e. wood molding) and then add 1/4" (6mm) for curved lip. All strikes are reversible. Strikes are fabricated of either brass or stainless steel, depending on the lockset trim finish. When ordering strikes separately, specify the finish required.

Attaching Screws

For Model Nos. 271, 20S, and 21S Strikes

#8-8-32 x 3/4" (19mm) Phillips/flat head combination wood and machine screws. Part No. SP100

For Model No. 497 ANSI Strike

#12-12-24 x 1" Phillips/flat head combination wood and machine screws. Part No. 81-2012-0620

Sample Specification

All locksets shall be 4300LN Series Grade 2 tubular lever locksets.

Locks shall have an interlocking tubular chassis and latchbolt. Chassis mounting screws shall be accessible only when the levers and roses are removed.

The latchbolt shall have a 1/2" (13mm) throw and shall include a deadlocking feature to inhibit manipulation when the door is locked.

Locksets and latchbolts shall be reversible for ease of installation.

All locksets shall be adjustable for 1-3/8" (35mm) and 1-3/4" (44mm) door thickness. Levers shall operate independently and shall have inside and outside lever return springs to prevent lever sag.

Lever handles shall be a minimum of 4-3/4" (121mm) in length and shall provide a minimum of 2-1/8" (54mm) clearance from surface of door to the inside of the lever at the midpoint.

Outside levers on keyed locksets shall be removable only when the designated key is in the cylinder.

Locksets shall be furnished with two keys. All cylinder plugs shall be brass and furnished with 6-pin chambers for master keying capabilities.

Cylinders shall be easily changed by removing the lever without disassembling the lockset.

Certification:

UL 1-1/2 Hour Fire Rating ANSI/BHMA A156.2 Series 4000, Grade 2 ANSI A117.1 Accessibility Code

All locksets shall carry a one-year warranty.

Technical Specifications and Listings

ADA

The 4300LN Series meets accessibility guidelines of the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility Standards and ANSI 117.1, all requiring ease of accessibility for the handicapped.

Handing

RH or LH must be specified on Madrid 4305LN, 4308LN, 4328LN, and 4355LN.

4301LN, 4302LN and 4307LN are furnished as RH. They can be changed to LH by reversing inside and outside levers.

ANSI/BHMA

Certified ANSI/BHMA A156.2, Series 4000 Grade 2.

Installation

The 4300LN Series is available with 2-3/8" or 2-3/4" deadlocking latchbolt. Backset

4300LN Series tubular locksets conform to ANSI/BHMA Specifications A156.115 which cover hardware preparations for steel doors and steel frames and A156.115-W which cover hardware preparations for wood doors with wood or steel frames.

Cylinders

Furnished standard with Yale® 1812 6-pin cylinder. Optional Yale® KeyMark® fixed core.

Latches

1/2" bolt projection.

Door Thickness

Locksets are adjustable for doors 1-3/8" to 1-3/4".

Strikes

T-strike standard (2-3/4" x 1-1/8"). Also available in ANSI and full lip configurations.

Fire Listings

4300 Series locksets (including fire cup) are UL listed for use on fire doors for up to 90 minutes.

Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Yale Locks & Hardware makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new firerated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Warranty

The 4300LN Series tubular lever lock carries a one-year warranty.
