4300/4300LN SERIES
Locks |
||
|---|---|---|
| Backset | Latch No. |
Latch
Front |
|
2-3/8
(60) |

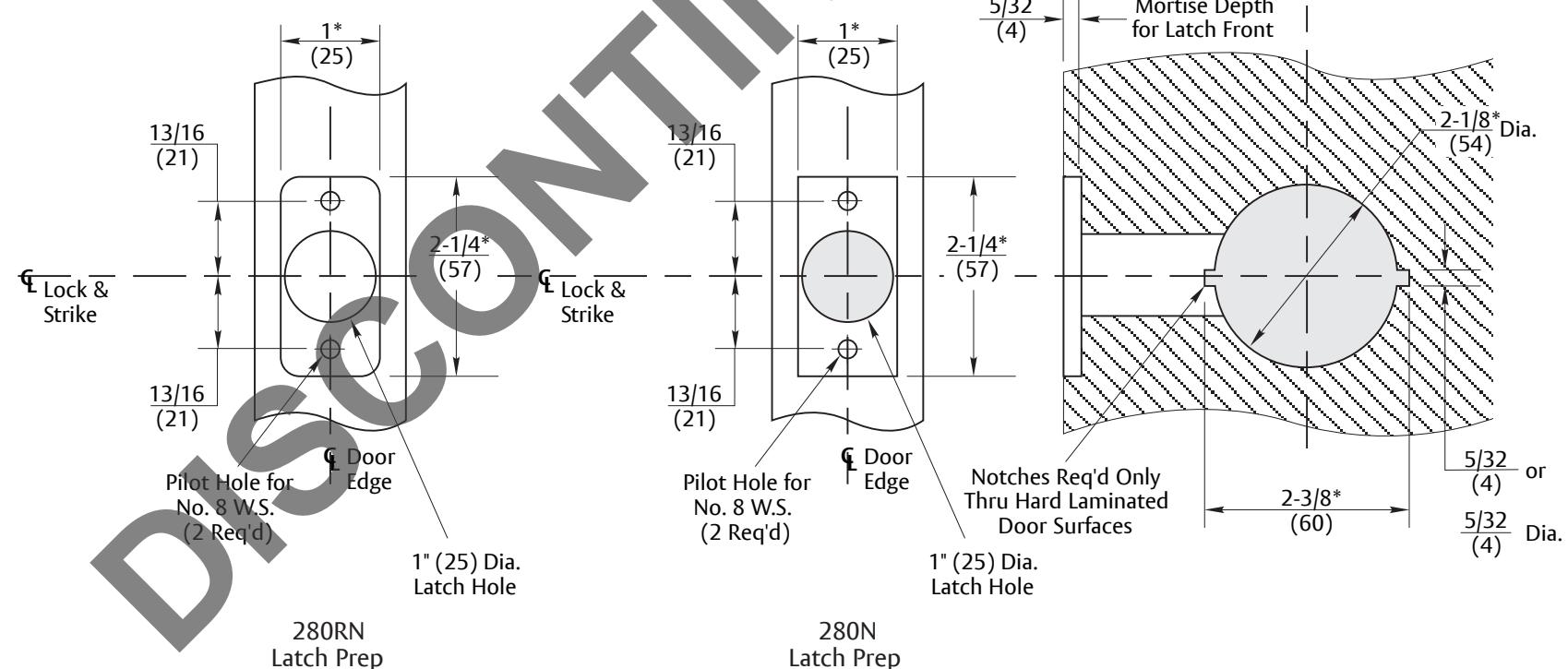

280N |
Square
Corner |
|
2-3/8
(60) |
280RN |
1/4" Rad.
Corner |
Notes:
- 1. When 4-7/8" (123.8) Strike is specified, refer to No. 497 Strike, Template No. 7102-0003.
- 2. When T- Strike is specified, refer to No. 271 Strike, Template 7102-0005.
- 3. When Full Lip Strike is specified, refer to No. 20S or 21S Strike, Template 7102-0006.
- 4. Dimensions marked with * have tolerances of +1/32, -0.
- 5. All dimensions given in inches (mm).
Experience a safer and more open world
Copyright © 2008, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

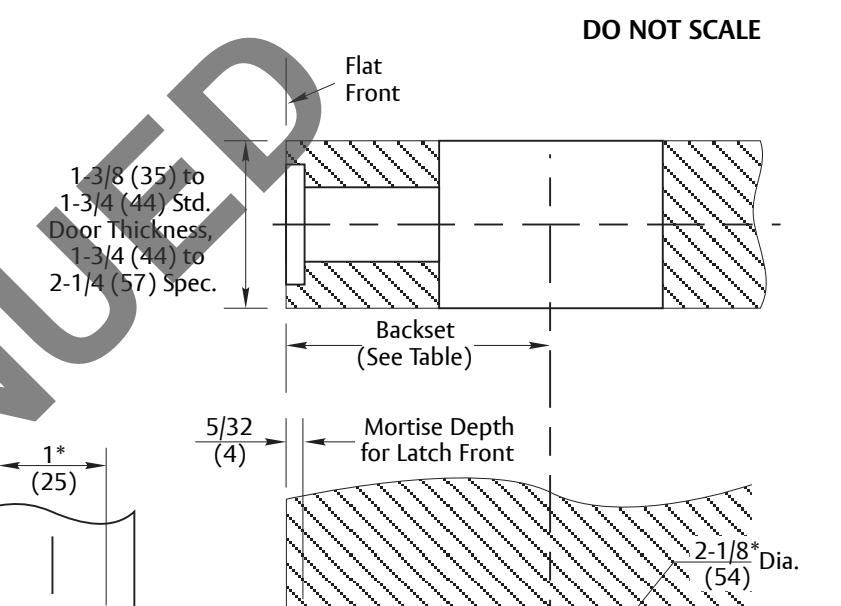

4300/4300LN Series Tubular Locks - 1" Wide Flat Front Wood Door Preparation (See ANSI/BHMA A156.115) 2-3/8" Backset
Template Number: 7150-0070
Sheet: 1 of 1
Date: 12/23
