ASSA ABLOY ACCENTRA 4300 and 4300LN Series Cylindrical Locks 2-3, 8 Backset 1 Wide Flat Front H.M. Door Templat…_7150-0069
Open the original PDF document
View PDF|
4300/4300LN SERIES
Locks |
|
|---|---|
| Backset | Latch No. |
|
2-3/8
(60) |
280N |
Notes:
- 1. When 4-7/8" (123.8) Strike is specified, refer to No. 497 Strike, Template No. 7102-0003.
- 2. When T- Strike is specified, refer to No. 271 Strike, Template 7102-0005.
- 3. Dimensions marked with * have tolerances of +.015, -.000
- 4. All dimensions given in inches (mm).
Experience a safer and more open world
Copyright © 2008, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

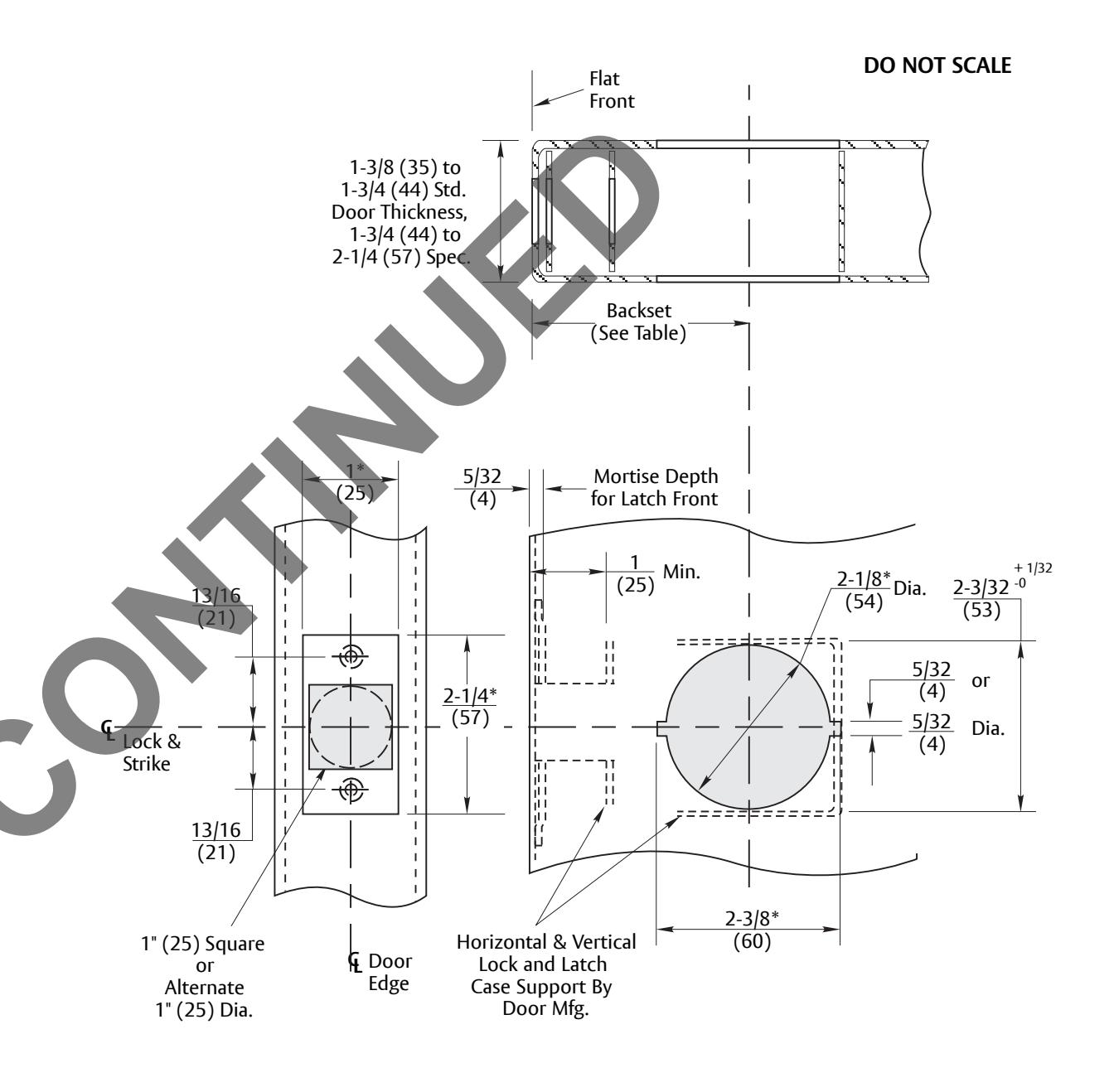

4300/4300LN Series Tubular Locks - 1" Wide Flat Front H.M. Door Preparation (See ANSI/BHMA A156.115) 2-3/8" Backset
Template Number: 7150-0069
Sheet: 1 of 1
