ASSA ABLOY ACCENTRA 4300 and 4300LN Series Cylindrical Locks 2-3, 4 Backset 1-1, 8 Wide Front Wood_7150-0072
Open the original PDF document
View PDF|
4300/4300LN SERIES
Locks |
|
|---|---|
| Backset | Latch No. |
|
2-3/4
(70) |
280DN |
Notes:
- 1. When ANSI A115.2 (Fig. 1) Strike is specified, refer to No. 497 Strike, Template No. 7102-0003.
- When ANSI A115.2 (Fig. 2) Strike is specified, refer to No. 271 Strike, Template 7102-0005.
- 3. When Full Lip Strike is specified refer to No. 20S or 21S Strike, Template 7102-0006.
- 4. Dimensions marked with * have tolerances of +1/32, -0.
- 5. All dimensions given in inches (mm).
Experience a safer and more open world
Copyright © 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

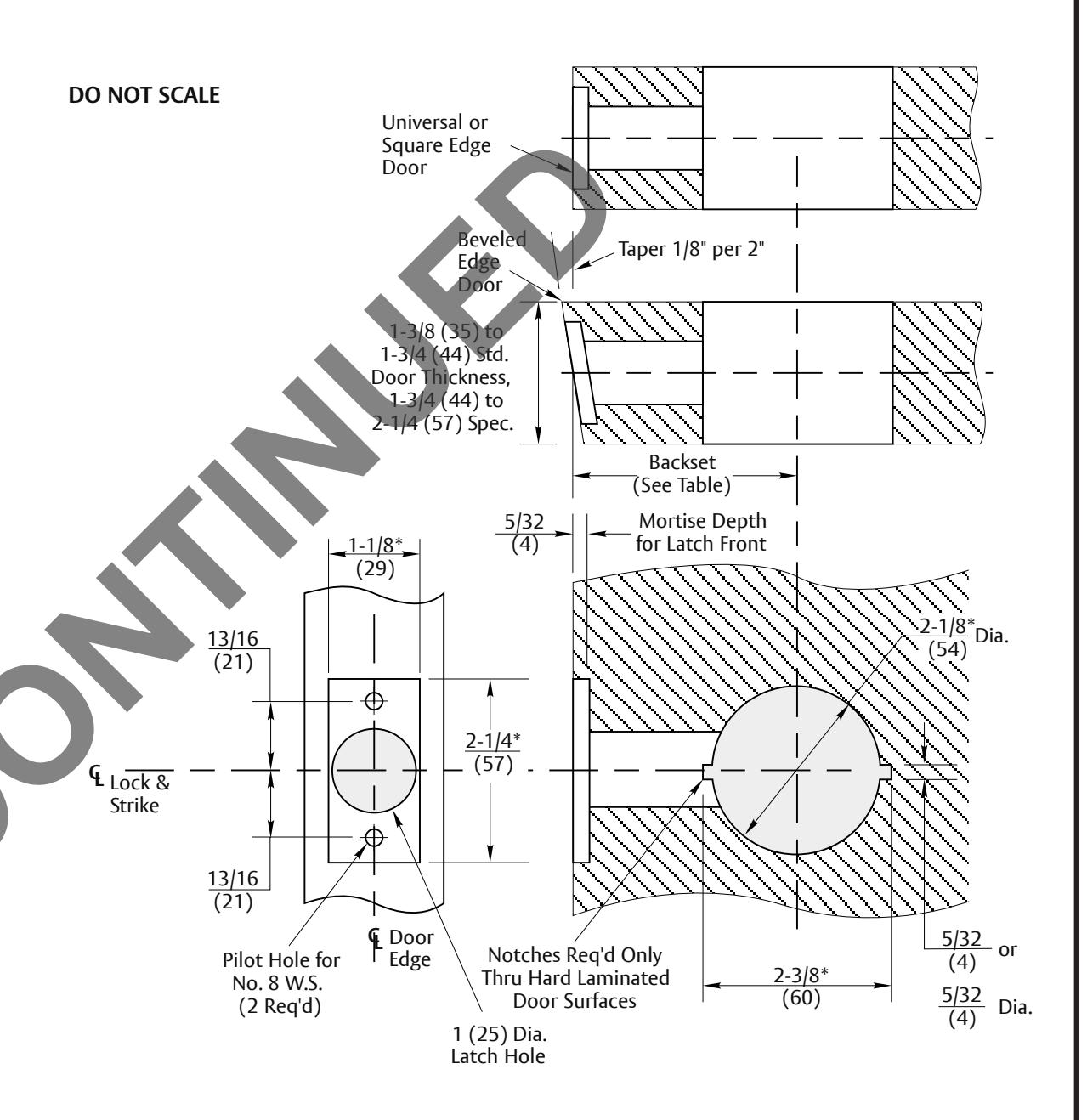

4300/4300LN Series Tubular Locks - 1-1/8" Wide Front Wood Door Preparation (ANSI A115.2) (FIG. 1) 2-3/4" and Backset
Template Number: 7150-0072
Sheet: 1 of 1
Date: 12/23
