ASSA ABLOY ACCENTRA 4300 and 4300LN Series Cylindrical Locks 2-3, 4 Backset 1-1, 8 Wide Front H.M. Door Template_7150-0071

	4300/4300LN SERIES Locks
Backset	Latch No.
2-3/4 (70)	280DN

Notes:

• 1. When ANSI A115.2 (Fig. 1) Strike is specified, refer to No. 497 Strike, Template No. 7102-0003.
• 2. When ANSI A115.2 (Fig. 2) Strike is specified, refer to No. 271 Strike, Template 7102-0005.
• 3. Dimensions marked with * have tolerances of +.015, -.000
• 4. All dimensions given in inches (mm).

Experience a safer and more open world

$Copyright\; \backslash \; @\backslash \; 2023,\backslash \; ASSA\backslash \; ABLOY\backslash \; Access\; \backslash \; and\backslash \; Egress\backslash \; Hardware\backslash \; Group,\backslash \; Inc.\backslash \; All\backslash \; rights\backslash \; reserved.\backslash \; Reproduction\backslash \; in\backslash \; whole\backslash \; or\backslash \; in\backslash \; part\backslash \; without\backslash \; the\backslash \; express\backslash \; written\backslash \; permission\backslash \; of\backslash \; ASSA\backslash \; ABLOY\backslash \; Access\backslash \; and\backslash \; Egress\backslash \; Hardware\backslash \; Group,\backslash \; Inc.\backslash \; is\backslash \; prohibited.$

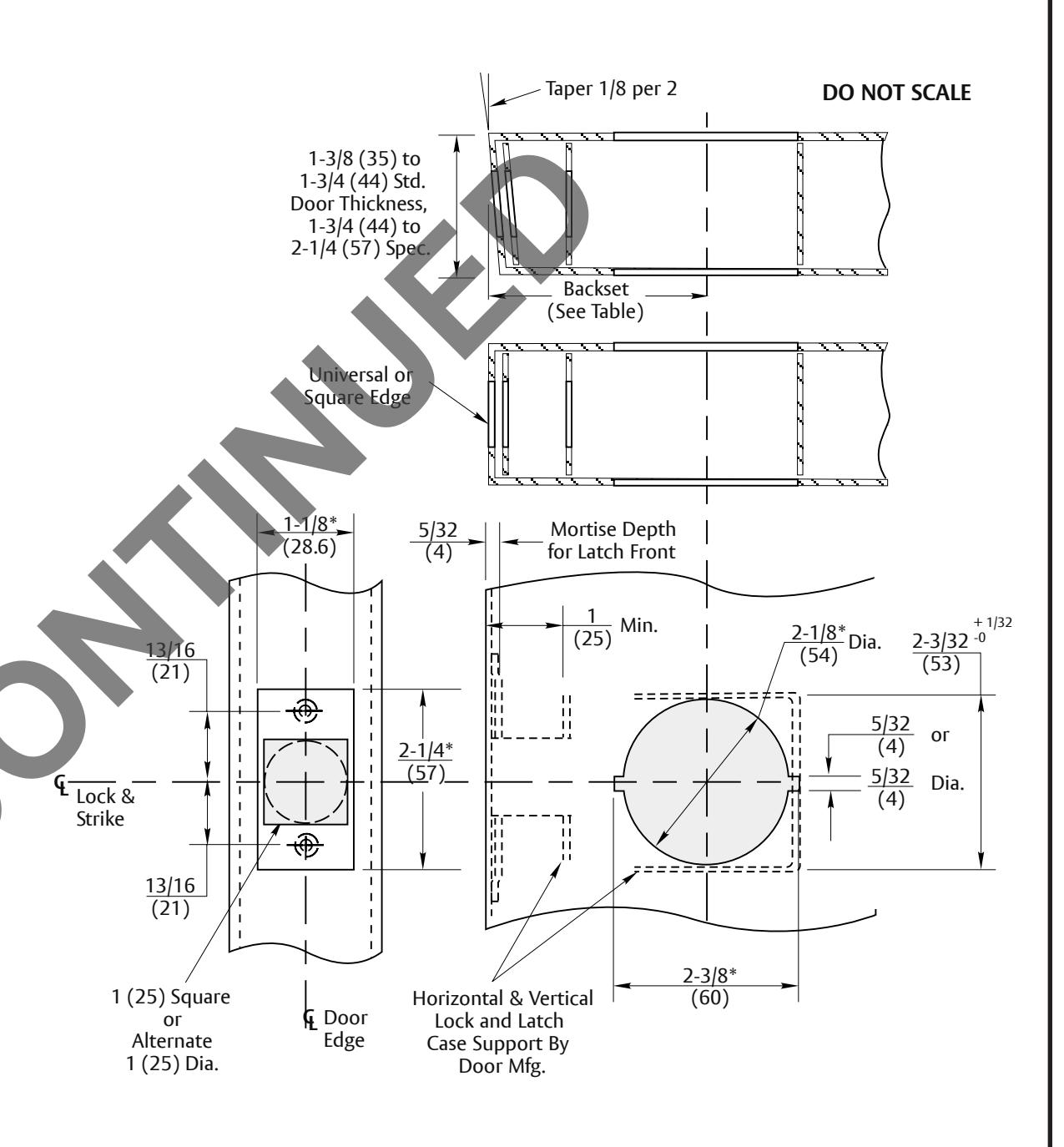

4300/4300LN Series Tubular Locks - 1-1/8" Wide Front H.M. Door Preparation (ANSI A115.2) (FIG. 1) 2-3/4" Backset

Template Number: 7150-0071

Sheet: 1 of 1

Date: 12/23
