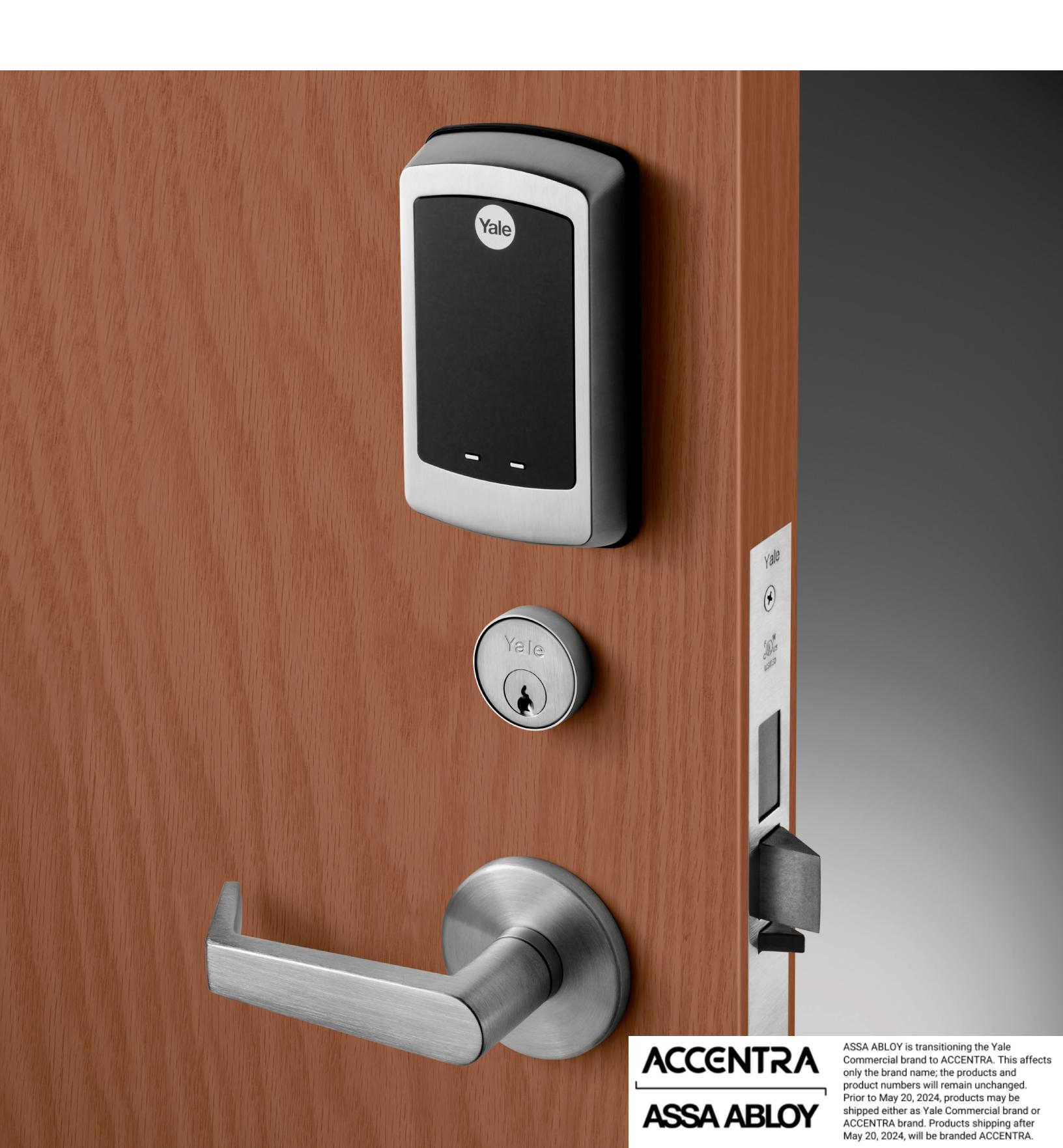

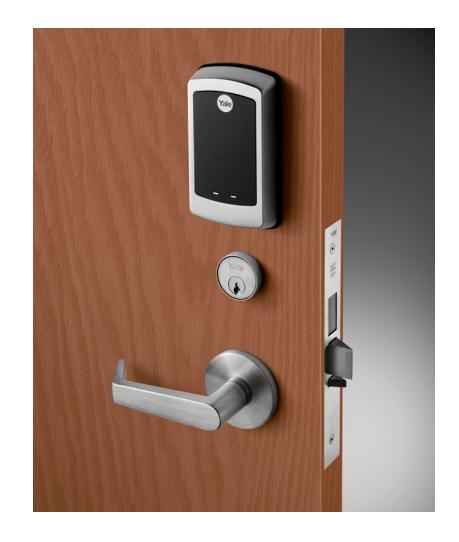

Sectional Mortise Keypad Lock

Yale® nexTouch®

Sectional Mortise Keypad Lock

Technical Specifications

Door Specifications: Fits into the standard mortise door prep

Backset: 2-3/4" (70mm) standard backset

Door Thickness: 1-3/4" (44mm) door thickness standard; please specify for other

door thicknesses

Handing: Field reversible

Latchbolt: 3/4" spring latchbolt standard, 1" throw deadlocking latchbolt optional

Strike: Curved lip strike with 1-1/4" (32 mm) lip length standard

Cylinder: Accepts conventional, interchangeable core, security and high security

cylinders, and other manufacturers' keyway cylinders

ANSI/BHMA: Certified ANSI/BHMA Grade 1

UL/cUL: Functions are UL - cUL Fire Listed for use on fire doors having a rating up to

and including 3-hours

Warranty: 3-year electronic and mechanical, 1-year finish

Environmental Specifications: Operating temperature: -40°F to +140°F (-40°C to

+60°C) at 95% relative humidity when used with an external power supply

Power Source: 4 AA alkaline batteries (included) with optional hardwire input f or

9VDC external power; 9V battery power backup on keypad

Interface: Capacitive touchscreen or pushbutton keypad

User Codes: Up to 500 unique user codes

Finishes

ANSI/BHMA Code	Finish Description
605 (US3)	Bright Brass, Clear Coated
613E (US10BE)	Dark Oxidized Satin Bronze - equivalent
626 (US26D)	Satin Chrome Plated
BSP	Black Suede Powder Coat

Levers

ARCADIA ARR

AUGUSTA AUR

CARMEL CRR

JEFFERSON JNR

MONROE MOR

PACIFIC BEACH PBR

PINEHURST PNR

VIRGINIA VNR
