ASSA ABLOY ACCENTRA 428F Trim for 1800(F), 2100(F), and 6100ED(F) Series Wide Stile Rim, SquareBolt_7400-1428

NOTES:

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. Provide adequate structural support to maintain door integrity during operation.
• 6. Prepare mounting holes when installing trim.
• 7. Dimensions given about a centerline are symmetrical.
• 8. For dummy trim, center hole from inside face may be omitted.between lock mortise and electric hinge.

Note: Lever design prefix does not affect door prep.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

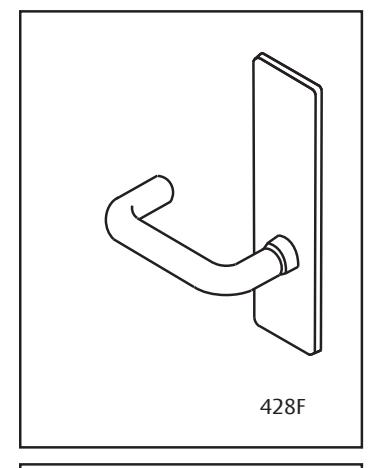

428F Trim

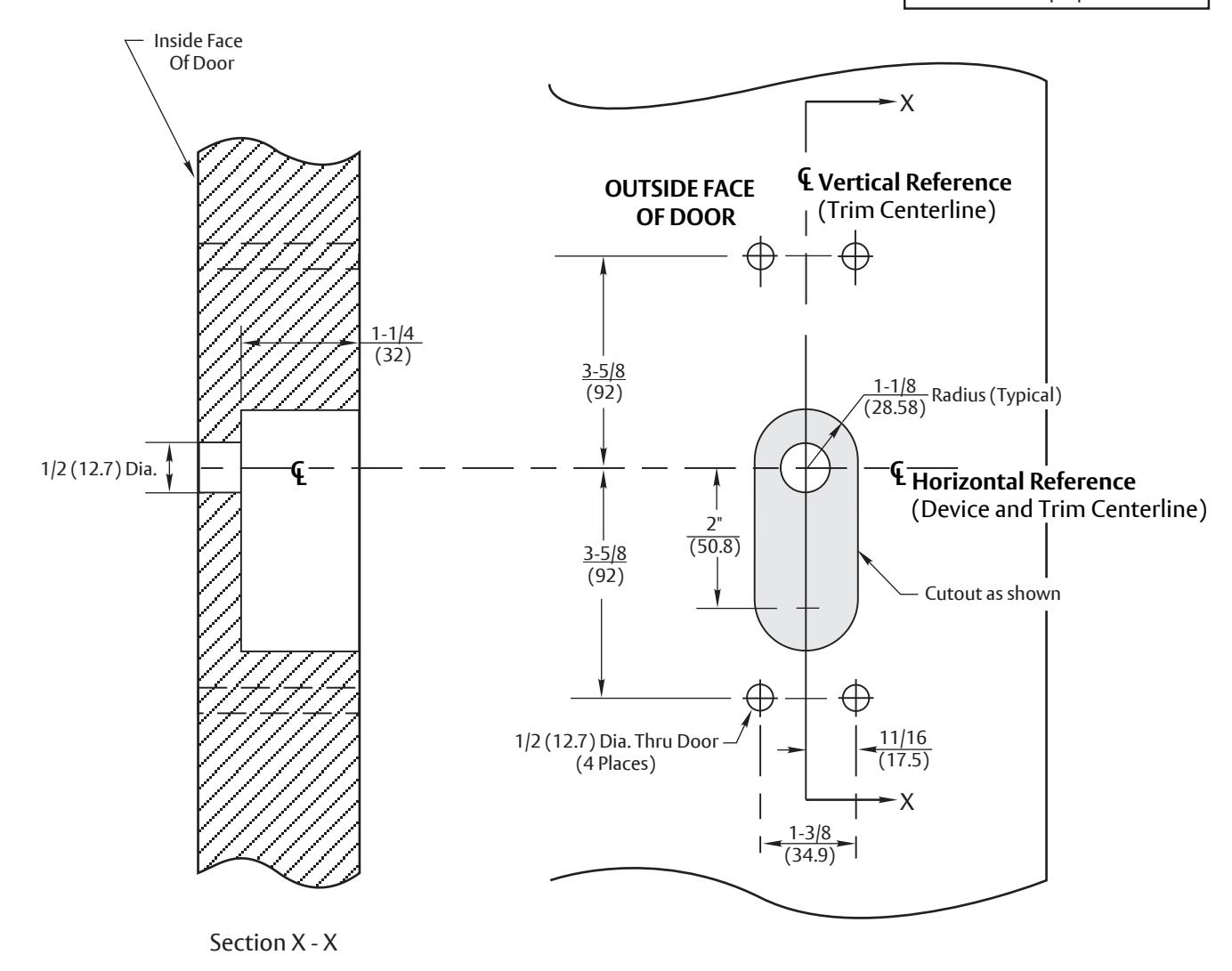

With 1800(F), 6100(F) or 6170(F) Series Rim and Vertical Rod Exit Devices Wood Door Preparation Contact us for support at 1-855-557-5078.

ASSA ABLOY

SUPERSEDES 06/15 DO NOT SCALE DRAWING TEMPLATE NUMBER 7400-1428 DATE 12-23
