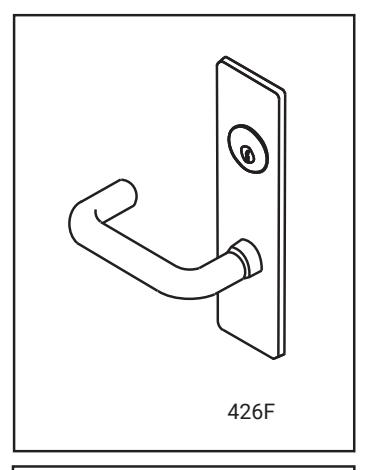

ASSA ABLOY ACCENTRA 426F Trim for 1800(F), 2100(F), and 6100ED(F) Series Wide Stile Rim, SquareBolt_7400-0426

Notes:

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown preparation is typical for both door hands.
• 5. For door reinforcement see template 7400-0000.
• 6. Prepare mounting holes when installing trim.
• 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.
• 8. Dimensions given about a centerline are symmetrical.
• 9. Unspecified radii 1/8 (3) maximum.

Note: Lever design prefix does not affect door prep.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

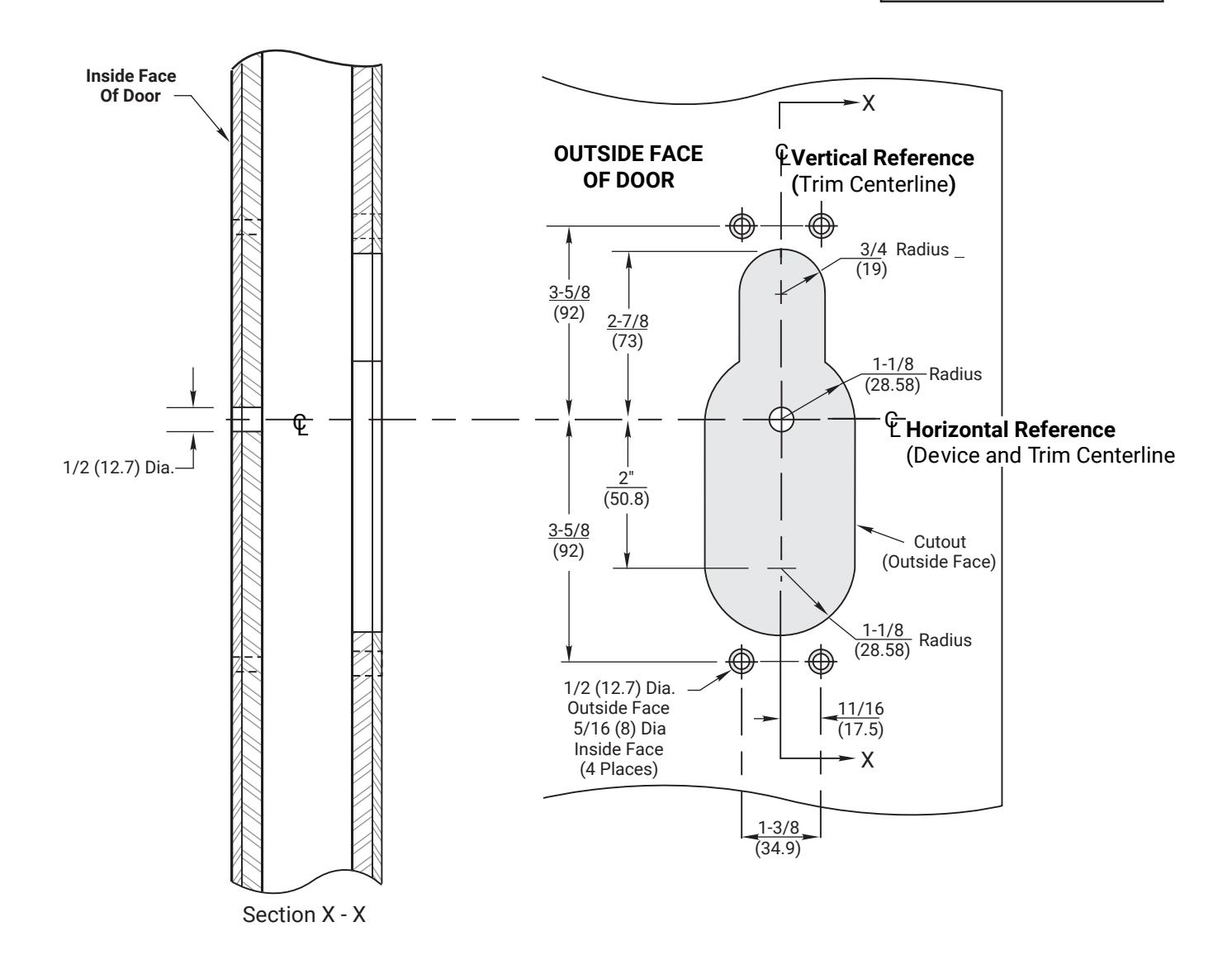

426F Trim With 1800(F), 6100(F) or 6170(F) Series Rim and Vertical Rod Exit Devices Metal Door Preparation

1-855-557-5078 Ext. 2 www.accentra-assaabloy.com

Copyright ©2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

7400-0426 02/24

SUPERSEDES DO NOT SCALE DRAWING

7400-0426 TEMPLATE NUMBER SHEET 1 of 1

DATE 04/24
